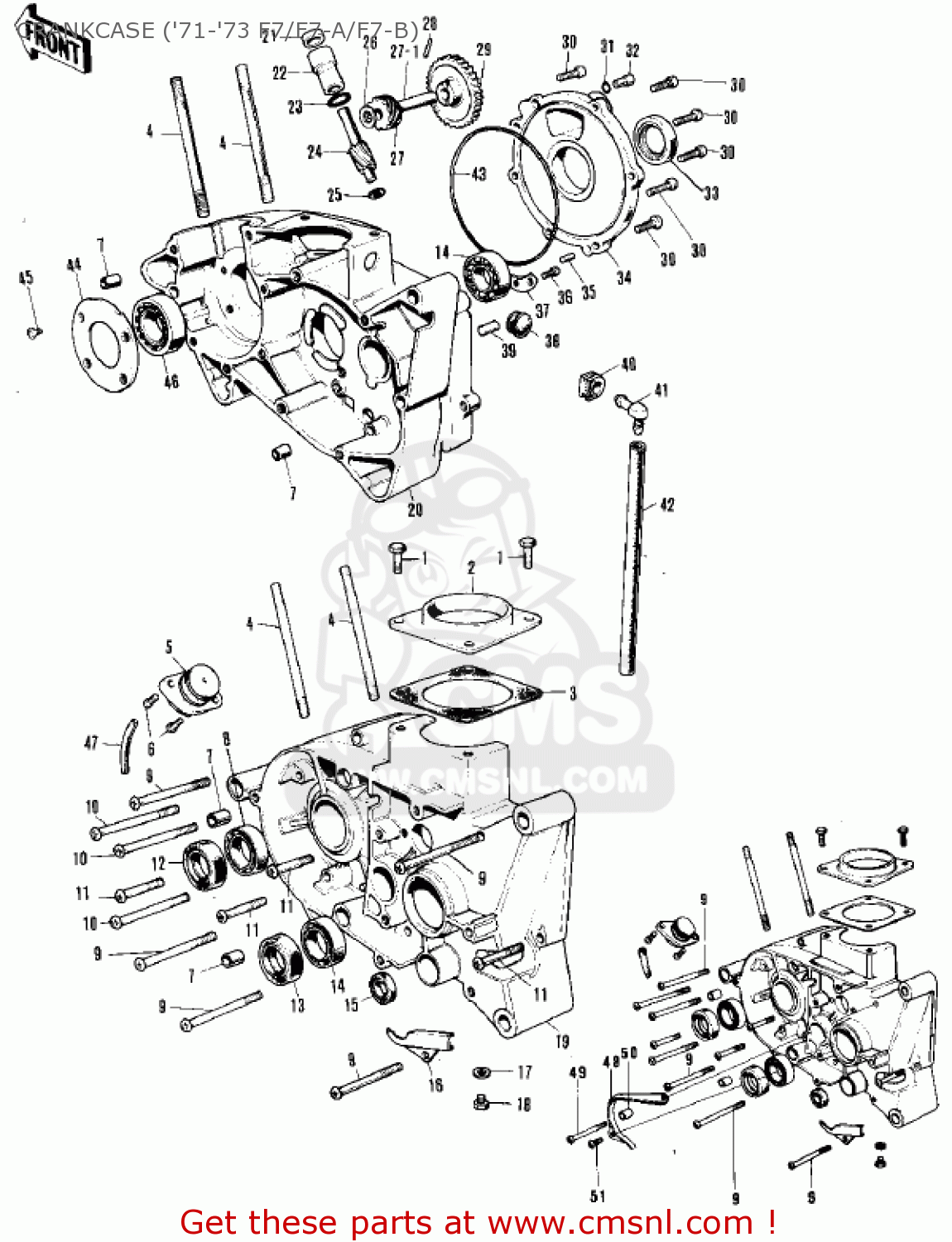

CRANKCASE ('71-'73 F7/F7-A/F7-B)

ref

part #

description

quantity

1

112G0620
ref: 1

BOLT 6X20

€ 1.00

2

11015022
ref: 2

INLET PIPE

€ 6.50

3

11017006
ref: 3

GASKET-INLET PIPE (NAS)

€ 7.00

4

172G0870
ref: 4

STUD,8X70

€ 3.50

5

16137002
ref: 5

PUMP,FUEL DRIN

€ 69.00

5

16137002
ref: 5
E/NO. 14444

PUMP,FUEL DRIN

€ 69.00

6

220B0616
ref: 6

SCREW-PAN HEAD,6X16

€ 2.50

7

920431037
ref: 7

PIN,DOWEL,10X8.2X14

€ 0.50

8

601B6205
ref: 8

BEARING-BALL,#6205C3

€ 14.00

9

220B0665
ref: 9

SCREW-PAN HEAD,6X65

€ 2.50

9

220B0665
ref: 9
F7B

SCREW-PAN HEAD,6X65

€ 2.50

10

220B0655
ref: 10

SCREW-PAN HEAD,6X55

€ 2.50

11

220B0640
ref: 11

SCREW-PAN HEAD,6X40

€ 2.00

12

920491250
ref: 12

SEAL-OIL

€ 12.00

13

92050039
ref: 13

OIL SEAL SC30426

€ 9.00

14

920451046
ref: 14

BEARING-BALL,6204C3

€ 22.00

15

92049004
ref: 15

OIL SEAL SB12205

€ 6.00

16

14076002
ref: 16

COVER-WIRING HARNESS

€ 2.50

17

92065058
ref: 17

GASKET, 10,5X16X1 (NAS)

€ 2.50

18

92067001
ref: 18

PLUG-OIL DRAIN

€ 3.00

19

14002078
ref: 19

CRANKCASE,L.H

€ 165.00

20

14003046
ref: 20

CRANKCASE,RH

€ 333.00

21

92054004
ref: 21

OIL SEAL

€ 14.50

22

92028095
ref: 22

BUSH-TACHOMETER

€ 6.00

23

92055025
ref: 23

'O' RING

€ 3.00

24

13223003
ref: 24

GEAR-TACHOMETER

€ 22.50

25

92026026
ref: 25

WASHER-THRUST

€ 5.50

26

92026025
ref: 26

WASHER-THRUST

€ 7.00

27

13224007
ref: 27

GEAR-TACHOMETER

€ 15.50

27-1

16086002
ref: 27-1

SHAFT-OIL PUMP GEAR

€ 4.50

28

92042035
ref: 28

PIN,DOWEL,2.5X12.8

€ 2.50

29

16085016
ref: 29

GEAR-OIL PUMP

€ 27.00

30

220B0620
ref: 30

SCREW-PAN HEAD,6X20

€ 2.50

31

92055037
ref: 31

RING-O,CHECK VALVE

€ 2.50

32

16128006
ref: 32

VALVE-CHECK

€ 7.50

33

653B324507
ref: 33

OIL SEAL,TB32457

€ 11.50

34

14019046
ref: 34

COVER-ROTARY DISC VLV

€ 31.00

35

610A0512
ref: 35

ROLLER,5X12

€ 3.00

36

220B0612
ref: 36

SCREW-PAN HEAD,6X12

€ 1.00

37

14014022
ref: 37

HOLDER-MISSION BERNG

€ 2.00

38

92071038
ref: 38

GROMMET,PIPE

€ 2.50

39

551A0816
ref: 39

PIN-DOWEL,8X16

€ 0.50

40

92071042
ref: 40

GROMMET

€ 2.50

41

140691001
ref: 41

BREATHER

€ 17.50

42

92059061
ref: 42

PIPE-BREATHER

€ 3.00

43

92055019
ref: 43

RING-O,120MM

€ 8.50

44

14014021
ref: 44

HOLDER-CRANK BEARING

€ 2.00

45

221B0616
ref: 45

SCREW-CNTSNK HD,6X16

€ 0.50

46

601B6305
ref: 46

BEARING-BALL,#6305C3

€ 30.00

47

92059031
ref: 47

PIPE-FUEL OVERFLOW

€ 1.50

48

14077002
ref: 48
F7B

GUIDE-CHAIN

€ 7.50

49

220B0685
ref: 49
F7B

SCREW-PAN HEAD,6X85

€ 3.50

50

92027169
ref: 50
F7B

COLLAR,6.8X10X16

€ 4.00

51

220B0612
ref: 51
F7B

SCREW-PAN HEAD,6X12

€ 1.00

CRANKCASE ('71-'73 F7/F7-A/F7-B)
