REAR WHEEL/CHAIN
ZX750N2 NINJA ZX7RR 1997 CANADA

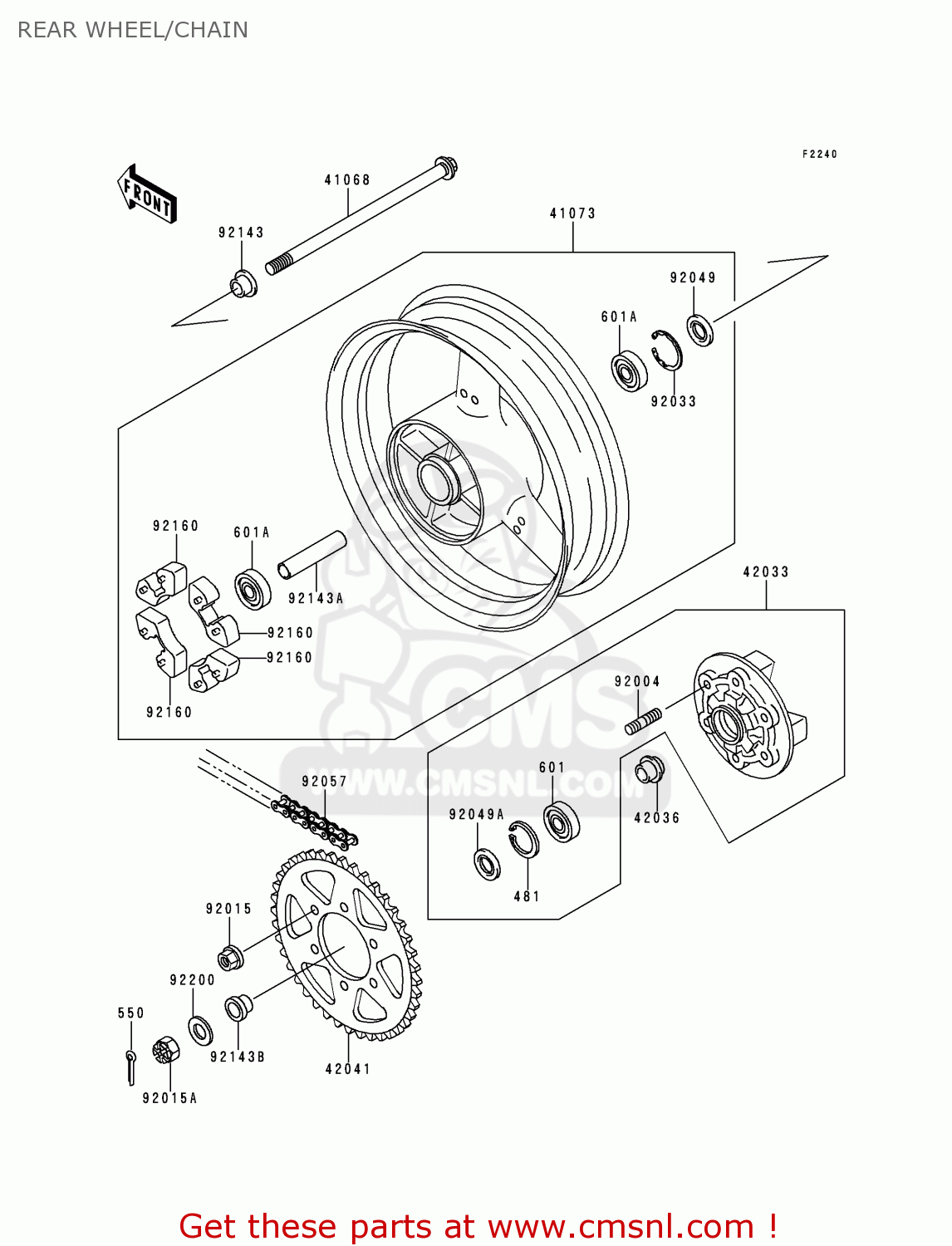

Rear wheel/chain diagram ZX750N2 NINJA ZX7RR 1997 CANADA
REAR WHEEL/CHAIN ZX750N2 NINJA ZX7RR 1997 CANADA
×
prices are in EUR
ref
part #
description
quantity
481
481J5500
ref: 481
CIRCLIP
€ 6.50
550
550D4040
ref: 550
PIN-COTTER,4.0X40
€ 1.00
601
601B6006G
ref: 601
BEARING-BALL,#6006G
€ 27.50
601A
601B6205UU
ref: 601A
BEARING-BALL
€ 27.50
41068
410681326
ref: 41068
AXLE,RR
€ 73.00
41073
410731597F8
ref: 41073
WHEEL-ASSY,RR,J.S.VIO
€ 875.00
42033
420331144
ref: 42033
COUPLING-ASSY,RR HUB
€ 208.50
42036
420361279
ref: 42036
SLEEVE,RR HUB,L=22
€ 21.50
42041
420411456
ref: 42041
SPROCKET-HUB,42T
€ 55.00
92004
920041151
ref: 92004
STUD,10X19.5
€ 6.50
92015
920151720
ref: 92015
NUT,10MM
€ 3.50
92015A
920151844
ref: 92015A
NUT,CASTLE,24MM
€ 10.00
92033
920331043
ref: 92033
RING,SNAP,56.2M/M
€ 6.00
92049
920491375
ref: 92049
SEAL-OIL,RR HUB
€ 13.00
92049A
920491376
ref: 92049A
SEAL-OIL,PJN 40 55 8
€ 12.50
92057
920571412
ref: 92057
CHAIN,DRIVE,RK525ROZ2
€ 215.00
92143
921431475
ref: 92143
COLLAR,RR AXLE,RH,L=2
€ 32.50
92143A
921431783
ref: 92143A
COLLAR,RR HUB,L=136
€ 23.50
92143B
921431784
ref: 92143B
COLLAR,RR AXLE,LH,L=1
€ 34.00
92160
921601485
ref: 92160
DAMPER,SHOCK,RR HUB
€ 16.00
92200
922001081
ref: 92200
WASHER,25.5X38X4.5
€ 3.50
