ELECTRO BRACKET
ZX750N2 NINJA ZX7RR 1997 CANADA

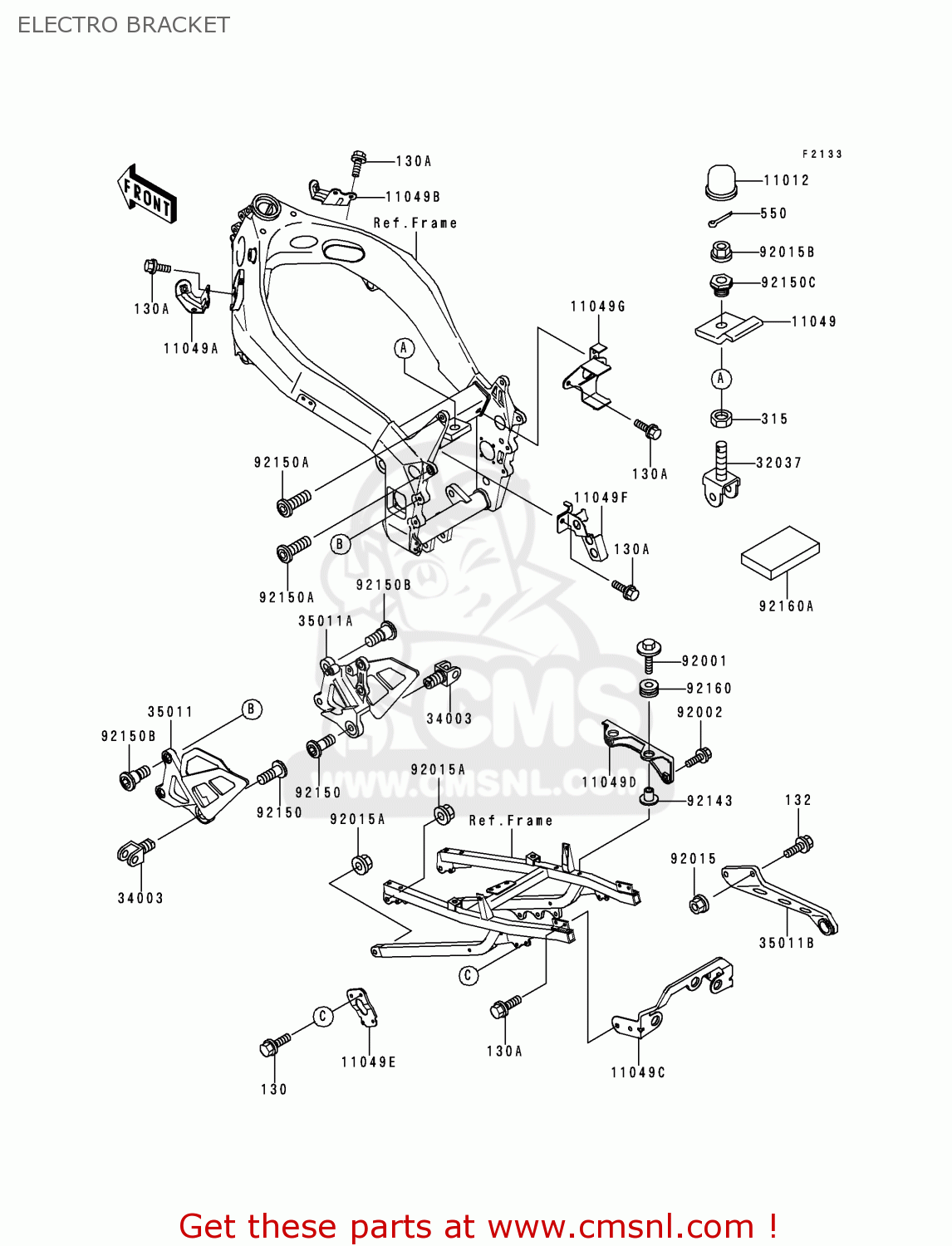

Electro bracket diagram ZX750N2 NINJA ZX7RR 1997 CANADA
ELECTRO BRACKET ZX750N2 NINJA ZX7RR 1997 CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
€ 1.50
130A
130J0616
ref: 130A
BOLT-FLANGED,6X16
€ 1.50
132
132E0825
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
315
315B1600
ref: 315
NUT-HEX-FINE,16MM
€ 2.50
550
550D4025
ref: 550
PIN,COTTER,4X25
€ 0.50
11012
110121844
ref: 11012
CAP
€ 6.50
11049
110491334
ref: 11049
BRACKET,BATTERY CASE,
€ 9.50
11049A
110491335
ref: 11049A
BRACKET,RADIATOR,LH
€ 9.50
11049B
110491336
ref: 11049B
BRACKET,RADIATOR,RH
€ 9.50
11049C
110491396
ref: 11049C
BRACKET,TAIL LAMP
€ 35.50
11049D
110491397
ref: 11049D
BRACKET,IGNITER
€ 18.00
11049E
110491409
ref: 11049E
BRACKET,HELMET LOCK
€ 8.00
11049F
110491701
ref: 11049F
BRACKET,FUEL FILTER
€ 12.00
11049G
110491736
ref: 11049G
BRACKET,FUEL PUMP
€ 12.50
32037
320371564
ref: 32037
BRACKET-SHOCKABSORBER
€ 28.00
34003
340031327
ref: 34003
HOLDER-STEP,FR,RH
€ 22.50
35011
350111552
ref: 35011
STAY,FR,LH
€ 116.00
35011A
350111553
ref: 35011A
STAY,FR,RH
€ 116.00
35011B
350111779
ref: 35011B
STAY,MUFFLER
€ 70.00
92001
920011776
ref: 92001
BOLT,6X30
€ 3.00
92002
920021656
ref: 92002
BOLT, 6 X 14
€ 3.00
92015
920151406
ref: 92015
NUT,8MM
€ 3.00
92015A
920151415
ref: 92015A
NUT,10MM
€ 3.00
92015B
920151881
ref: 92015B
NUT,FLANGED,16MM
€ 16.50
92143
921431353
ref: 92143
COLLAR
€ 5.50
92150
921501268
ref: 92150
BOLT,10X25
€ 4.00
92150A
921501295
ref: 92150A
BOLT,10X35
€ 6.00
92150B
921501839
ref: 92150B
BOLT
€ 1.50
92150C
921501974
ref: 92150C
BOLT,22X17
€ 15.00
92160
921601162
ref: 92160
DAMPER
€ 3.00
92160A
921601284
ref: 92160A
DAMPER,BATTERY
€ 10.50
