RADIATOR
ZX750N2 NINJA ZX7RR 1997 CANADA

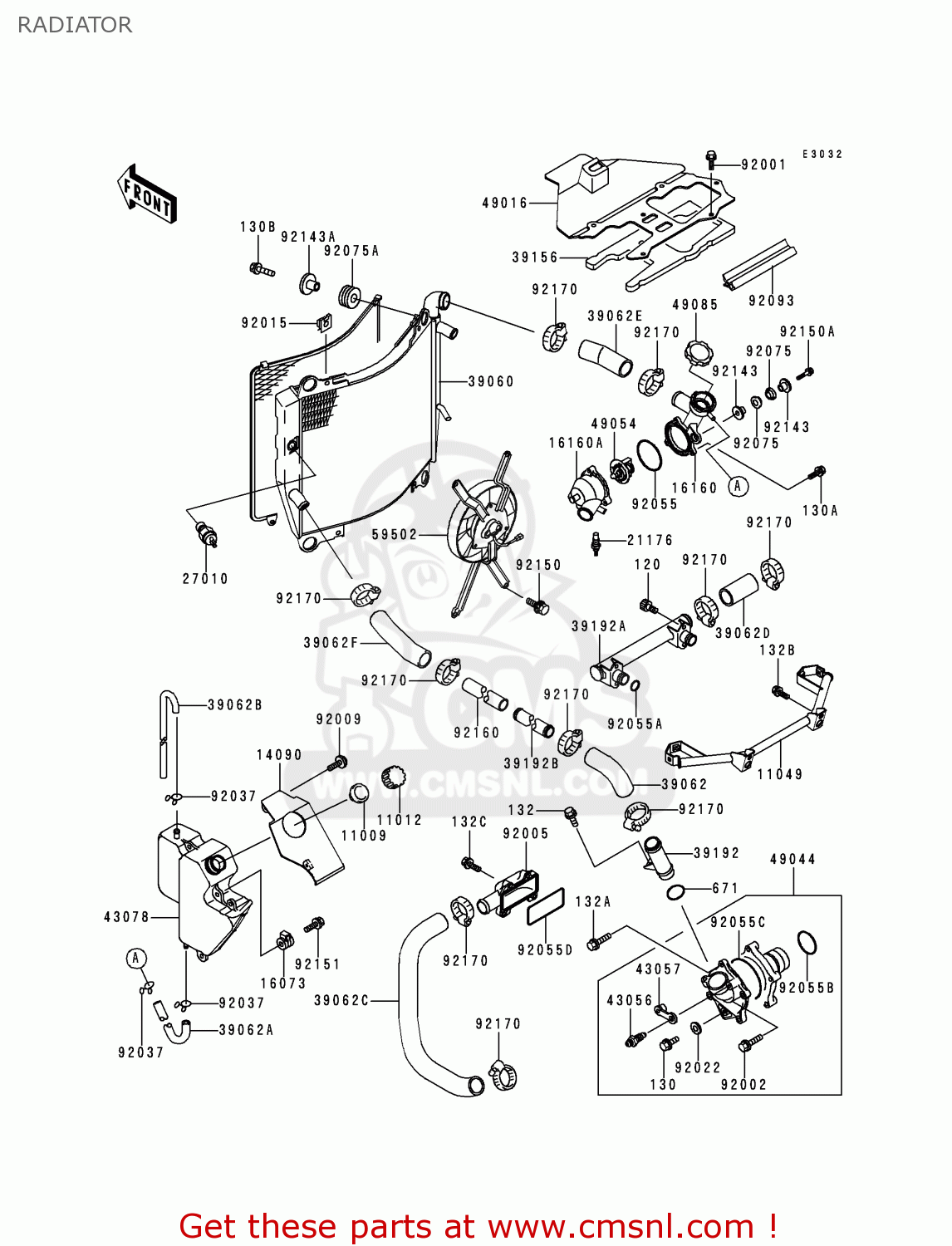

Radiator diagram ZX750N2 NINJA ZX7RR 1997 CANADA
RADIATOR ZX750N2 NINJA ZX7RR 1997 CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
11049
110491349
ref: 11049
BRACKET,RADIATOR
€ 59.00
14090
140901634
ref: 14090
COVER,RESERVOIR
€ 28.50
16073
160731107
ref: 16073
INSULATOR
€ 3.00
16160
161601252
ref: 16160
BODY,THERMOSTAT CAP
€ 137.50
16160A
161601253
ref: 16160A
BODY,THERMOSTAT CASE
€ 54.00
21176
211761054
ref: 21176
SENSOR,WATER
€ 49.50
27010
270101202
ref: 27010
SWITCH,FAN
€ 74.00
39060
390601133
ref: 39060
RADIATOR
€ 653.50
39062
390621472
ref: 39062
HOSE-COOLING,WATER PU
€ 17.00
39062A
390621570
ref: 39062A
HOSE-COOLING,OVERFLOW
€ 7.50
39062B
390621610
ref: 39062B
HOSE-COOLING,DRAIN
€ 7.50
39062C
390621660
ref: 39062C
HOSE-COOLING,PUMP-CYL
€ 35.00
39062D
390621663
ref: 39062D
HOSE-COOLING,HEAD-THE
€ 12.00
39062E
390621664
ref: 39062E
HOSE-COOLING,CAP-RADI
€ 11.50
39062F
390621666
ref: 39062F
HOSE-COOLING,RADIATOR
€ 13.00
39156
391561516
ref: 39156
PAD,HEAD COVER
€ 12.50
39192
391921041
ref: 39192
PIPE-WATER
€ 23.50
39192A
391921042
ref: 39192A
PIPE-WATER
€ 80.00
39192B
391921047
ref: 39192B
PIPE-WATER
€ 21.50
43056
430561051
ref: 43056
BREATHER-BRAKE
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
€ 3.00
43078
430781150
ref: 43078
RESERVOIR
€ 48.50
49016
490161185
ref: 49016
COVER-SEAL
€ 30.00
49044
490441069
ref: 49044
PUMP-WATER
€ 261.50
49054
490541067
ref: 49054
THERMOSTAT
€ 46.00
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
€ 39.50
59502
595021114
ref: 59502
FAN-ASSY,RADIATOR
€ 655.00
92001
920011863
ref: 92001
BOLT,6X16
€ 2.00
92002
920021392
ref: 92002
BOLT,6X22
€ 3.00
92005
920051316
ref: 92005
FITTING
€ 20.50
92009
920091436
ref: 92009
SCREW
€ 2.00
92015
920151487
ref: 92015
NUT
€ 3.00
92022
920221976
ref: 92022
WASHER,6.2X6.2X1.0
€ 4.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
€ 4.00
92055A
920551282
ref: 92055A
RING-O
€ 3.00
92055B
920551424
ref: 92055B
RING-O,33.2X2.4
€ 4.00
92055C
920551495
ref: 92055C
RING-O,WATER PUMP
€ 8.00
120
120P0612
ref: 120
BOLT,SOCKET,6X12
€ 1.00
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
€ 1.50
130A
130J0520
ref: 130A
BOLT-FLANGED
€ 2.00
130B
130J0625
ref: 130B
BOLT-FLANGED,6X25
€ 2.00
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132J0645
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132J0812
ref: 132B
BOLT-FLANGED-SMALL,8X
€ 1.50
132C
132Y0625
ref: 132C
BOLT-FLANGED-SMALL
€ 3.50
671
671B2525
ref: 671
O RING,25MM
€ 3.00
92055D
920551545
ref: 92055D
RING-O
€ 9.00
92075
920751138
ref: 92075
DAMPER,PILOT LAMP
€ 2.50
92075A
920751665
ref: 92075A
DAMPER
€ 5.00
92093
920931276
ref: 92093
SEAL
€ 8.00
92143
921431057
ref: 92143
COLLAR
€ 3.00
92143A
921431063
ref: 92143A
COLLAR
€ 6.00
92150
921501186
ref: 92150
BOLT
€ 3.00
92150A
921501829
ref: 92150A
BOLT,6X25
€ 2.50
92151
921511086
ref: 92151
BOLT,6X30
€ 2.50
92160
921601297
ref: 92160
DAMPER,WATER PIPE
€ 7.00
92170
921701284
ref: 92170
CLAMP,CABLE
€ 7.50
