IGNITION SYSTEM
ZX750N2 NINJA ZX7RR 1997 CANADA

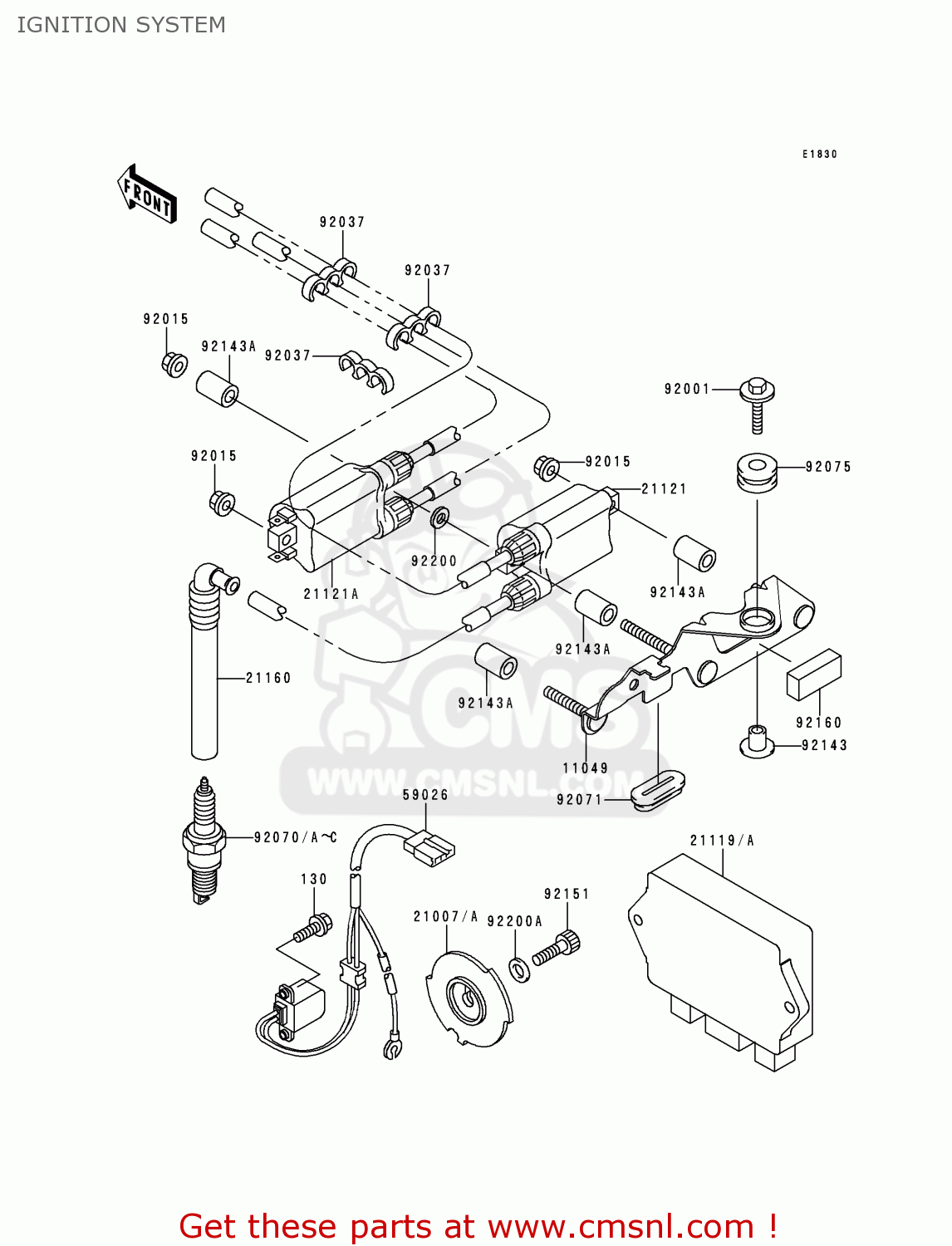

Ignition system diagram ZX750N2 NINJA ZX7RR 1997 CANADA
IGNITION SYSTEM ZX750N2 NINJA ZX7RR 1997 CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130G0512
ref: 130
BOLT-FLANGED
€ 1.00
11049
110491707
ref: 11049
BRACKET,IGNITION
€ 25.00
21007
210071294
ref: 21007
ROTOR,PULSING
€ 30.50
21119
211191461
ref: 21119
IGNITER
€ 1,102.00
21121
211211253
ref: 21121
COIL-IGNITION,#1
€ 162.50
21121A
211211255
ref: 21121A
COIL-IGNITION,#2
€ 162.50
21160
211601088
ref: 21160
CAP-ASSY-PLUG
€ 40.50
59026
590261104
ref: 59026
COIL-PULSING
€ 122.00
92001
920011776
ref: 92001
BOLT,6X30
€ 3.00
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92037
920371941
ref: 92037
CLAMP,TUBE
€ 3.50
92070
920701143
ref: 92070
CR9E (NGK SPARKPLUG)
€ 8.50
92070A
ref: 92070A
92070B
920701169
ref: 92070B
CR8E (NGK SPARKPLUG)
€ 8.50
92070C
ref: 92070C
92071
920711187
ref: 92071
GROMMET
€ 3.00
92075
920751857
ref: 92075
DAMPER,MUFFLER FITTIN
€ 3.50
92143
921431353
ref: 92143
COLLAR
€ 5.50
92143A
921431858
ref: 92143A
COLLAR,6.4X10X20
€ 2.50
92151
921511073
ref: 92151
BOLT,SOCKET,8X22
€ 3.50
92160
921601736
ref: 92160
DAMPER,BRACKET
€ 2.50
92200
922001271
ref: 92200
WASHER,6.5X13
€ 1.50
92200A
922001300
ref: 92200A
WASHER,8.5X14.7X2
€ 5.50
