CRANKCASE
ZX750N2 NINJA ZX7RR 1997 CANADA

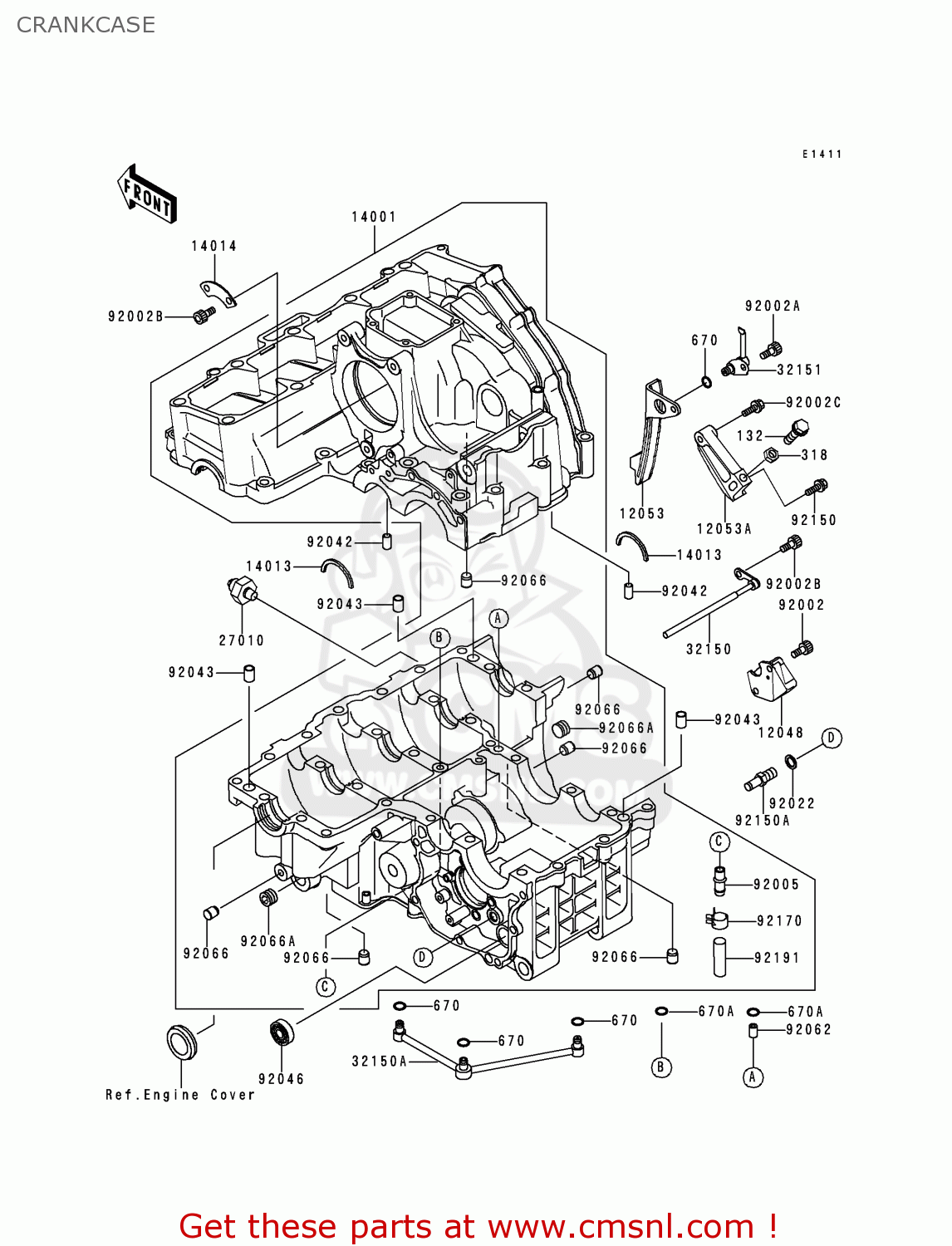

Crankcase diagram ZX750N2 NINJA ZX7RR 1997 CANADA
CRANKCASE ZX750N2 NINJA ZX7RR 1997 CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0820
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
318
318B0800
ref: 318
NUT,8MM
€ 0.50
670
670D1505
ref: 670
O RING
€ 2.50
670A
670D1508
ref: 670A
O RING,8MM
€ 2.50
12048
120481109
ref: 12048
TENSIONER-ASSY
€ 124.00
12053
120531281
ref: 12053
GUIDE-CHAIN
€ 39.00
12053A
120531285
ref: 12053A
GUIDE-CHAIN
€ 39.00
14001
140011208
ref: 14001
SET-CRANKCASE
€ 2,672.50
14013
140131004
ref: 14013
RING-POSITION,CRANK
€ 3.00
14014
140141056
ref: 14014
PLATE-POSITION
€ 9.50
27010
270101313
ref: 27010
SWITCH,OIL PRESSURE
€ 28.00
32150
321501795
ref: 32150
PIPE
€ 35.50
32150A
321501796
ref: 32150A
PIPE
€ 45.50
32151
321511492
ref: 32151
PIPE
€ 34.00
92002
920021696
ref: 92002
BOLT,SOCKET,6X25
€ 1.50
92002A
920021778
ref: 92002A
BOLT,SOCKET,6X16
€ 3.00
92002B
920021796
ref: 92002B
BOLT,SOCKET,6X12
€ 3.00
92002C
920021797
ref: 92002C
BOLT,6X30
€ 3.50
92005
920051161
ref: 92005
FITTING,BREATHER PIPE
€ 7.50
92022
920221973
ref: 92022
WASHER
€ 3.00
92042
92042016
ref: 92042
PIN,DOWEL,6X16
€ 3.50
92043
920431037
ref: 92043
PIN,DOWEL,10X8.2X14
€ 0.50
92046
920461148
ref: 92046
BEARING-NEEDLE,HK1312
€ 19.50
92062
920621074
ref: 92062
NOZZLE
€ 6.50
92066
920661012
ref: 92066
PLUG,OIL LINE,7.2X8
€ 4.00
92066A
920661262
ref: 92066A
PLUG
€ 2.50
92150
921501799
ref: 92150
BOLT,6X25
€ 3.00
92150A
921501803
ref: 92150A
BOLT,RETURN SPRING
€ 6.50
92170
921701167
ref: 92170
CLAMP
€ 4.00
92191
921911016
ref: 92191
TUBE
€ 2.50
