AIR CLEANER
ZX750N2 NINJA ZX7RR 1997 CANADA

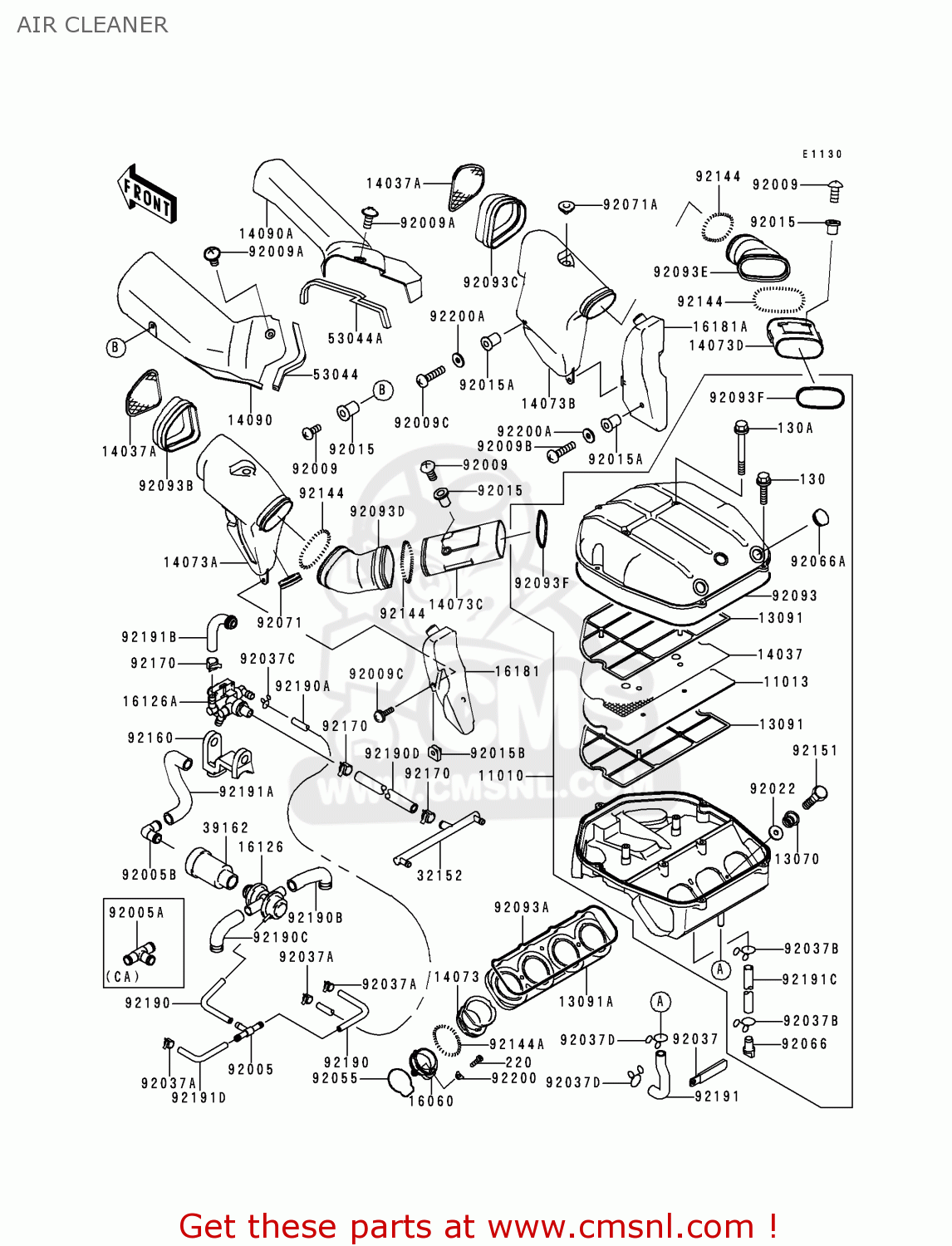

Air cleaner diagram ZX750N2 NINJA ZX7RR 1997 CANADA
AIR CLEANER ZX750N2 NINJA ZX7RR 1997 CANADA
×
prices are in EUR
ref
part #
description
quantity
11010
110101563
ref: 11010
FILTER-ASSY-AIR
€ 252.00
11013
110131244
ref: 11013
ELEMENT-AIR FILTER
€ 16.50
13070
130701300
ref: 13070
GUIDE
€ 5.50
13091
130911933
ref: 13091
HOLDER,ELEMENT
€ 17.50
13091A
130911935
ref: 13091A
HOLDER
€ 59.00
14037
140371212
ref: 14037
SCREEN,AIR FILTER
€ 13.00
14037A
140371213
ref: 14037A
SCREEN,FILTER
€ 28.50
14073
140731641
ref: 14073
DUCT
€ 16.00
14073A
140731643
ref: 14073A
DUCT,LH,#1
€ 79.50
14073B
140731644
ref: 14073B
DUCT,RH,#1
€ 76.00
14073C
140731645
ref: 14073C
DUCT,LH,#2
€ 29.00
14073D
140731646
ref: 14073D
DUCT,RH,#2
€ 31.50
14090
140901644
ref: 14090
COVER,LH
€ 24.50
14090A
140901645
ref: 14090A
COVER,RH
€ 24.50
16060
160601069
ref: 16060
PIPE-INTAKE
€ 17.00
16126
161261104
ref: 16126
VALVE,AIR SWITCH
€ 176.00
16126A
161261305
ref: 16126A
VALVE
€ 117.00
16181
161811085
ref: 16181
TANK-RESONATOR,LH
€ 36.50
16181A
161811086
ref: 16181A
TANK-RESONATOR,RH
€ 34.50
32152
321521042
ref: 32152
PIPE
€ 20.50
39162
391621084
ref: 39162
SILENCER-INTAKE
€ 44.50
53044
530441265
ref: 53044
TRIM,AIR DUCT COVER
€ 8.00
53044A
530441296
ref: 53044A
TRIM
€ 8.00
92005
920051017
ref: 92005
FITTING,TUBE
€ 6.50
92005B
920051309
ref: 92005B
FITTING
€ 8.00
92009
920091181
ref: 92009
SCREW,6X18
€ 2.00
92009A
920091402
ref: 92009A
SCREW,6X10
€ 1.50
92009B
920091621
ref: 92009B
SCREW
€ 1.50
92009C
920091656
ref: 92009C
SCREW
€ 2.50
92015
920151700A
ref: 92015
NUT
€ 5.50
92015A
920151757A
ref: 92015A
NUT,5MM
€ 5.00
92015B
920151904
ref: 92015B
NUT,CLIP,6MM
€ 4.50
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
920371461
ref: 92037A
CLAMP,TUBE
€ 1.00
92037B
92037147
ref: 92037B
CLAMP,CHAIN OILER
€ 4.50
92037C
920371712
ref: 92037C
CLAMP
€ 3.00
130
130H0625
ref: 130
BOLT-FLANGED,6X25
€ 0.50
130A
130H0670
ref: 130A
BOLT-FLANGED
€ 2.00
220
220B0508
ref: 220
SCREW-PAN-CROS,5X8
€ 0.50
92037D
92037213
ref: 92037D
CLAMP, BREATHER TUBE
€ 2.50
92055
920551492
ref: 92055
RING-O
€ 3.50
92066
920661211
ref: 92066
PLUG
€ 5.50
92066A
920661389
ref: 92066A
PLUG
€ 2.50
92071
920711013
ref: 92071
GROMMET,AIR CLEANER
€ 4.00
92071A
920711222
ref: 92071A
GROMMET
€ 4.00
92093
920931396
ref: 92093
SEAL,AIR FILTER CASE
€ 9.50
92093A
920931397
ref: 92093A
SEAL
€ 4.50
92093B
920931398
ref: 92093B
SEAL,DUCT,LH
€ 16.50
92093C
920931399
ref: 92093C
SEAL,DUCT,RH
€ 14.00
92093D
920931400
ref: 92093D
SEAL,LH
€ 30.50
92093E
920931401
ref: 92093E
SEAL,RH
€ 27.50
92093F
920931402
ref: 92093F
SEAL,AIR FILTER
€ 11.50
92144
921441563
ref: 92144
SPRING,DUCT
€ 6.50
92144A
921441564
ref: 92144A
SPRING
€ 8.50
92151
921511094
ref: 92151
BOLT
€ 2.50
92160
921601666
ref: 92160
DAMPER
€ 10.50
92170
921701118
ref: 92170
CLAMP
€ 5.00
92190
921901091
ref: 92190
TUBE,4X9X220
€ 12.50
92190A
921901405
ref: 92190A
TUBE,L=550
€ 10.50
92190B
921901543
ref: 92190B
TUBE,HEAD COVER-VALVE
€ 7.00
92190C
921901544
ref: 92190C
TUBE
€ 7.00
92190D
921901545
ref: 92190D
TUBE,CARBURETOR-PUMP
€ 3.50
92191
921911024
ref: 92191
TUBE,BREATHER
€ 7.50
92191A
921911025
ref: 92191A
TUBE
€ 10.00
92191B
921911026
ref: 92191B
TUBE,AIR FILTER-VALVE
€ 7.50
92191C
921911028
ref: 92191C
TUBE,7X10X500
€ 7.00
92191D
921911060
ref: 92191D
TUBE
€ 2.00
92200
922001058
ref: 92200
WASHER,DUCT
€ 3.00
92200A
922001281
ref: 92200A
WASHER,5.3X15X1.5
€ 2.00
