SEAT

ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

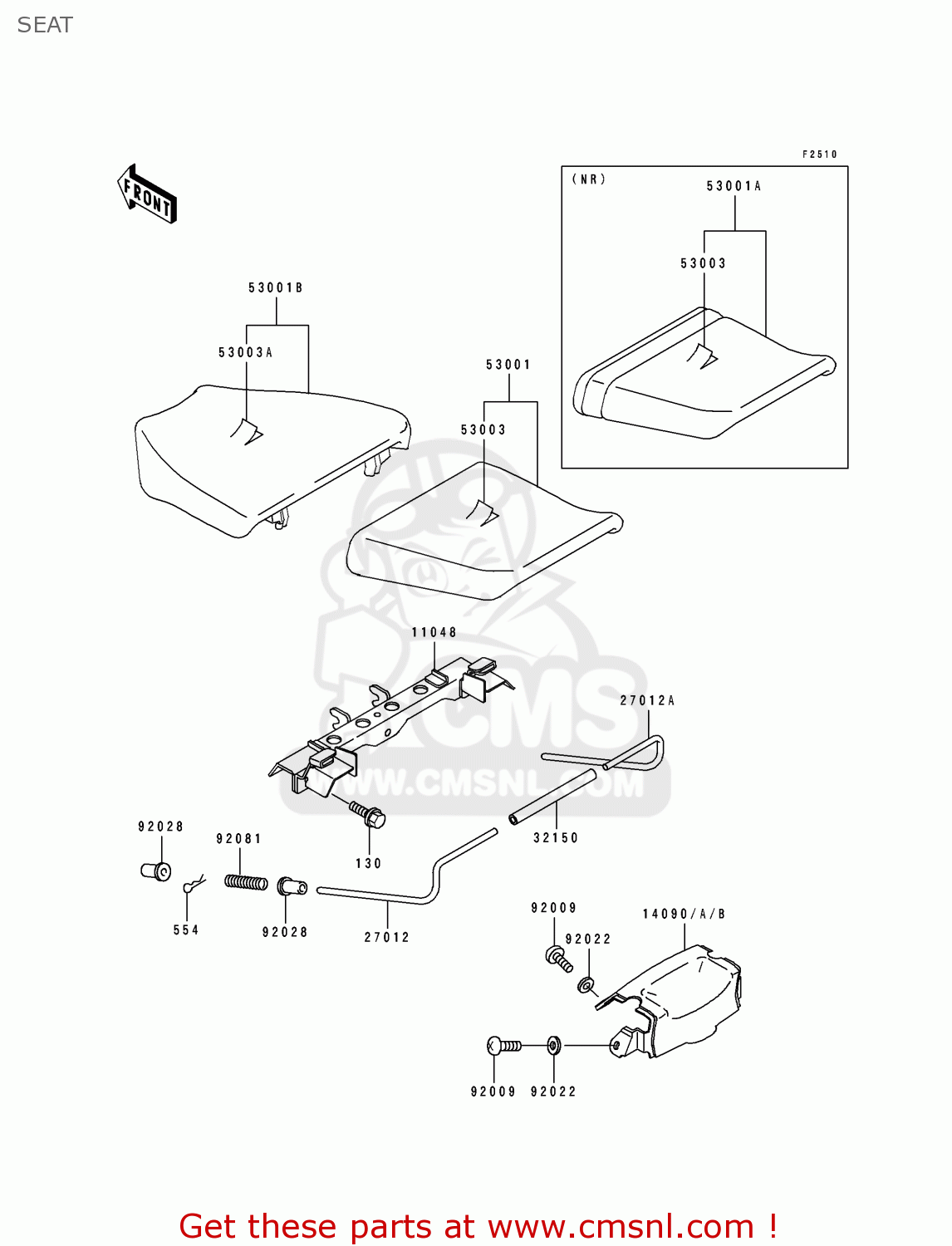

Seat diagram ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

SEAT ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
SEAT ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
SEAT ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130H0612
ref: 130
BOLT-FLANGED,6X12
130H0612
€ 0.50
554
554A0600
ref: 554
PIN-SNAP,SIDE STAND
554A0600
€ 0.50
11048
110481213
ref: 11048
BRACKET,REAR SEAT,FR
110481213
€ 33.00
14090
140901233H8
ref: 14090
COVER,TAIL,EBONY
140901233H8
€ 85.00
14090A
140901233KD
ref: 14090A
COVER,TAIL,BLUE 36
140901233KD
€ 79.50
27012
270121434
ref: 27012
HOOK,FRONT SEAT,LH
€ 10.00
27012A
270121435
ref: 27012A
HOOK,FRONT SEAT,RH
€ 10.00
32150
321501415
ref: 32150
PIPE,SEAT LOCK HOOK
€ 4.50
53001
530011639MA
ref: 53001
AREUFGFRGRITNLSDSPST
SEAT-ASSY,RR,BLACK
530011639MA
€ 225.50
53001A
530011657MA
ref: 53001A
NR
SEAT-ASSY,RR,BLACK
€ 237.00
53001B
530011686MA
ref: 53001B
SEAT-ASSY,FR,BLACK
€ 211.50
53003
530031245MA
ref: 53003
LEATHER,REAR SEAT,BLA
530031245MA
€ 71.00
53003A
530031269MA
ref: 53003A
LEATHER,FRONT SEAT,BL
530031269MA
€ 86.50
92009
920091654
ref: 92009
SCREW
920091654
€ 0.50
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92028
920281637
ref: 92028
BUSHING
920281637
€ 2.50
92081
920811486
ref: 92081
SPRING,CLUTCH RELEASE
920811486
€ 4.00
