FRAME FITTINGS

ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

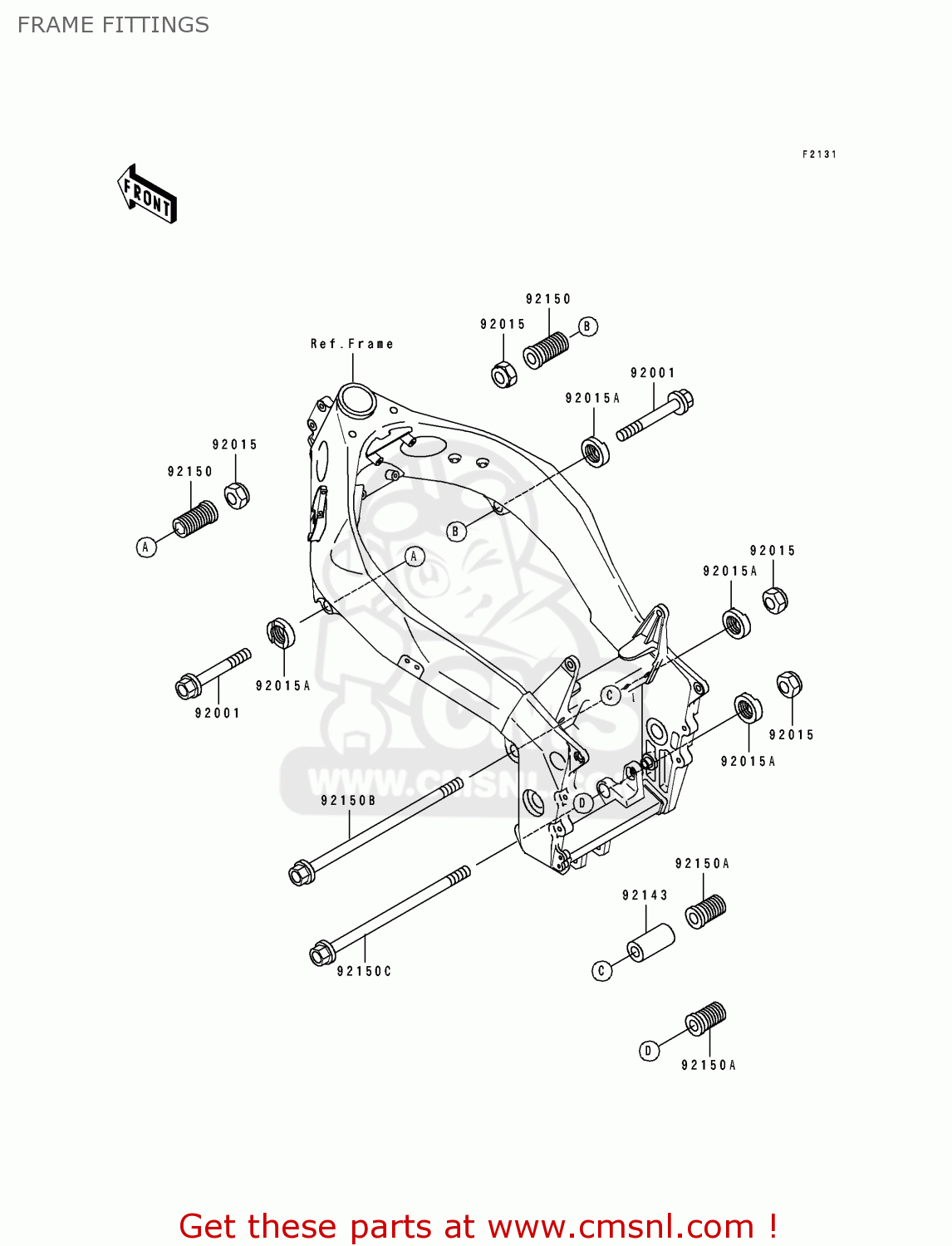

Frame fittings diagram ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

92001

920011937
ref: 92001

BOLT,12X90

€ 10.50

92015

920151190
ref: 92015

NUT,LOCK,12MM,BLACK

€ 4.50

92015A

920151846
ref: 92015A

NUT,ENGINE MOUNT,22MM

€ 14.50

92143

921431482
ref: 92143

COLLAR,12.5X26X51

€ 18.50

92150

921501470
ref: 92150

BOLT,ENGINE MOUNT,22X

€ 24.50

92150A

921501471
ref: 92150A

BOLT,ENGINE MOUNT,22X

€ 26.00

92150B

921501472
ref: 92150B

BOLT,FLANGED,12X243

€ 19.50

92150C

921501473
ref: 92150C

BOLT,FLANGED,12X221

€ 18.50
