IGNITION SWITCH

ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

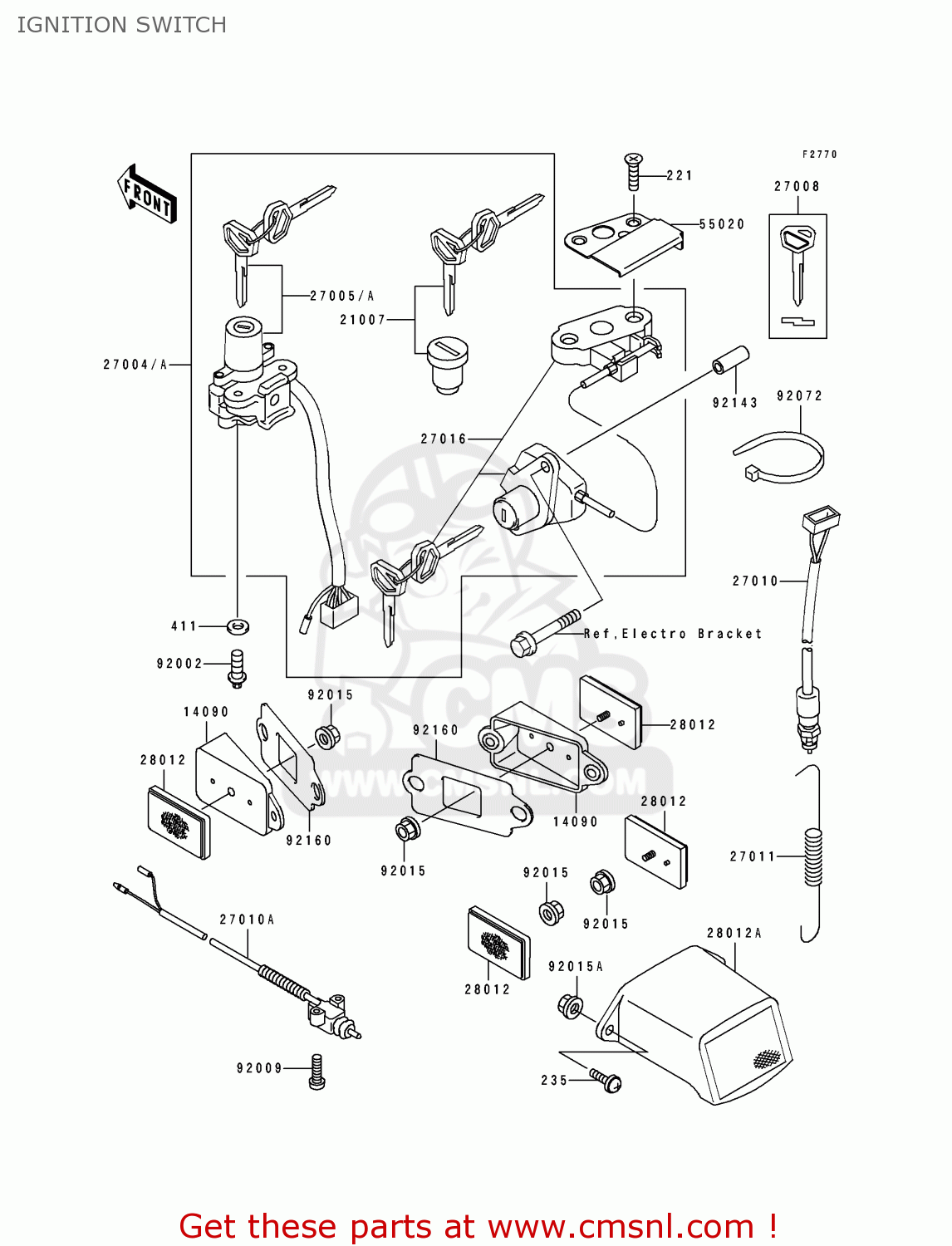

Ignition switch diagram ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

IGNITION SWITCH ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
IGNITION SWITCH ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
IGNITION SWITCH ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
221
221B0620
ref: 221
SCREW-CNTSNK HD,6X20
221B0620
€ 0.50
235
235C0620
ref: 235
SCREW-PAN-WP-CROS
235C0620
€ 1.50
411
411E0600
ref: 411
W-PLAIN-S
411E0600
€ 0.50
14090
140901264
ref: 14090
AR
COVER,REFLECTOR
140901264
€ 5.50
21007
210075035
ref: 21007
ROTOR,LOCK,TANK CAP
210075035
€ 42.00
27004
270045437
ref: 27004
SWITCH-ASSY
€ 285.00
27005
270051169
ref: 27005
SWITCH-ASSY-IGNITION
€ 293.50
27008
270081170
ref: 27008
KEY-LOCK,BLANK
270081170
€ 12.50
27010
270101093
ref: 27010
SWITCH,BRAKE LAMP
270101093
€ 20.00
27010A
270101223
ref: 27010A
SWITCH,SIDE STAND
270101223
€ 48.00
27011
27011011
ref: 27011
SPRING,BRAKE LAMP SW
27011011
€ 5.50
27016
270165196
ref: 27016
LOCK-ASSY,SEAT
270165196
€ 111.00
28012
280121003
ref: 28012
AR
REFLECTOR,REFLEX
280121003
€ 15.00
28012A
280121066
ref: 28012A
REFLECTOR-REFLEX,RR
280121066
€ 23.00
55020
550201483
ref: 55020
GUARD,SEAT LOCK
550201483
€ 10.50
92002
920021333
ref: 92002
BOLT
920021333
€ 1.50
92009
920091459
ref: 92009
SCREW
920091459
€ 2.50
92015
920151259
ref: 92015
AR
NUT,FLANGED,5MM
920151259
€ 2.50
92015A
920151367
ref: 92015A
NUT,FLANGED,6MM
920151367
€ 0.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92143
921431072
ref: 92143
COLLAR,6.8X10X42
921431072
€ 4.50
92160
921601395
ref: 92160
AR
DAMPER,REFLECTOR
921601395
€ 3.50
