BRAKE PEDAL

ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

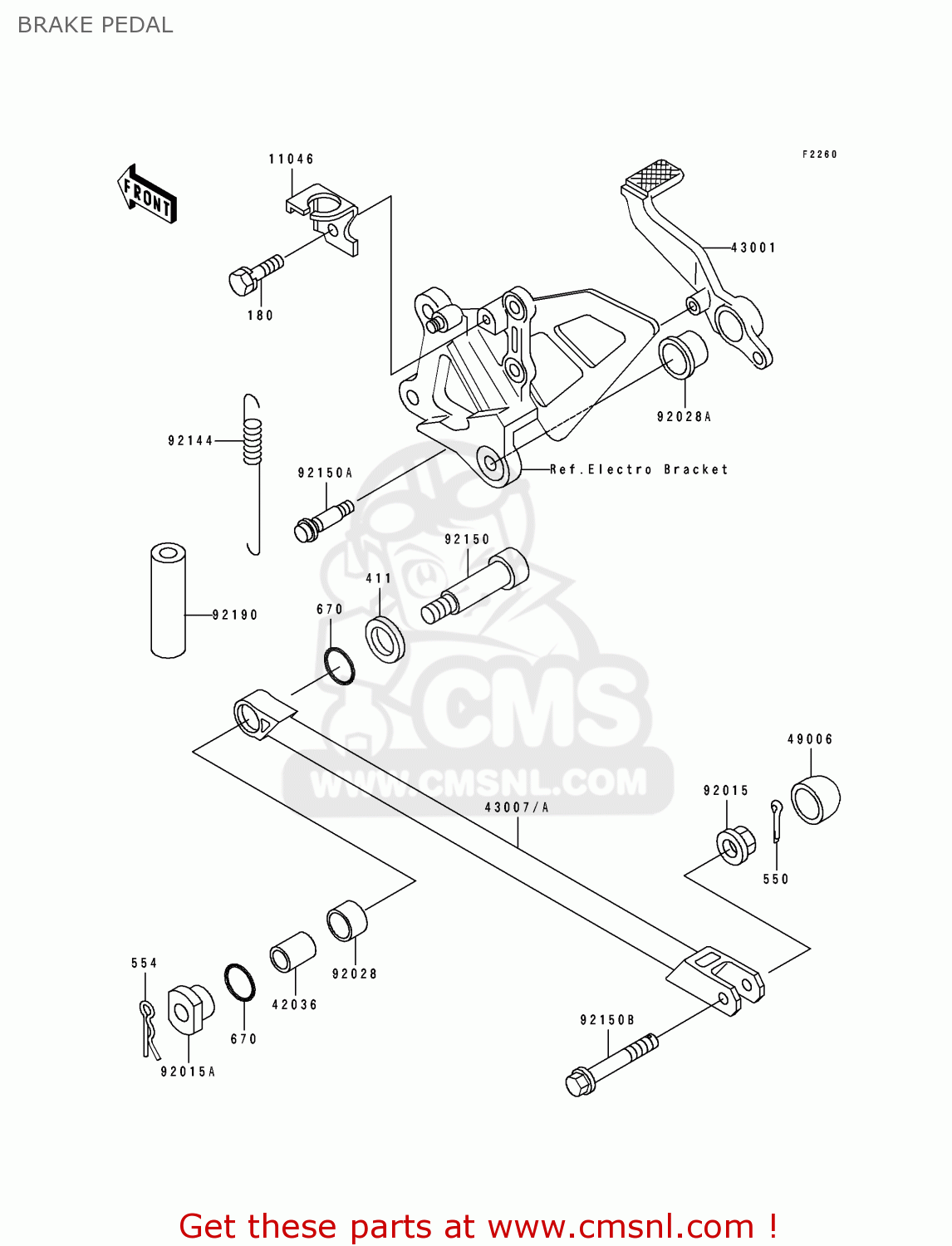

Brake pedal diagram ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

BRAKE PEDAL ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
BRAKE PEDAL ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
BRAKE PEDAL ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
180
180H0614
ref: 180
BOLT-UPSET-WS
€ 1.00
411
411D1000
ref: 411
WASHER-PLAIN,10MM
411D1000
€ 3.00
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
554
554A0800
ref: 554
PIN-SNAP,8MM
554A0800
€ 1.00
670
670B2016
ref: 670
O RING,16MM
670B2016
€ 1.00
11046
110461252
ref: 11046
BRACKET,REAR BRAKE SW
110461252
€ 5.50
42036
420361242
ref: 42036
SLEEVE,10.1X16X20
420361242
€ 9.50
43001
430011274
ref: 43001
LEVER-BRAKE,PEDAL
430011274
€ 90.50
43007
430071166KF
ref: 43007
ROD-TORQUE,SILVER NO.
€ 87.50
43007A
43007116610
ref: 43007A
ROD-TORQUE,BLACK
€ 72.00
49006
490061218
ref: 49006
BOOT
490061218
€ 3.50
92015
920151432
ref: 92015
NUT,8MM
920151432
€ 4.50
92015A
920151747
ref: 92015A
NUT,8MM
920151747
€ 12.00
92028
920281468
ref: 92028
BUSHING
920281468
€ 6.00
92028A
920281576
ref: 92028A
BUSHING
920281576
€ 12.50
92144
921441421
ref: 92144
SPRING,BRAKE PEDAL RE
921441421
€ 6.50
92150
921501167
ref: 92150
BOLT,SOCKET,8X61
921501167
€ 12.00
92150A
921501439
ref: 92150A
BOLT
921501439
€ 8.00
92150B
921501539
ref: 92150B
BOLT,FLANGED,8X47
921501539
€ 6.50
92190
921901170
ref: 92190
TUBE,AIR SWITCH VALVE
921901170
€ 10.00
