GENERATOR SHAFT

ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

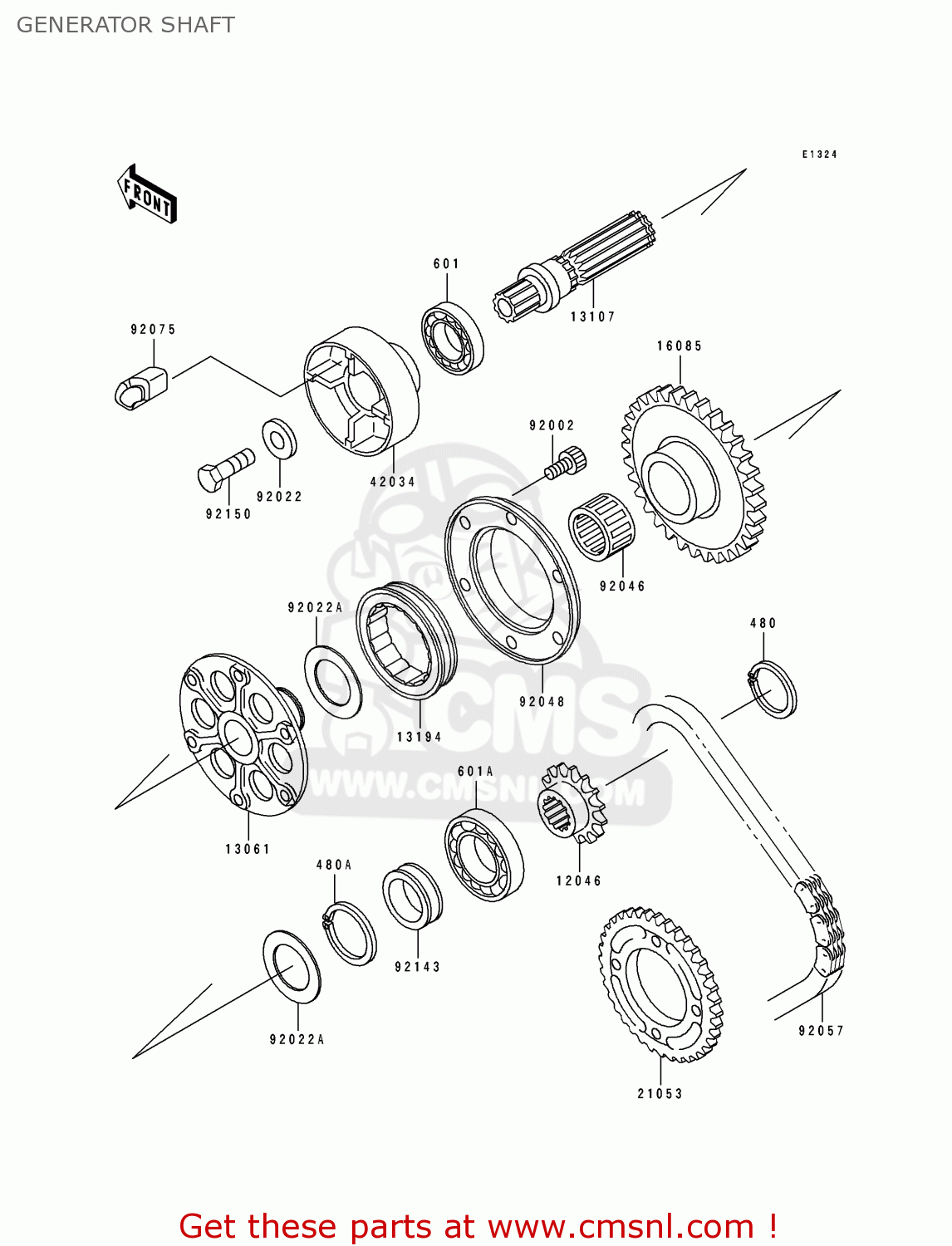

Generator shaft diagram ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

GENERATOR SHAFT ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
GENERATOR SHAFT ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
GENERATOR SHAFT ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
480
480J2000
ref: 480
CIRCLIP-TYPE-C,20MM
480J2000
€ 1.00
480A
480J2500
ref: 480A
CIRCLIP-TYPE-C,25MM
480J2500
€ 1.00
601
601A6203
ref: 601
BEARING-BALL,#6203
601A6203
€ 10.50
601A
601B6204
ref: 601A
BEARING-BALL,#6204C3
601B6204
€ 8.00
12046
120461127
ref: 12046
SPROCKET,DRIVEN,GENER
120461127
€ 32.00
13061
130611197
ref: 13061
BOSS,ONEWAY CLUTCH
€ 100.50
13107
131071277
ref: 13107
SHAFT,ONEWAY CLUTCH
131071277
€ 160.00
13194
131941095
ref: 13194
CLUTCH-ONEWAY
131941095
€ 122.50
16085
160851173
ref: 16085
GEAR,ONEWAY CLUTCH
160851173
€ 100.00
21053
210531063
ref: 21053
SPROCKET-ASSY
210531063
€ 54.50
42034
420341055
ref: 42034
COUPLING
420341055
€ 64.00
92002
920021796
ref: 92002
BOLT,SOCKET,6X12
920021796
€ 3.00
92022
920221518
ref: 92022
WASHER,8X22X3
920221518
€ 2.50
92022A
92022225
ref: 92022A
WASHER-THRUST
92022225
€ 3.50
92046
920461022
ref: 92046
BEARING-NEEDLE,K25302
920461022
€ 24.50
92048
920481068
ref: 92048
RACE,ONEWAY CLUTCH
920481068
€ 58.50
92057
920571322
ref: 92057
CHAIN,GENERATOR,81RH2
920571322
€ 25.50
92075
920751790
ref: 92075
DAMPER,COUPLING
920751790
€ 6.50
92143
921431466
ref: 92143
COLLAR
€ 14.50
92150
921501488
ref: 92150
BOLT
€ 5.50
