FRONT FORK

ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

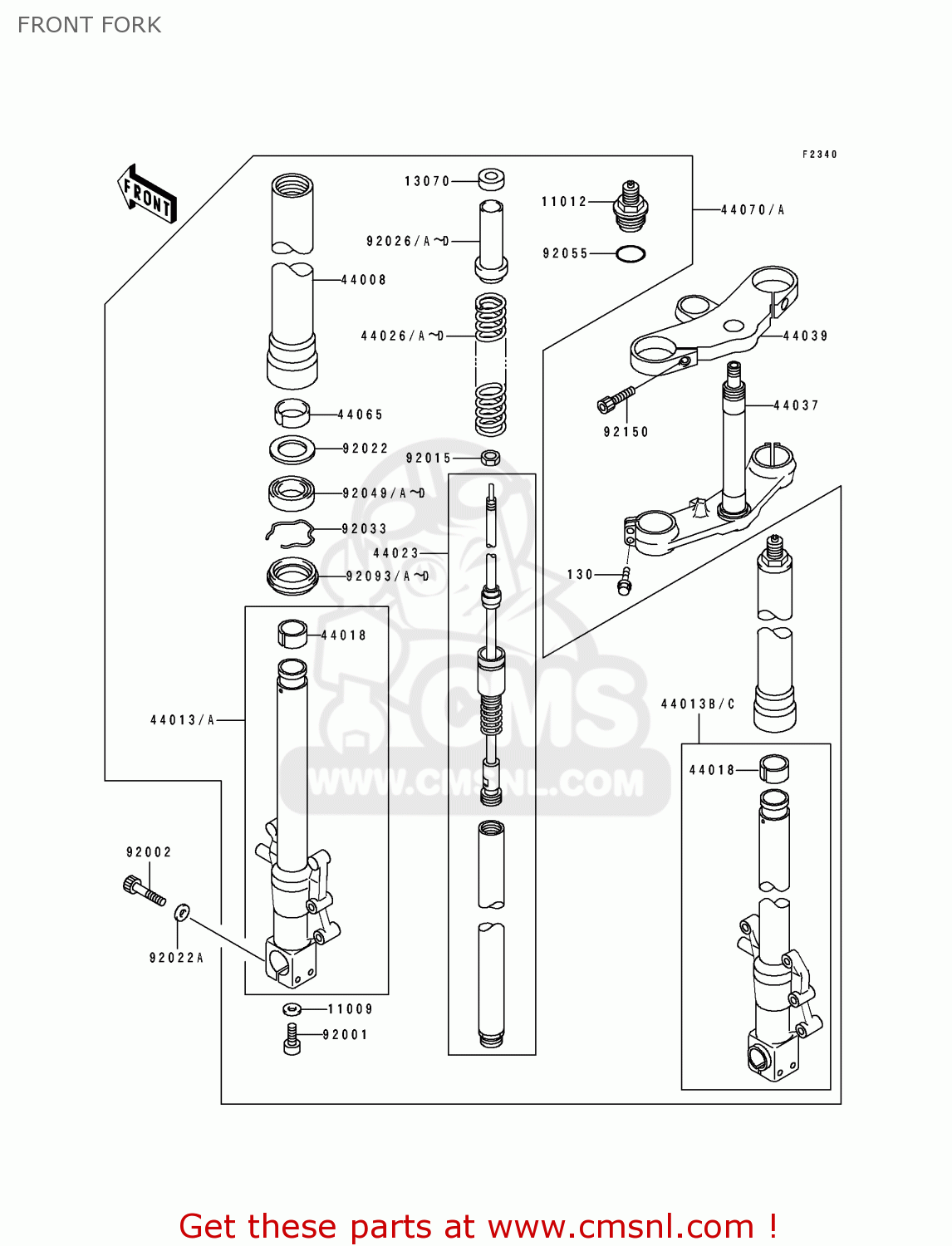

Front fork diagram ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

FRONT FORK ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
FRONT FORK ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
FRONT FORK ZX750L1 ZXR750 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
110091127
€ 3.00
11012
110121748
ref: 11012
CAP,FORK TOP
110121748
€ 83.50
13070
130701236
ref: 13070
GUIDE,FORK
130701236
€ 6.00
44008
440081017JS
ref: 44008
PIPE-FORK OUTER,BROWN
440081017JS
€ 690.00
44013
440131391KF
ref: 44013
PIPE-FORK INNER,LH,SI
€ 296.50
44013A
44013139110
ref: 44013A
PIPE-FORK INNER,LH,BL
44013139110
€ 316.50
44013B
440131392KF
ref: 44013B
PIPE-FORK INNER,RH,SI
€ 317.00
44013C
44013139210
ref: 44013C
PIPE-FORK INNER,RH,BL
44013139210
€ 282.00
44018
440181054
ref: 44018
PISTON-FORK
440181054
€ 33.00
44023
440231091
ref: 44023
CYLINDER-COMP-FORK
€ 316.00
44026
440261541
ref: 44026
SPRING-FRONT FORK
440261541
€ 51.50
44026A
440261541
ref: 44026A
SPRING-FRONT FORK
440261541
€ 51.50
44026C
440261550
ref: 44026C
SPRING-FRONT FORK
440261550
€ 50.50
44026D
440261550
ref: 44026D
SPRING-FRONT FORK
440261550
€ 50.50
44037
440371295
ref: 44037
HOLDER-FORK UNDER
440371295
€ 452.50
44039
440391234
ref: 44039
HOLDER-FORK UPPER
440391234
€ 218.50
44065
440651096
ref: 44065
BUSHING-FRONT FORK,FO
440651096
€ 17.50
44070
440705166KF
ref: 44070
DAMPER-ASSY,FORK,SILV
€ 1,786.00
44070A
44070516610
ref: 44070A
DAMPER-ASSY,FORK,BLAC
€ 1,972.50
92001
920011309
ref: 92001
BOLT,FORK CYLINDER
920011309
€ 4.50
92002
920021847
ref: 92002
BOLT,SOCKET,8X45
€ 3.00
92015
920151795
ref: 92015
NUT
€ 3.50
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
920221298
€ 5.50
92022A
920221598
ref: 92022A
WASHER
920221598
€ 4.50
92026
920261410
ref: 92026
SPACER,FORK
920261410
€ 10.00
92026A
920261410
ref: 92026A
SPACER,FORK
920261410
€ 10.00
92026C
920261442
ref: 92026C
SPACER,FORK
920261442
€ 10.00
92026D
920261442
ref: 92026D
SPACER,FORK
920261442
€ 10.00
130
130G0840
ref: 130
BOLT-FLANGED,8X40
130G0840
€ 1.00
92033
920331036
ref: 92033
CIRCLIP
920331036
€ 4.00
92049
920491347
ref: 92049
SEAL-OIL,FORK OUTER T
920491347
€ 13.00
92049A
920491347
ref: 92049A
SEAL-OIL,FORK OUTER T
920491347
€ 13.00
92049C
920491356
ref: 92049C
SEAL-OIL
920491356
€ 13.00
92049D
920491356
ref: 92049D
SEAL-OIL
920491356
€ 13.00
92055
920551115
ref: 92055
RING-0,HOSE ASSY
€ 6.50
92093
920931306
ref: 92093
SEAL,FORK OUTER TUBE
920931306
€ 14.00
92093A
920931306
ref: 92093A
SEAL,FORK OUTER TUBE
920931306
€ 14.00
92093C
920931359
ref: 92093C
SEAL,FORK OUTER TUBE
920931359
€ 14.00
92093D
920931359
ref: 92093D
SEAL,FORK OUTER TUBE
920931359
€ 14.00
92150
921501172
ref: 92150
BOLT,SOCKET,8X25
€ 1.50
