REAR SUSPENSION

ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA

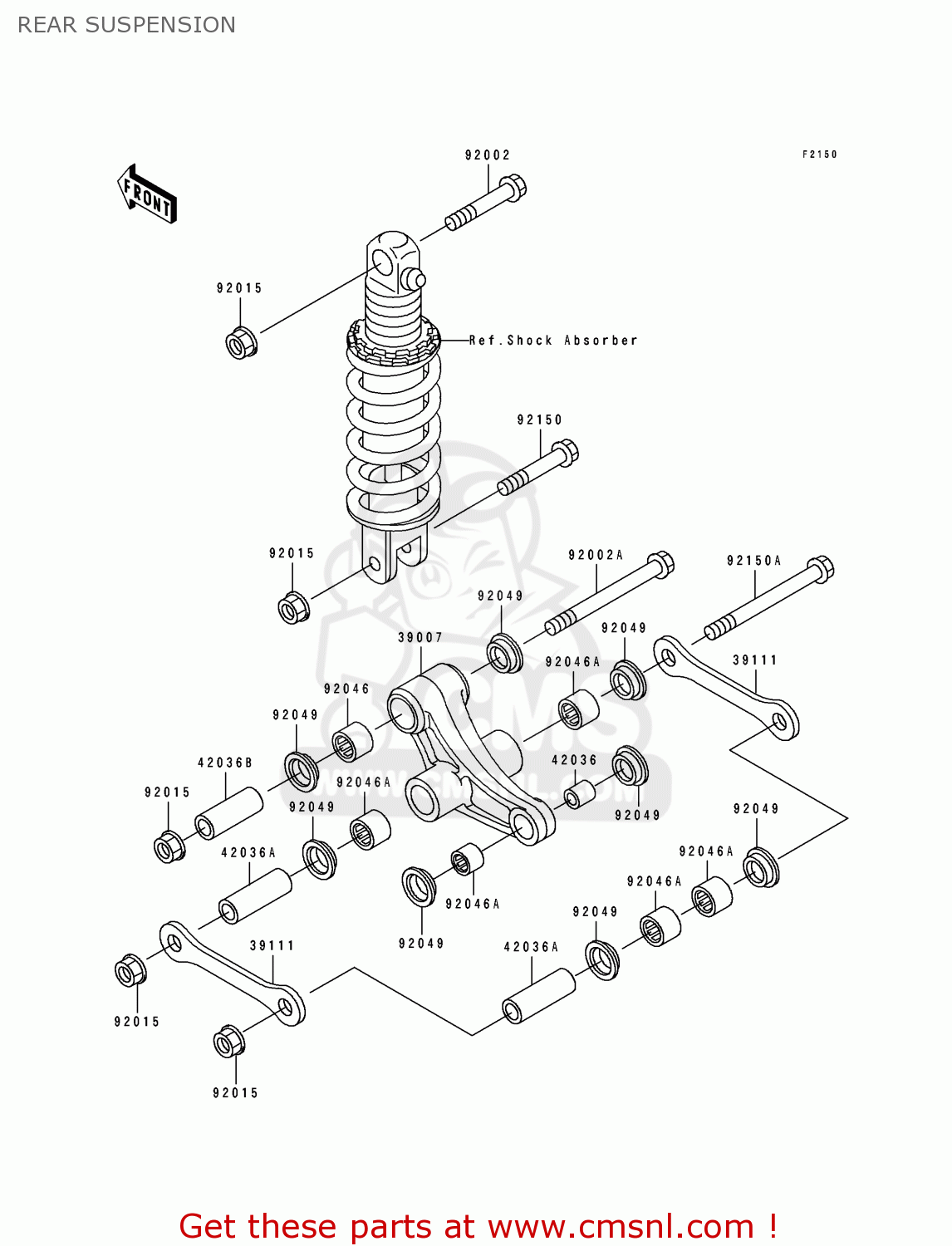

Rear suspension diagram ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA

REAR SUSPENSION ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA

REAR SUSPENSION ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

39007

390071224
ref: 39007

ARM-SUSP,UNI TRAK

€ 217.50

39111

391111131
ref: 39111

ROD-TIE,SUSPENSION

€ 15.00

42036

420361077
ref: 42036

SLEEVE,ARM,RR

€ 11.50

42036A

420361250
ref: 42036A

SLEEVE,12.1X20X88

€ 18.50

42036B

420361288
ref: 42036B

SLEEVE,12.1X20X44.5

€ 13.00

92002

920021130
ref: 92002

BOLT,12X55

€ 7.00

92002A

920021255
ref: 92002A

BOLT,12X85

€ 10.00

92015

920151433
ref: 92015

NUT,12MM

€ 6.00

92046

920461110
ref: 92046

BEARING-NEEDLE,BM2027

€ 22.50

92046A

920461112
ref: 92046A

BEARING-NEEDLE,BM2027

€ 21.50

92049

920491109
ref: 92049

SEAL-OIL,ARM,CNT

€ 6.50

92150

921501258
ref: 92150

BOLT,FLANGED,12X63

€ 8.50

92150A

921501259
ref: 92150A

BOLT,FLANGED,12X112

€ 12.00
