FRAME

ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA

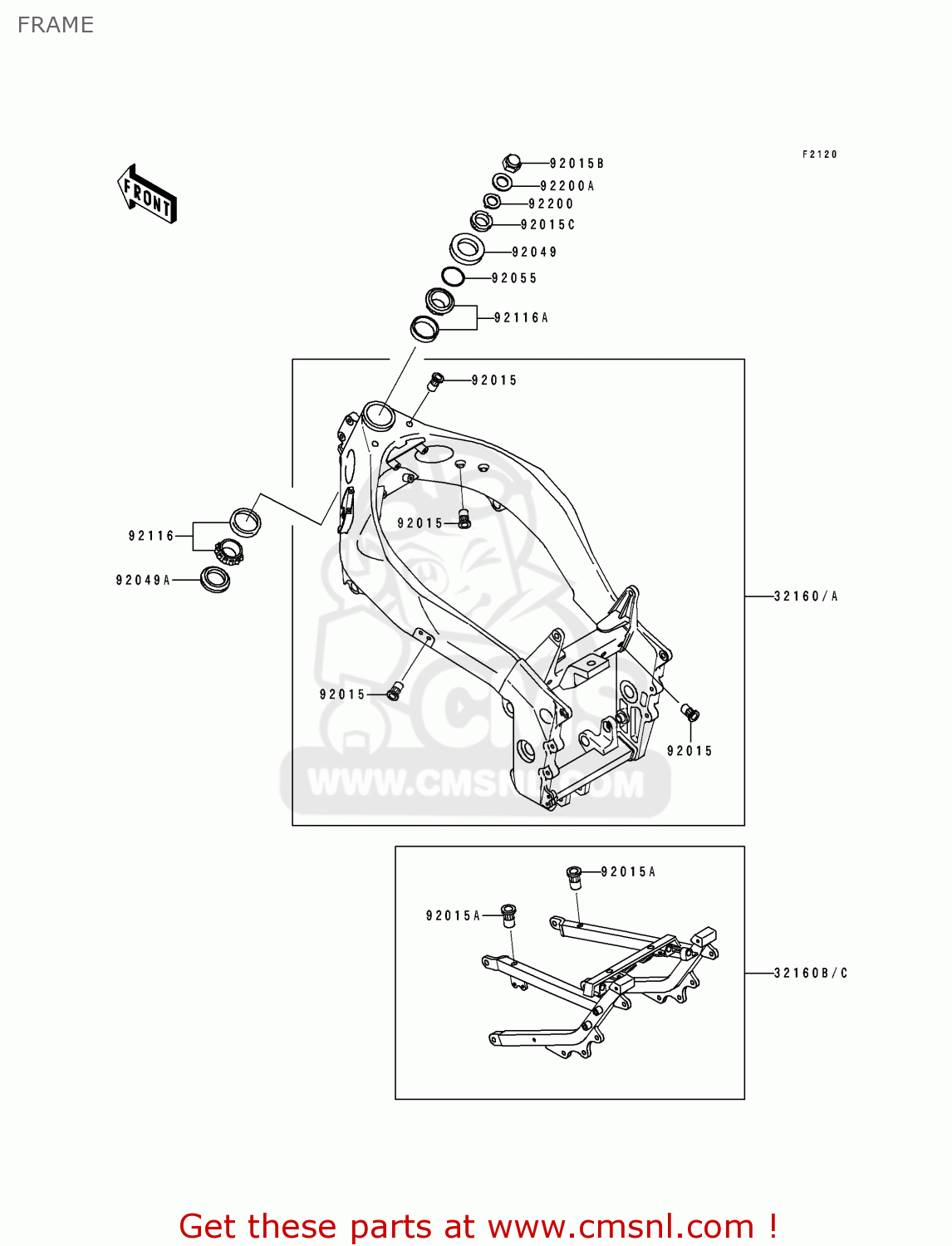

Frame diagram ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA

FRAME ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA

FRAME ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

32160

321601267KF
ref: 32160

FRAME-COMP,AL,FR,SILV

€ 1,184.00

32160A

32160126710
ref: 32160A

FRAME-COMP,AL,FR,BLAC

€ 1,112.00

32160B

321601269KF
ref: 32160B

FRAME-COMP,AL,RR,SILV

€ 451.00

32160C

32160126910
ref: 32160C

FRAME-COMP,AL,RR,BLAC

€ 451.00

92015

920151792
ref: 92015

NUT,POP,6MM,L=16.5

€ 3.00

92015A

920151793
ref: 92015A

NUT,POP,8MM

€ 3.00

92015B

920151847
ref: 92015B

NUT,CAP,25MM

€ 16.00

92015C

920151848
ref: 92015C

NUT,STEERING STEM,35M

€ 32.50

92049

920491382
ref: 92049

SEAL-OIL,XMH 43 75 6.

€ 16.00

92049A

920491383
ref: 92049A

SEAL-OIL,XMHE 43 55 4

€ 13.00

92055

920551452
ref: 92055

RING-O,34.5X2.0

€ 3.00

92116

921161072
ref: 92116

BEARING-ROLLER,32907J

€ 76.50

92116A

921161074
ref: 92116A

BEARING-ROLLER,32907J

€ 76.50

92200

922001083
ref: 92200

WASHER,CLAW,25.5X40X2

€ 4.50

92200A

922001084
ref: 92200A

WASHER,25.5X42X2.3

€ 3.50
