Genuine ZX Kawasaki Parts delivered quickly!


CARBURETOR PARTS

ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA

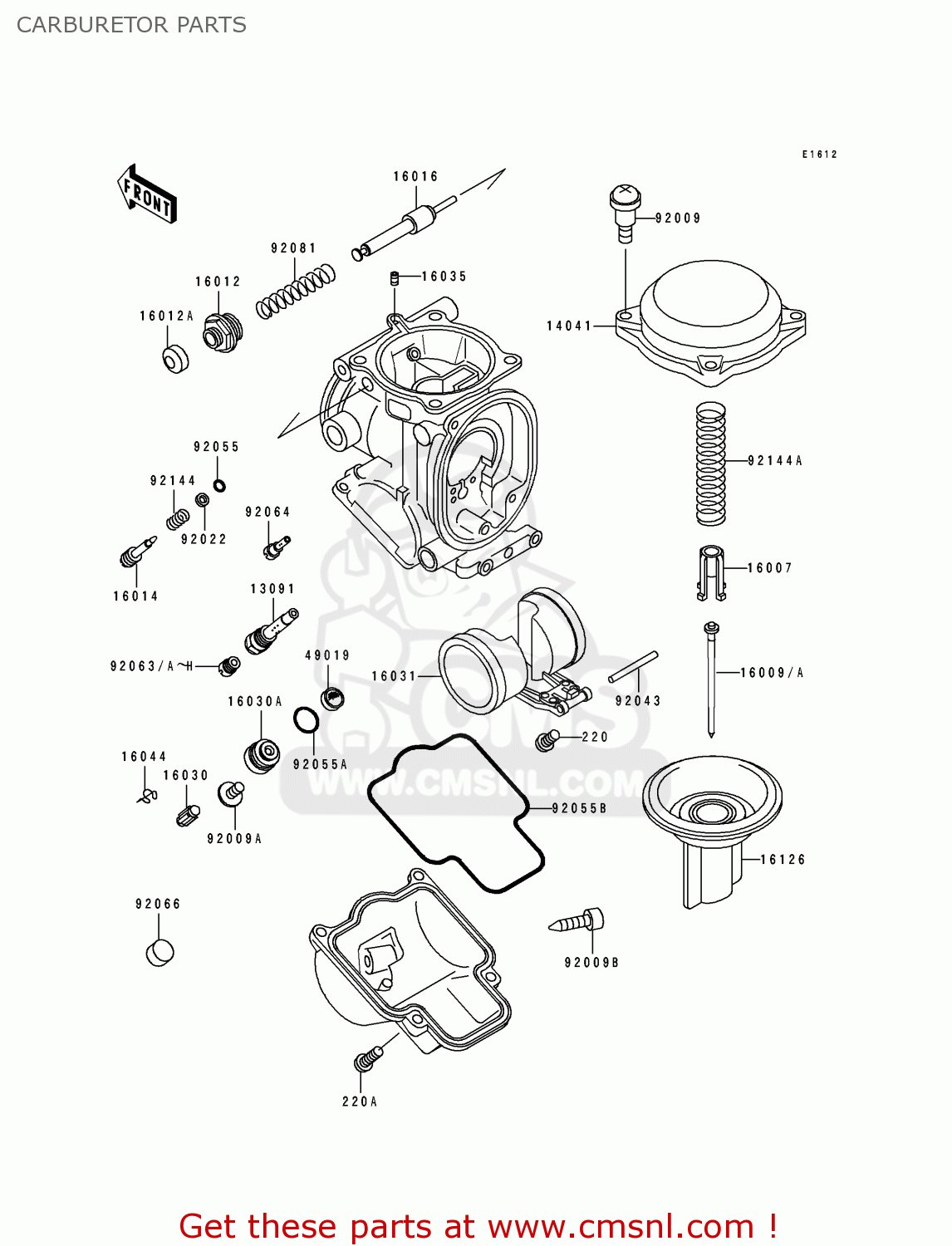

Carburetor parts diagram ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA

CARBURETOR PARTS ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA
CARBURETOR PARTS ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA
CARBURETOR PARTS ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13091
130911837
ref: 13091
HOLDER,NEEDLE JET
130911837
€ 15.50
14041
140411100
ref: 14041
COVER-COMP,MIXING
140411100
€ 61.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
160071117
€ 16.50
16009
160091778
ref: 16009
NEEDLE-JET,N74E
160091778
€ 19.50
16009A
160091779
ref: 16009A
NEEDLE-JET,N14I
160091779
€ 20.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
160121051
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
160121052
€ 10.00
16014
160141073
ref: 16014
SCREW-PILOT AIR
160141073
€ 16.00
16016
160161061
ref: 16016
PLUNGER,STARTER
160161061
€ 30.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16030A
160301068
ref: 16030A
SEAT-VALVE,FLOAT
160301068
€ 42.50
16031
160311070
ref: 16031
FLOAT
160311070
€ 40.50
16035
160351055
ref: 16035
JET-AIR,LEAK
160351055
€ 10.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
16044007
€ 4.00
16126
161261237
ref: 16126
VALVE,VACUUM
161261237
€ 185.50
49019
490193707
ref: 49019
FILTER-FUEL,STRAINER
490193707
€ 7.00
92009
920091549
ref: 92009
SCREW,4X4.4
920091549
€ 3.00
92009A
920091550
ref: 92009A
SCREW,4X8
920091550
€ 2.50
92009B
920091551
ref: 92009B
SCREW,DRAIN
920091551
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
92043
920431207
ref: 92043
PIN,FLOAT
920431207
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551425
ref: 92055A
RING-O,VALVE SEAT
920551425
€ 4.50
92055B
920551426
ref: 92055B
RING-O,FLOAT CHAMBER
920551426
€ 13.00
92063
920631345
ref: 92063
JET-MAIN,#160
920631345
€ 9.50
92063A
920631347
ref: 92063A
JET-MAIN,#165
920631347
€ 10.50
92063B
920631386
ref: 92063B
JET-MAIN,#170
920631386
€ 10.50
92063C
920631387
ref: 92063C
CN
JET-MAIN,#175
920631387
€ 11.00
92063D
920631388
ref: 92063D
JET-MAIN,#180
920631388
€ 10.50
92063E
920631390
ref: 92063E
JET-MAIN,#185
920631390
€ 9.00
92063F
920631391
ref: 92063F
JET-MAIN,#190
920631391
€ 10.50
92063G
920631392
ref: 92063G
JET-MAIN,#195
920631392
€ 8.00
92063H
920631401
ref: 92063H
JET-MAIN,#200
920631401
€ 8.00
220
220D0408
ref: 220
SCREW-PAN-CROS
220D0408
€ 0.50
220A
220D0414
ref: 220A
SCREW-PAN-CROS
220D0414
€ 2.00
92064
920641050
ref: 92064
JET-PILOT,#38
920641050
€ 12.50
92066
920661051
ref: 92066
CAUS
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92081
920811761
ref: 92081
SPRING,STARTER PLUNGE
920811761
€ 6.00
92144
921441349
ref: 92144
SPRING,PILOT AIR SCRE
921441349
€ 6.00
92144A
921441517
ref: 92144A
SPRING
921441517
€ 13.50
