FRAME FITTINGS

ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA

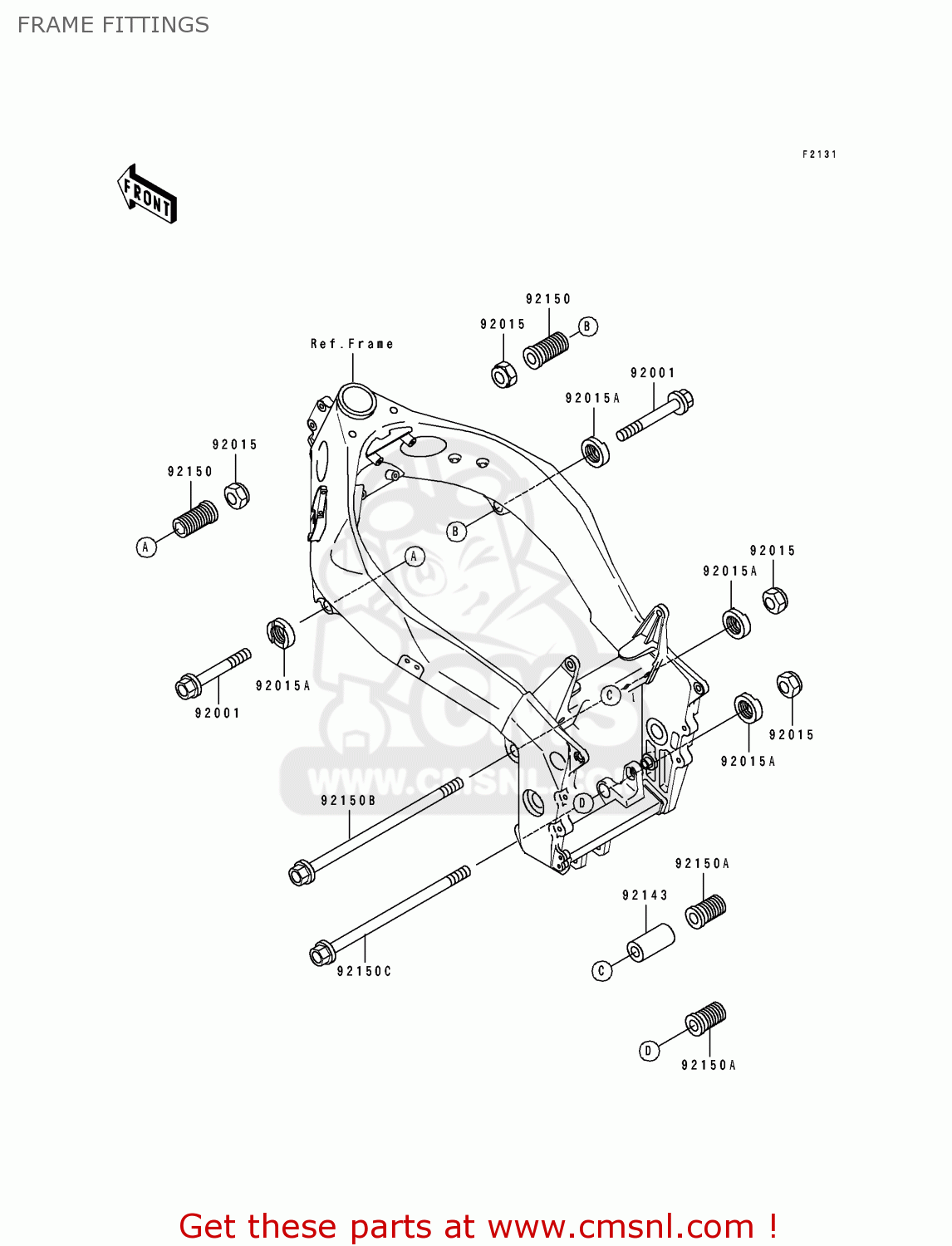

Frame fittings diagram ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

92001

920011937
ref: 92001

BOLT,12X90

€ 10.50

92015

920151190
ref: 92015

NUT,LOCK,12MM,BLACK

€ 4.50

92015A

920151846
ref: 92015A

NUT,ENGINE MOUNT,22MM

€ 14.50

92143

921431482
ref: 92143

COLLAR,12.5X26X51

€ 18.50

92150

921501470
ref: 92150

BOLT,ENGINE MOUNT,22X

€ 24.50

92150A

921501471
ref: 92150A

BOLT,ENGINE MOUNT,22X

€ 26.00

92150B

921501472
ref: 92150B

BOLT,FLANGED,12X243

€ 19.50

92150C

921501473
ref: 92150C

BOLT,FLANGED,12X221

€ 18.50
