CYLINDER/PISTON(S)

ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA

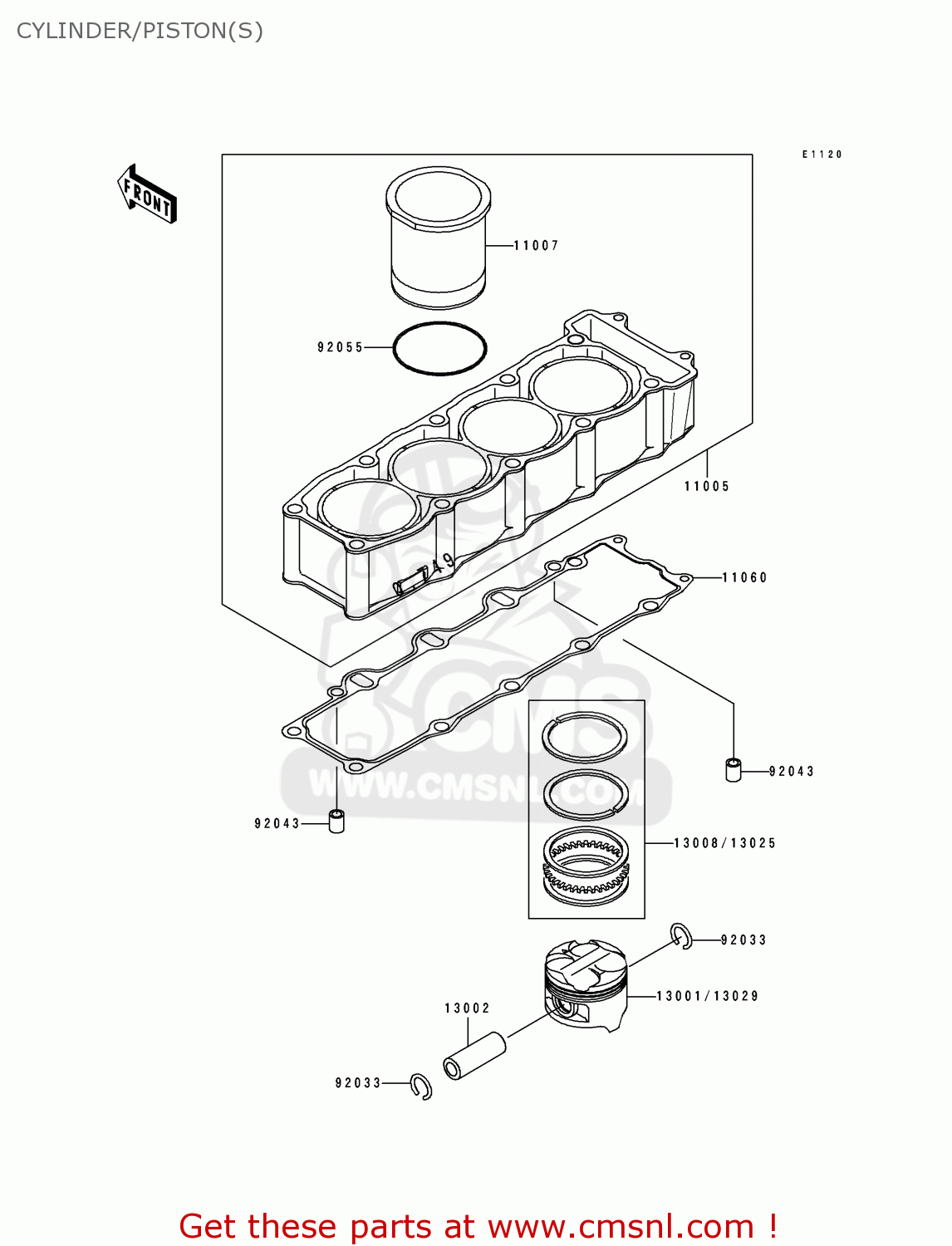

Cylinder/piston(s) diagram ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11005

110051656
ref: 11005

CYLINDER-ENGINE

€ 1,243.50

11007

110071115
ref: 11007

LINER-CYLINDER

€ 90.00

11060

110601093
ref: 11060

GASKET,CYLINDER BASE (NAS)

€ 41.50

13001

130011347
ref: 13001

PISTON-ENGINE,STD

€ 59.00

13002

130021086
ref: 13002

PIN-PISTON

€ 19.50

13008

130081136
ref: 13008

RING-SET-PISTON,STD

€ 69.00

13025

130251113
ref: 13025

RING-SET-PISTON L,O/S

€ 60.50

13029

130291208
ref: 13029

PISTON-ENGINE L,O/S 0

€ 76.00

92033

920331099
ref: 92033

RING-SNAP,18MM

€ 0.50

92043

920431037
ref: 92043

PIN,DOWEL,10X8.2X14

€ 0.50

92055

920551213
ref: 92055

RING-O,76.5X2.5

€ 6.00
