BRAKE PEDAL/TORQUE LINK

ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA

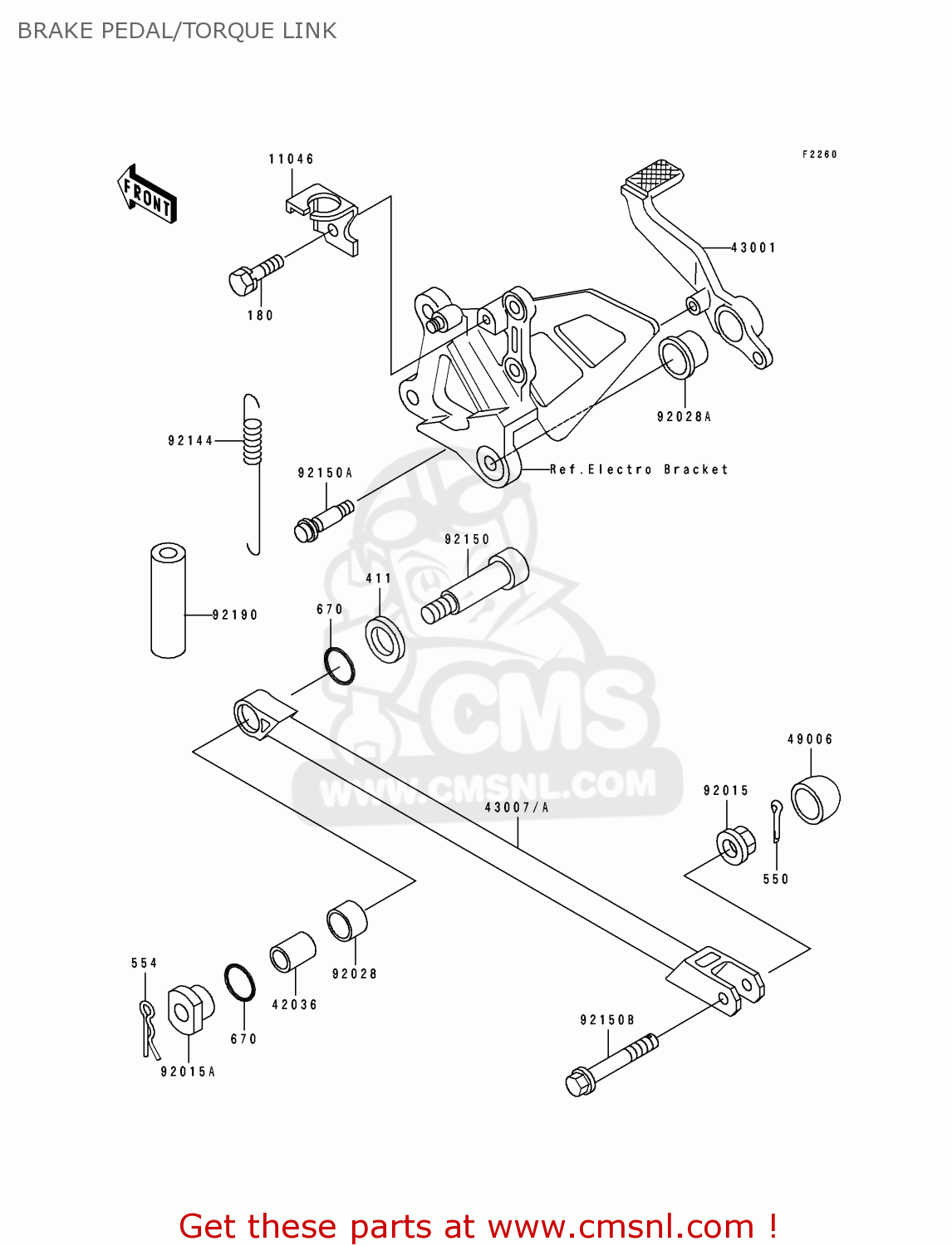

Brake pedal/torque link diagram ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA

BRAKE PEDAL/TORQUE LINK ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA
BRAKE PEDAL/TORQUE LINK ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA
BRAKE PEDAL/TORQUE LINK ZX750L1 NINJA ZX7 1993 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
180
180H0614
ref: 180
BOLT-UPSET-WS
€ 1.00
411
411D1000
ref: 411
WASHER-PLAIN,10MM
411D1000
€ 3.00
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
554
554A0800
ref: 554
PIN-SNAP,8MM
554A0800
€ 1.00
670
670B2016
ref: 670
O RING,16MM
670B2016
€ 1.00
11046
110461252
ref: 11046
BRACKET,REAR BRAKE SW
110461252
€ 5.50
42036
420361242
ref: 42036
SLEEVE,10.1X16X20
420361242
€ 9.50
43001
430011274
ref: 43001
LEVER-BRAKE,PEDAL
430011274
€ 90.50
43007
430071166KF
ref: 43007
ROD-TORQUE,SILVER NO.
€ 87.50
43007A
43007116610
ref: 43007A
ROD-TORQUE,BLACK
€ 72.00
49006
490061218
ref: 49006
BOOT
490061218
€ 3.50
92015
920151432
ref: 92015
NUT,8MM
920151432
€ 4.50
92015A
920151747
ref: 92015A
NUT,8MM
920151747
€ 12.00
92028
920281468
ref: 92028
BUSHING
920281468
€ 6.00
92028A
920281576
ref: 92028A
BUSHING
920281576
€ 12.50
92144
921441421
ref: 92144
SPRING,BRAKE PEDAL RE
921441421
€ 6.50
92150
921501167
ref: 92150
BOLT,SOCKET,8X61
921501167
€ 12.00
92150A
921501439
ref: 92150A
BOLT
921501439
€ 8.00
92150B
921501539
ref: 92150B
BOLT,FLANGED,8X47
921501539
€ 6.50
92190
921901170
ref: 92190
TUBE,AIR SWITCH VALVE
921901170
€ 10.00
