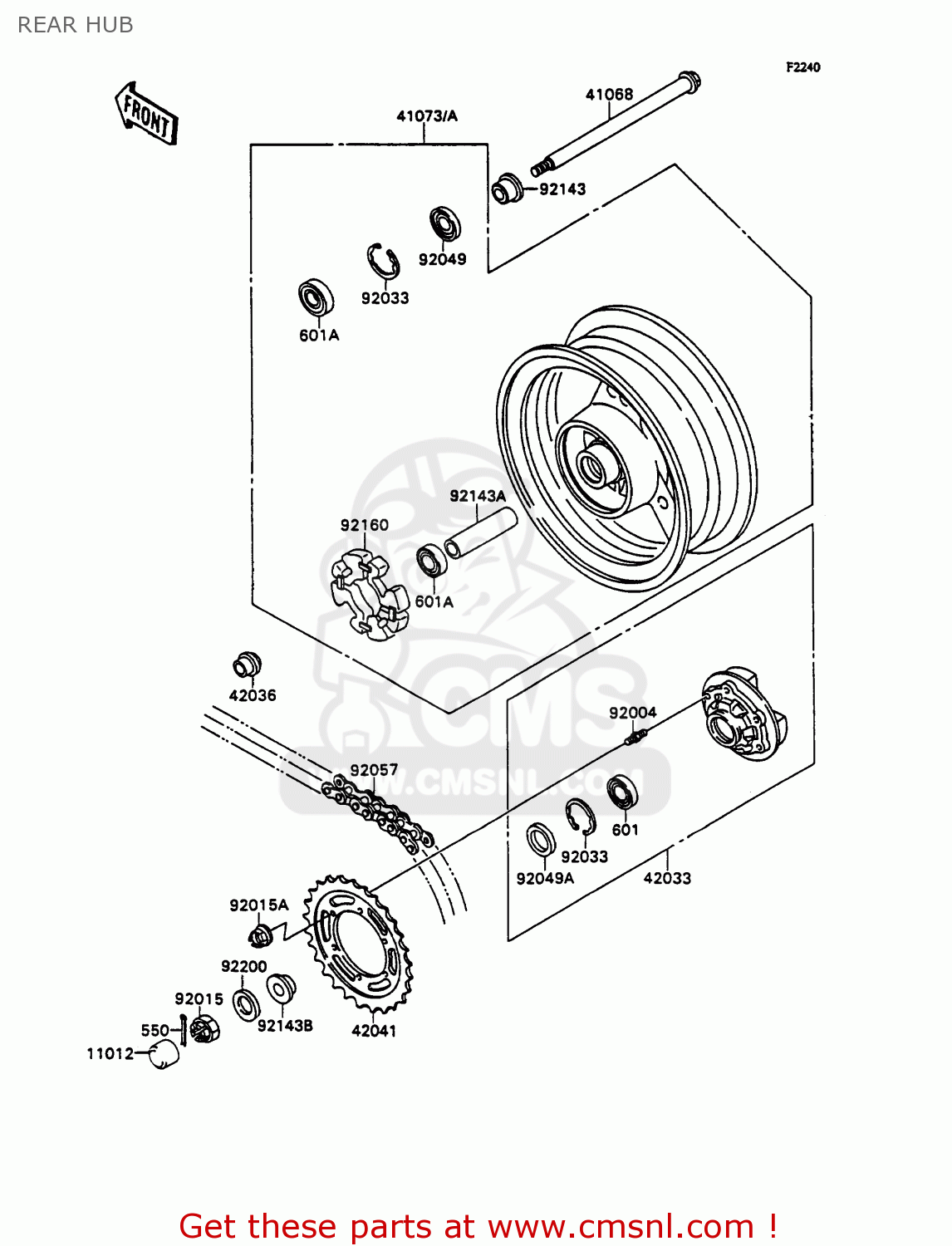

REAR HUB

ref

part #

description

quantity

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6205G
ref: 601

BEARING BALL

€ 14.00

601A

601B6304UG
ref: 601A

BEARING-BALL,#6304UUC

€ 34.50

11012

110121590
ref: 11012
FG

CAP,AXLE NUT

€ 3.50

41068

410681315
ref: 41068

AXLE,RR

€ 61.50

41073

410731470CJ
ref: 41073

WHEEL-ASSY,RR,L.GREEN

€ 757.00

41073A

410731470X4
ref: 41073A
AREUFGFRGRITNRSPSTUK

WHEEL-ASSY,RR,F.RED

€ 757.00

42033

420331139
ref: 42033

COUPLING-ASSY,RR HUB

€ 204.00

42036

420361251
ref: 42036

SLEEVE,RR HUB,L=23

€ 18.00

42041

420411355
ref: 42041

SPROCKET-HUB,46T

€ 55.00

92004

920041151
ref: 92004

STUD,10X19.5

€ 6.50

92015

42045018
ref: 92015

NUT,18MM

€ 7.50

92015A

920151720
ref: 92015A

NUT,10MM

€ 3.50

92033

920331043
ref: 92033

RING,SNAP,56.2M/M

€ 6.00

92049

920491061
ref: 92049

SEAL-OIL,28X52X5

€ 13.00

92049A

92052006
ref: 92049A

OIL SEAL WTC35527

€ 6.50

92057

920571304
ref: 92057

CHAIN,DRIVE,EK50MV-X

€ 215.00

92143

921431042
ref: 92143

COLLAR,L=23

€ 19.50

92143A

921431303
ref: 92143A

COLLAR,RR HUB,L=133

€ 27.50

92143B

921431399
ref: 92143B

COLLAR,RR AXLE,L=18

€ 22.50

92160

921601203
ref: 92160

DAMPER,SHOCK,RR HUB

€ 60.00

92200

922001043
ref: 92200

WASHER,18.5X32X2.3

€ 4.50
