AIR CLEANER

ZX750H2 ZXR750 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

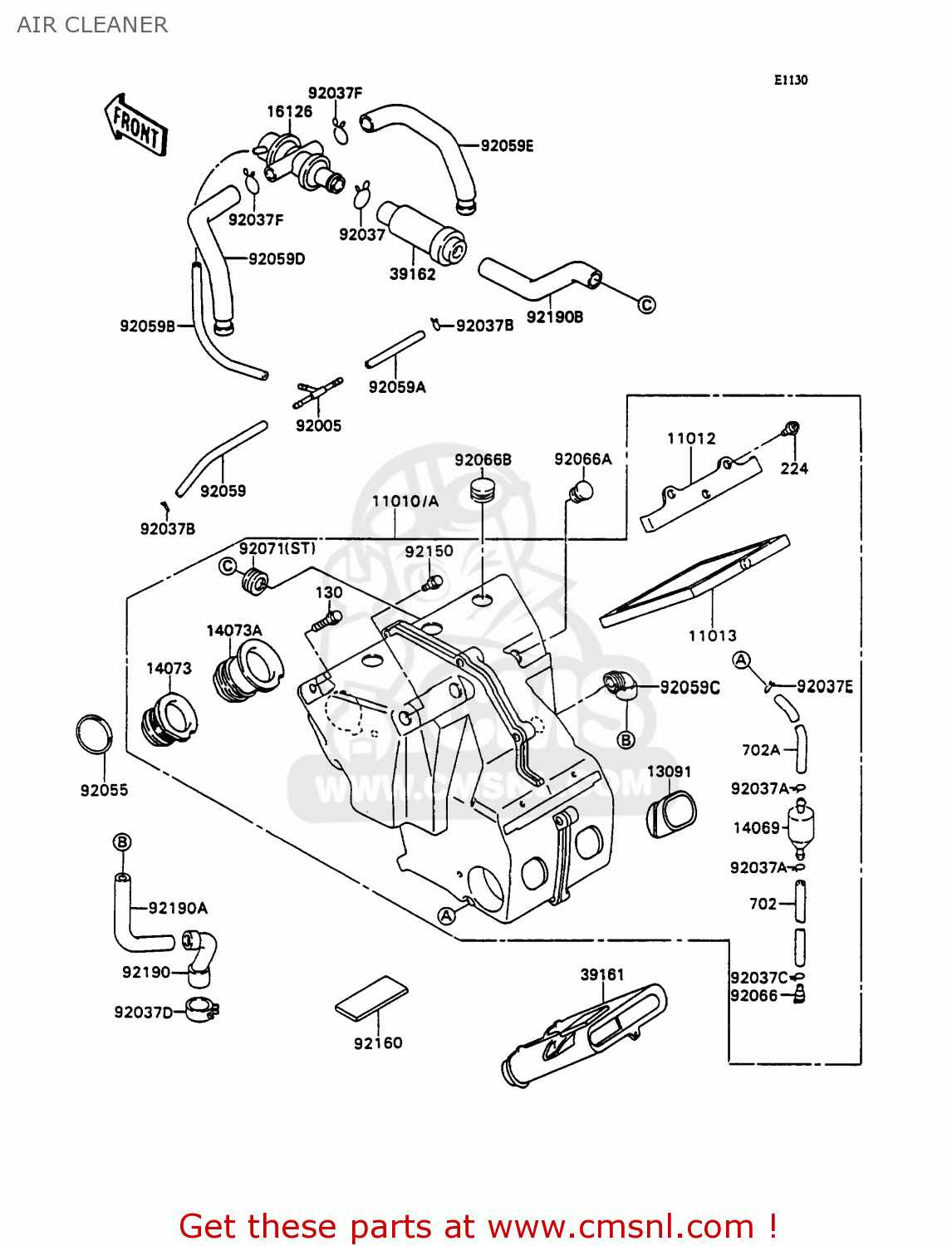

Air cleaner diagram ZX750H2 ZXR750 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

AIR CLEANER ZX750H2 ZXR750 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
AIR CLEANER ZX750H2 ZXR750 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
AIR CLEANER ZX750H2 ZXR750 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11010
110101399
ref: 11010
ST
FILTER-ASSY-AIR
€ 246.50
11010A
110101400
ref: 11010A
AREUFGFRGRITNRSDSPUK
FILTER-ASSY-AIR
€ 271.50
11012
110121687
ref: 11012
CAP,AIR FILTER
110121687
€ 9.00
11013
110131180
ref: 11013
ELEMENT-AIR FILTER
110131180
€ 26.00
13091
130911674
ref: 13091
HOLDER,AIR INTAKE DUC
130911674
€ 15.00
14069
140691051
ref: 14069
BREATHER
140691051
€ 6.50
14073
140731432
ref: 14073
DUCT,#1&#4
€ 14.50
14073A
140731433
ref: 14073A
DUCT,#2&#3
140731433
€ 19.00
16126
161261104
ref: 16126
ST
VALVE,AIR SWITCH
161261104
€ 176.00
39161
391611062
ref: 39161
SILENCER-ASSY-INTAKE
391611062
€ 62.00
39162
391621003
ref: 39162
ST
SILENCER-INTAKE
391621003
€ 59.00
92005
920051017
ref: 92005
ST
FITTING,TUBE
920051017
€ 6.50
92037
920371076
ref: 92037
ST
CLAMP,TUBE
920371076
€ 4.00
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
92037147
€ 4.50
92037B
920371610
ref: 92037B
ST
CLAMP
920371610
€ 1.50
92037C
920371712
ref: 92037C
CLAMP
920371712
€ 3.00
92037D
920371860
ref: 92037D
CLAMP
920371860
€ 6.00
92037E
920371972
ref: 92037E
CLAMP,TUBE
920371972
€ 2.50
92037F
92037213
ref: 92037F
ST
CLAMP, BREATHER TUBE
92037213
€ 2.50
92055
920551434
ref: 92055
RING-O,67.7X3.1
920551434
€ 6.50
92059
920591032
ref: 92059
ST
TUBE,4X9X190M/M
€ 12.50
92059A
920591058
ref: 92059A
ST
TUBE,4X9X100
€ 12.50
92059B
920591068
ref: 92059B
ST
TUBE,4 X9 X230M/M
€ 12.50
92059C
920591391
ref: 92059C
TUBE,BREATHER
920591391
€ 12.50
92059D
920591717
ref: 92059D
ST
TUBE,AIR SWITH-HEAD
€ 13.50
92059E
920591765
ref: 92059E
ST
TUBE
920591765
€ 11.50
92066
920661211
ref: 92066
PLUG
920661211
€ 5.50
92066A
920661306
ref: 92066A
PLUG
920661306
€ 3.50
92066B
920661324
ref: 92066B
PLUG
920661324
€ 2.50
130
130D0535
ref: 130
BOLT-FLANGED
130D0535
€ 2.00
224
224B0616
ref: 224
SCREW-PAN-WP-CROS
€ 0.50
702
702A07150
ref: 702
TUBE-RUBBER,7X10X150
702A07150
€ 4.00
702A
702A07330
ref: 702A
TUBE-RUBBER
€ 7.00
92071
920711028
ref: 92071
ST
GROMMET AIR FILTER
€ 4.50
92150
921501363
ref: 92150
BOLT
921501363
€ 2.50
92160
921601094
ref: 92160
DAMPER,BATTERY
921601094
€ 3.00
92190
920591988
ref: 92190
TUBE,BLOWBY
€ 10.00
92190A
921901010
ref: 92190A
TUBE,BLOWBY
€ 10.50
92190B
921901121
ref: 92190B
ST
TUBE,AIR SWITCH VALVE
€ 8.50
