CRANKCASE BOLT PATTERN

ZX750H2 ZXR750 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

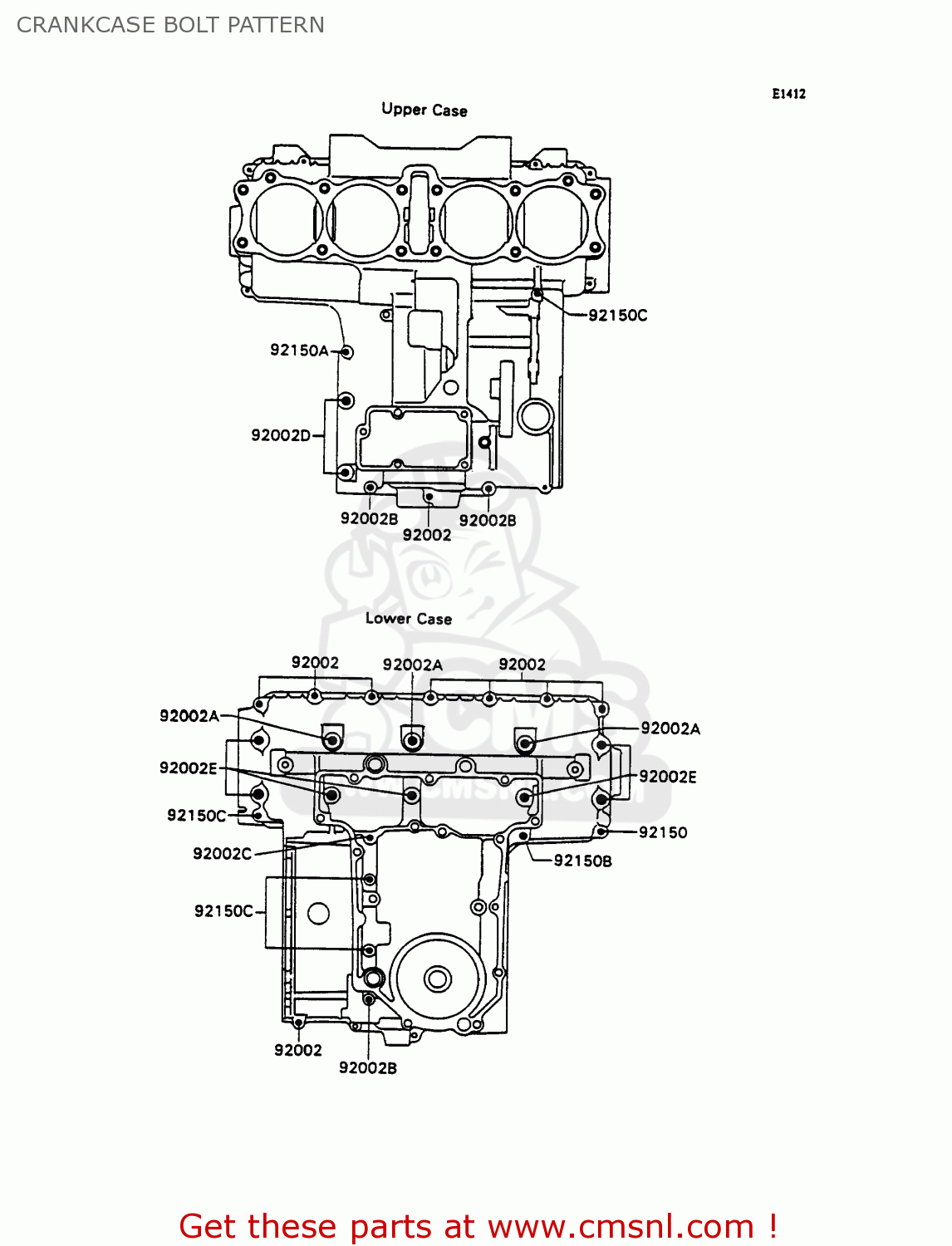

Crankcase bolt pattern diagram ZX750H2 ZXR750 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

92002

920011899
ref: 92002

BOLT,6X38

€ 2.50

92002A

920021057
ref: 92002A

BOLT,8X90

€ 6.50

92002B

920021791
ref: 92002B

BOLT,6X110

€ 3.50

92002C

920021792
ref: 92002C

BOLT,6X130

€ 4.00

92002D

920021793
ref: 92002D

BOLT,8X70

€ 3.50

92002E

920021794
ref: 92002E

BOLT,8X83

€ 4.50

92150

921501300
ref: 92150

BOLT,6X30

€ 2.00

92150A

921501301
ref: 92150A

BOLT,6X38

€ 2.50

92150B

921501302
ref: 92150B

BOLT,6X55

€ 4.50

92150C

921501312
ref: 92150C

BOLT

€ 3.50
