Genuine ZX Kawasaki Parts delivered quickly!


RADIATOR

ZX750H2 ZXR750 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

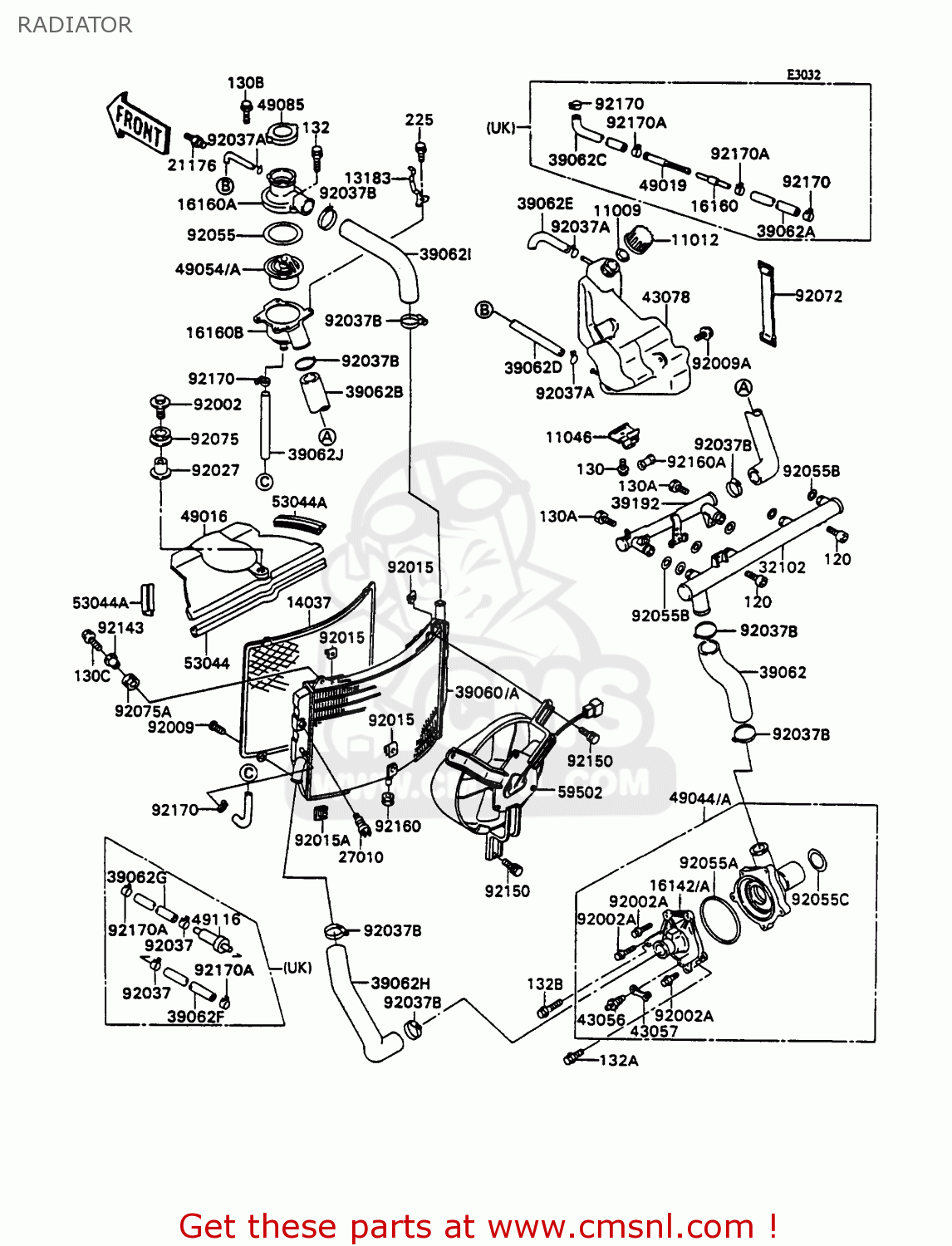

Radiator diagram ZX750H2 ZXR750 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

RADIATOR ZX750H2 ZXR750 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
RADIATOR ZX750H2 ZXR750 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
RADIATOR ZX750H2 ZXR750 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
11046
110461580
ref: 11046
BRACKET
110461580
€ 42.00
13183
131831472
ref: 13183
PLATE
131831472
€ 2.50
14037
140371131
ref: 14037
SCREEN
140371131
€ 52.50
16142
161421092
ref: 16142
AREUFGFRGRITNRSDSPST
COVER-PUMP
€ 46.50
16142A
161421096
ref: 16142A
UK
COVER-PUMP
€ 46.50
16160
161601151
ref: 16160
UK
BODY,FILTER
161601151
€ 6.50
16160A
161601152
ref: 16160A
BODY,UPP
€ 57.00
16160B
161601155
ref: 16160B
BODY,THERMOSTAT
€ 37.50
21176
211761054
ref: 21176
SENSOR,WATER
211761054
€ 49.50
27010
270101202
ref: 27010
SWITCH,FAN
270101202
€ 74.00
32102
321021243
ref: 32102
PIPE,COOLING
321021243
€ 83.50
39060
390601097
ref: 39060
AREUFGFRGRITNRSDSPST
RADIATOR
€ 656.00
39060A
390601098
ref: 39060A
UK
RADIATOR
€ 595.00
39062
390621197
ref: 39062
HOSE-COOLING
390621197
€ 17.00
39062A
390621309
ref: 39062A
UK
HOSE-COOLING
€ 5.50
39062B
390621325
ref: 39062B
HOSE-COOLING
390621325
€ 37.50
39062C
390621327
ref: 39062C
UK
HOSE-COOLING,THERMO-F
€ 9.00
39062D
390621340
ref: 39062D
HOSE-COOLING,CAP-RESE
390621340
€ 20.00
39062E
390621360
ref: 39062E
HOSE-COOLING
€ 16.00
39062F
390621383
ref: 39062F
UK
HOSE-COOLING,CARBURET
390621383
€ 3.50
39062G
390621386
ref: 39062G
UK
HOSE-COOLING
390621386
€ 6.00
39062H
390621405
ref: 39062H
HOSE-COOLING,RADIATOR
390621405
€ 20.00
39062I
390621406
ref: 39062I
HOSE-COOLING,THERMO-R
390621406
€ 16.00
39062J
390621407
ref: 39062J
AREUFGFRGRITNRSDSPST
HOSE-COOLING,BY PASS
€ 16.00
39192
391921036
ref: 39192
PIPE-WATER
€ 66.00
43056
430561051
ref: 43056
BREATHER-BRAKE
430561051
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
430571001
€ 3.00
43078
430781097
ref: 43078
RESERVOIR
430781097
€ 41.00
49016
490161155
ref: 49016
COVER-SEAL
€ 28.00
49019
490191068
ref: 49019
UK
FILTER-FUEL
490191068
€ 4.00
49044
490441065
ref: 49044
AREUFGFRGRITNRSDSPST
PUMP-WATER
490441065
€ 181.50
49044A
490441066
ref: 49044A
UK
PUMP-WATER
€ 181.50
49054
490541001
ref: 49054
AREUFGFRGRITNRSDSPST
THERMOSTAT
490541001
€ 44.50
49054A
490541051
ref: 49054A
UK
THERMOSTAT
490541051
€ 44.50
49085
490851062
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
49116
491161081
ref: 49116
UK
VALVE-ASSY
491161081
€ 85.00
53044
530441180
ref: 53044
TRIM
€ 15.00
53044A
530441220
ref: 53044A
TRIM
530441220
€ 4.50
59502
595021090
ref: 59502
FAN-ASSY
595021090
€ 540.50
92002
920021135
ref: 92002
BOLT,6X25
920021135
€ 2.50
92002A
920021392
ref: 92002A
BOLT,6X22
920021392
€ 3.00
92009
920091261
ref: 92009
SCREW,TAPPING,6MM
920091261
€ 2.00
92009A
920091308
ref: 92009A
SCREW,6X14
€ 2.00
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92015A
920151758
ref: 92015A
NUT
920151758
€ 4.50
92027
920271062
ref: 92027
COLLAR,SEAT
920271062
€ 4.50
92037
920371181
ref: 92037
UK
CLAMP
920371181
€ 1.00
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
92037147
€ 4.50
92037B
920371985
ref: 92037B
CLAMP,COOLING HOSE
€ 7.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92055A
920551271
ref: 92055A
RING-O,WATER PUMP
920551271
€ 7.00
92055B
920551282
ref: 92055B
RING-O
920551282
€ 3.00
92055C
920551378
ref: 92055C
RING-O,WATER PUMP
920551378
€ 5.00
92072
920721253
ref: 92072
BAND,L=200
920721253
€ 13.50
92075
920751123
ref: 92075
DAMPER,RUBBER
920751123
€ 3.00
92075A
920751665
ref: 92075A
DAMPER
920751665
€ 5.00
92143
921431063
ref: 92143
COLLAR
921431063
€ 6.00
92150
921501186
ref: 92150
BOLT
921501186
€ 3.00
92160
921601007
ref: 92160
DAMPER
921601007
€ 3.50
92160A
921601129
ref: 92160A
DAMPER
€ 3.00
92170
921701166
ref: 92170
CLAMP
€ 5.50
92170A
921702042
ref: 92170A
UK
CLAMP
921702042
€ 1.00
120
120S0610
ref: 120
BOLT-SOCKET
120S0610
€ 1.50
130
130J0608
ref: 130
BOLT-FLANGED,6X8
€ 2.50
130A
130J0612
ref: 130A
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130B
130J0614
ref: 130B
BOLT-FLANGED,6X14,BLA
130J0614
€ 1.50
130C
130J0620
ref: 130C
BOLT-FLANGED,6X20
130J0620
€ 2.50
132
132J0620
ref: 132
BOLT-FLANGED-SMALL
132J0620
€ 2.00
132A
132J0630
ref: 132A
BOLT-FLANGED-SMALL
132J0630
€ 2.50
132B
132J0650
ref: 132B
BOLT-FLANGED-SMALL
132J0650
€ 3.00
225
225C0412
ref: 225
SCREW-PAN-WSP-CROS
225C0412
€ 2.00
