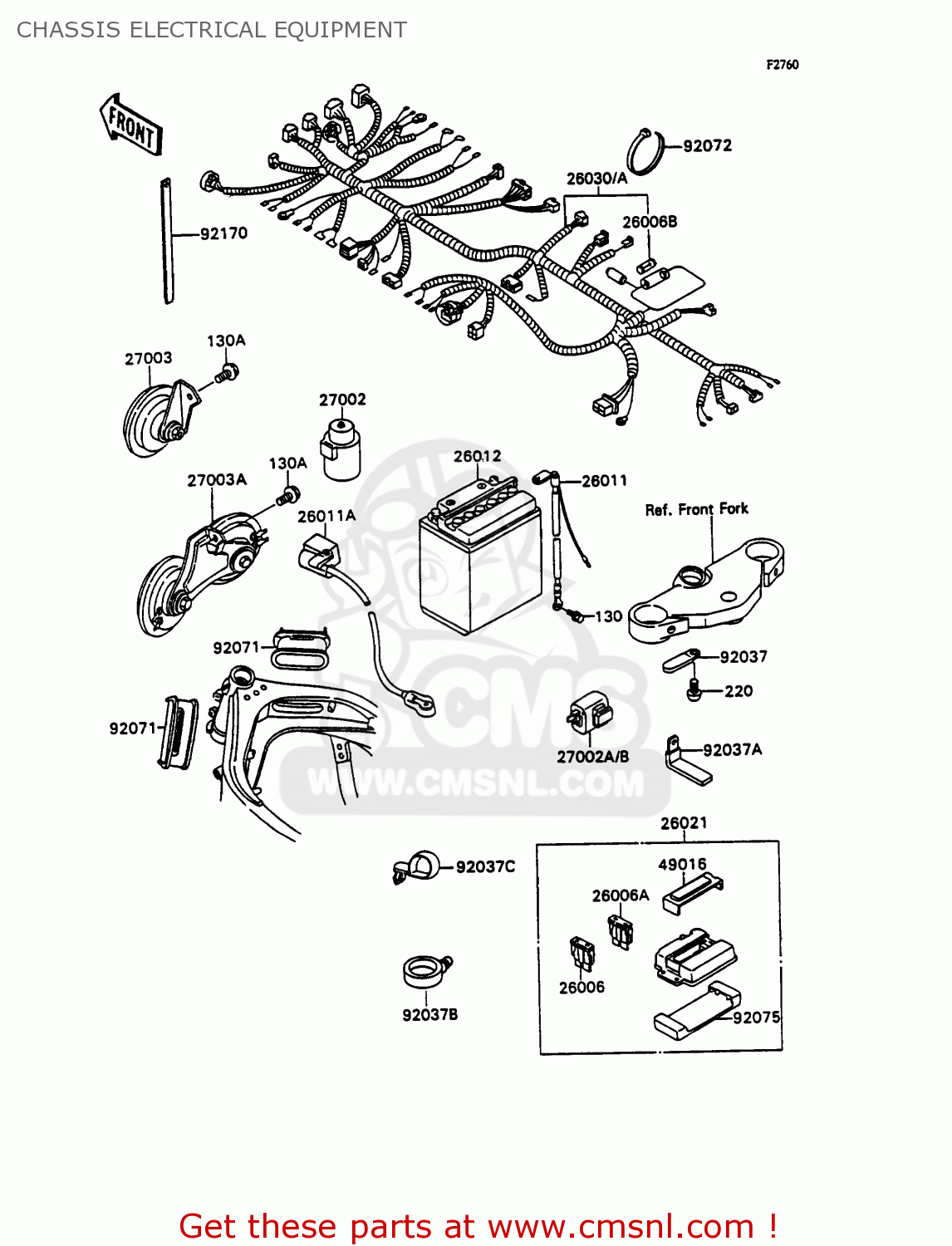

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

130

130B0610
ref: 130

BOLT,FLANGED,6X10

€ 0.50

130A

130J0614
ref: 130A

BOLT-FLANGED,6X14,BLA

€ 1.50

220

220C0510
ref: 220

SCREW-PAN-CROS

€ 2.50

26006

260061006
ref: 26006

FUSE,30A-G

€ 3.00

26006A

260061007
ref: 26006A

FUSE, 10A-R

€ 3.00

26006B

260061056
ref: 26006B

FUSE,20A,L=30

€ 3.00

26011

260111189
ref: 26011

WIRE-LEAD,BATTERY GRO

€ 21.50

26011A

260111475
ref: 26011A

WIRE-LEAD,BATTERY(+)

€ 16.50

26012

260121249
ref: 26012

BATTERY,12V 12AH,YB12

€ 70.00

26021

260211070
ref: 26021

JUNCTION BOX

€ 106.50

26030

260301033
ref: 26030
AREUFGFRGRNRSDSPSTUK

HARNESS,MAIN

€ 254.50

26030A

260301034
ref: 26030A
IT

HARNESS,MAIN

€ 213.50

27002

270021051
ref: 27002

RELAY-ASSY

€ 32.00

27002A

270021059
ref: 27002A
AREUFRGRITNRSPSTUK

RELAY-ASSY,TURN SIGNA

€ 43.50

27002B

270021061
ref: 27002B
FGSD

RELAY-ASSY,TURN SIGNA

€ 57.00

27003

270031312
ref: 27003
AREUFGFRGRNRSDSPSTUK

HORN

€ 45.00

27003A

270031331
ref: 27003A
IT

HORN

€ 58.50

49016

490161124
ref: 49016

COVER-SEAL,FUSE

€ 6.00

92037

920371539
ref: 92037

CLAMP,L=45

€ 3.00

92037A

920371680
ref: 92037A

CLAMP

€ 1.50

92037B

920371827
ref: 92037B

CLAMP,HOSE

€ 5.00

92037C

920371903
ref: 92037C

CLAMP

€ 5.00

92071

920711180
ref: 92071

GROMMET,HARNESS,LH

€ 13.50

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92075

920751688
ref: 92075

DAMPER,FUSE & RELAY B

€ 9.50

92170

921701114
ref: 92170

CLAMP

€ 5.00

all assemblies
