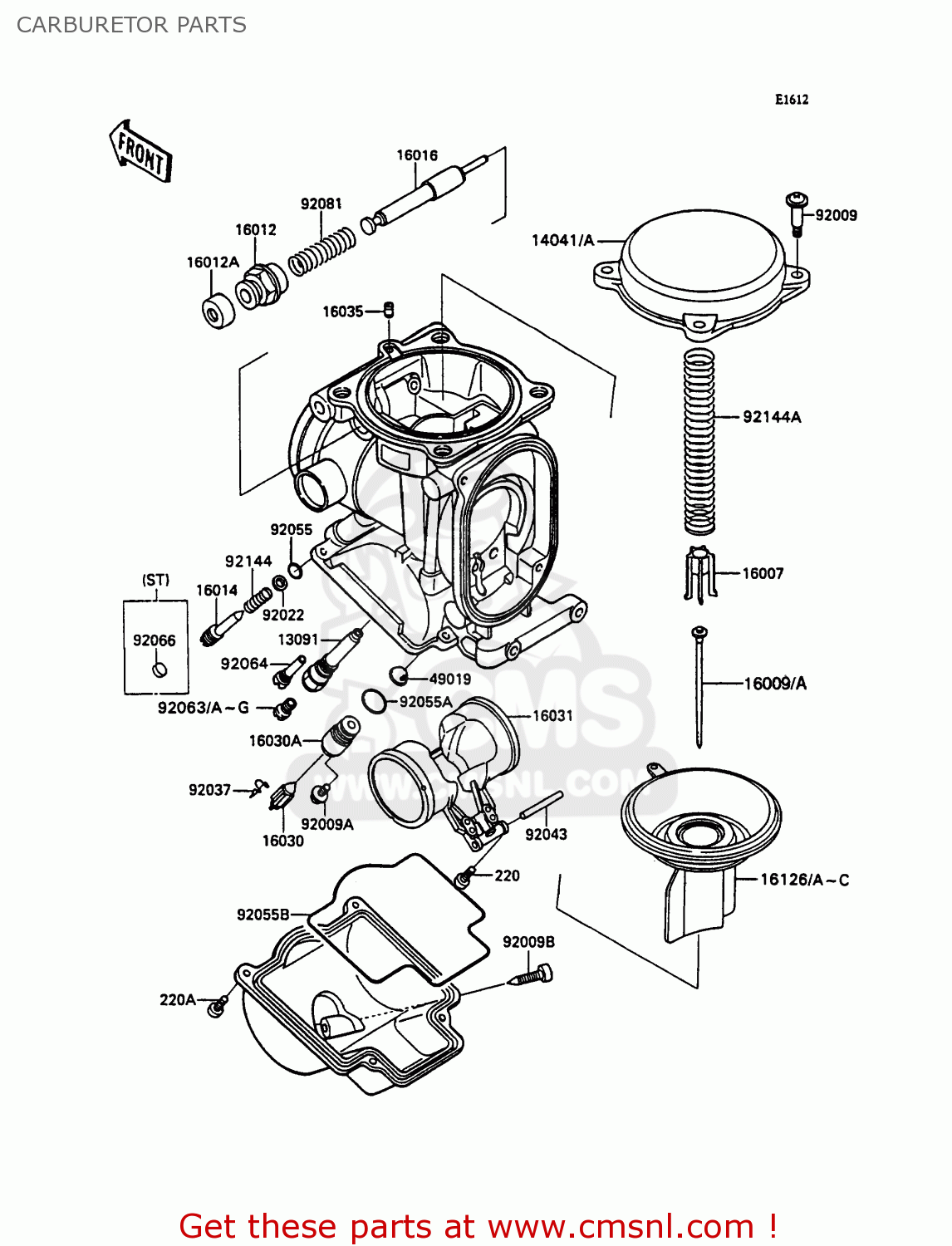

CARBURETOR PARTS

ref

part #

description

quantity

13091

130911634
ref: 13091

HOLDER,NEEDLE JET

€ 15.50

14041

140411100
ref: 14041
EUFRGRITNRSDSPSTUK

COVER-COMP,MIXING

€ 61.50

14041A

140411102
ref: 14041A
ARFG

COVER-COMP,MIXING

€ 48.50

16007

160071117
ref: 16007

SEAT-SPRING,THROTTLE

€ 16.50

16009

160091601
ref: 16009
AREUFGFRGRITNRSDSPUK

NEEDLE-JET,N76F

€ 20.00

16009A

160091628
ref: 16009A
ST

NEEDLE-JET,N76M

€ 17.50

16012

160121051
ref: 16012

CAP-STARTER PLUNGER

€ 7.00

16012A

160121052
ref: 16012A

CAP-STARTER PLUNGER

€ 10.00

16014

160141062
ref: 16014

SCREW-PILOT AIR

€ 12.50

16016

160161061
ref: 16016

PLUNGER,STARTER

€ 30.50

16030

160301007
ref: 16030

FLOAT VALVE ASSY

€ 37.00

16030A

160301068
ref: 16030A

SEAT-VALVE,FLOAT

€ 42.50

16031

160311070
ref: 16031

FLOAT

€ 40.50

16035

160351055
ref: 16035

JET-AIR,LEAK

€ 10.00

16126

161261237
ref: 16126
EUFRGRITNRSPUK

VALVE,VACUUM

€ 185.50

16126A

161261243
ref: 16126A
SD

VALVE,VACUUM

€ 122.00

16126B

161261244
ref: 16126B
ST

VALVE,VACUUM

€ 122.00

16126C

161261246
ref: 16126C
ARFG

VALVE,VACUUM

€ 100.00

49019

490193707
ref: 49019

FILTER-FUEL,STRAINER

€ 7.00

92009

920091549
ref: 92009

SCREW,4X4.4

€ 3.00

92009A

920091550
ref: 92009A

SCREW,4X8

€ 2.50

92009B

920091551
ref: 92009B

SCREW,DRAIN

€ 6.50

92022

920221003
ref: 92022

WASHER,PLAIN

€ 2.50

92037

16044007
ref: 92037

CLIP, FLOAT VALVE

€ 4.00

92043

920431207
ref: 92043

PIN,FLOAT

€ 6.00

92055

920551002
ref: 92055

O RING,PILOT ADJUST

€ 2.50

92055A

920551425
ref: 92055A

RING-O,VALVE SEAT

€ 4.50

92055B

920551426
ref: 92055B

RING-O,FLOAT CHAMBER

€ 13.00

92063

920631014
ref: 92063
ARFG

MAIN JET,#135

€ 9.50

92063A

920631069
ref: 92063A

MAIN JET,2ND #125

€ 9.50

220

220D0408
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220D0410
ref: 220A

SCREW-PAN-CROS

€ 2.00

92063B

920631073
ref: 92063B
EUFRGRITNRSDSPSTUK

MAIN JET,2ND #122

€ 9.50

92063C

920631074
ref: 92063C
EUFRGRITNRSDSPSTUK

MAIN JET,2ND #128

€ 9.50

92063D

920631074
ref: 92063D
ARFG

MAIN JET,2ND #128

€ 9.50

92063E

920631075
ref: 92063E
ARFG

MAIN JET,2ND #130

€ 9.50

92063F

920631075
ref: 92063F
EUFRGRITNRSDSPSTUK

MAIN JET,2ND #130

€ 9.50

92063G

920631076
ref: 92063G

JET-MAIN,#132

€ 9.50

92064

920641050
ref: 92064

JET-PILOT,#38

€ 12.50

92066

920661051
ref: 92066
ST

PLUG,PILOT AIR SCREW,

€ 3.00

92081

920811761
ref: 92081

SPRING,STARTER PLUNGE

€ 6.00

92144

921441349
ref: 92144

SPRING,PILOT AIR SCRE

€ 6.00

92144A

921441517
ref: 92144A

SPRING

€ 13.50

all assemblies
