TURN SIGNALS(STAY TYPE)

ZX750F1 GPX750R 1987 EUROPE FR UK AR FG GR IT NR SD SP ST

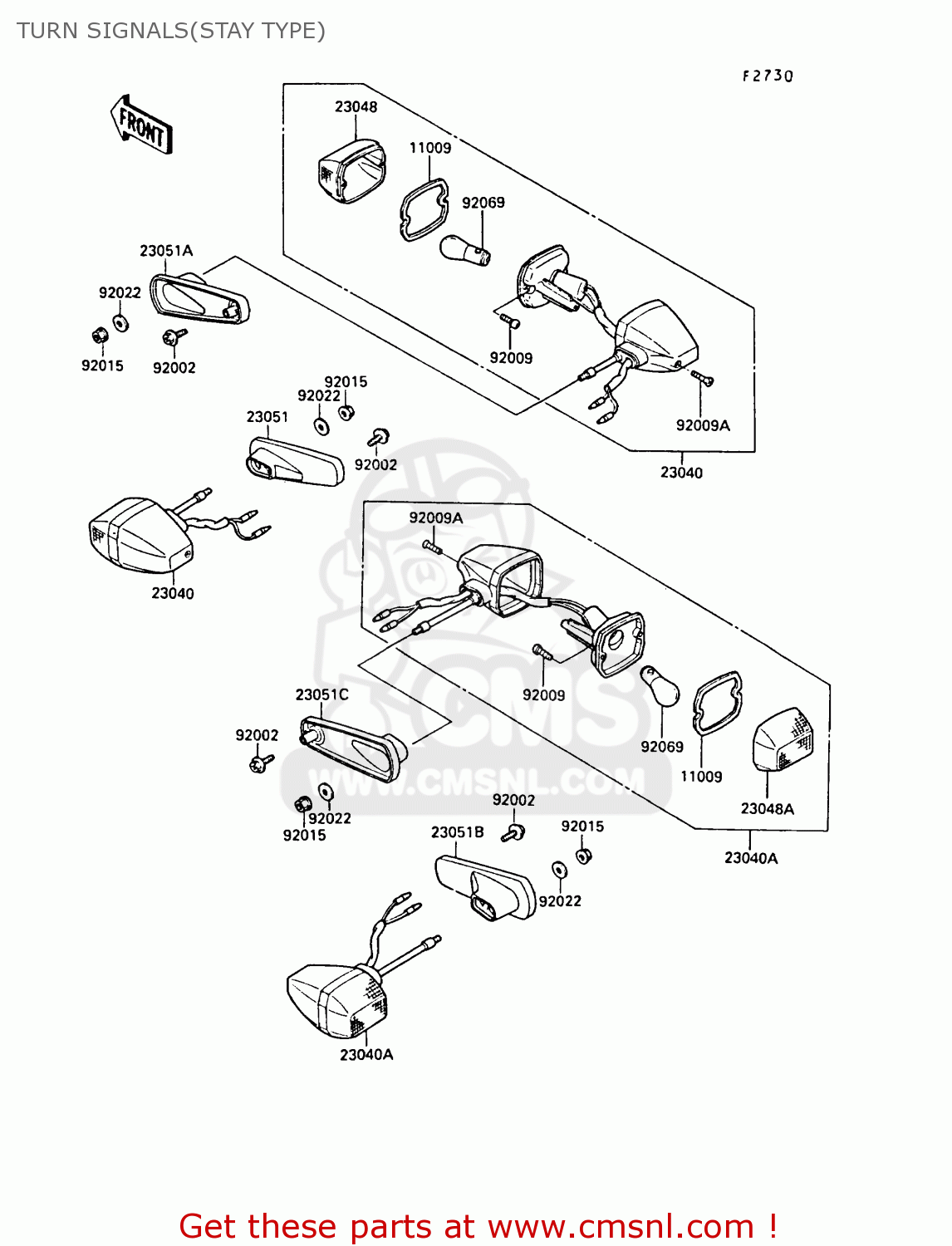

Turn signals(stay type) diagram ZX750F1 GPX750R 1987 EUROPE FR UK AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

11009

110091402
ref: 11009

GASKET,SIGNAL LAMP (NAS)

€ 3.50

23040

230401159
ref: 23040

LAMP-SIGNAL,FR

€ 41.50

23040A

230401160
ref: 23040A

LAMP-SIGNAL,RR

€ 27.50

23048

230481054
ref: 23048

LENS-SIGNAL LAMP

€ 12.00

23048A

230481055
ref: 23048A

LENS-SIGNAL LAMP

€ 12.00

23051

230511185
ref: 23051

BRACKET-SIGNAL LAMP,F

€ 7.50

23051A

230511186
ref: 23051A

BRACKET-SIGNAL LAMP,F

€ 7.50

23051B

230511187
ref: 23051B

BRACKET-SIGNAL LAMP,R

€ 9.00

23051C

230511188
ref: 23051C

BRACKET-SIGNAL LAMP,R

€ 9.00

92002

920021921
ref: 92002

BOLT

€ 2.50

92009

920091115
ref: 92009

SCREW,TAPPING,3X16

€ 2.00

92009A

920091304
ref: 92009A

SCREW,4X20

€ 3.00

92015

920151367
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92069

ref: 92069
