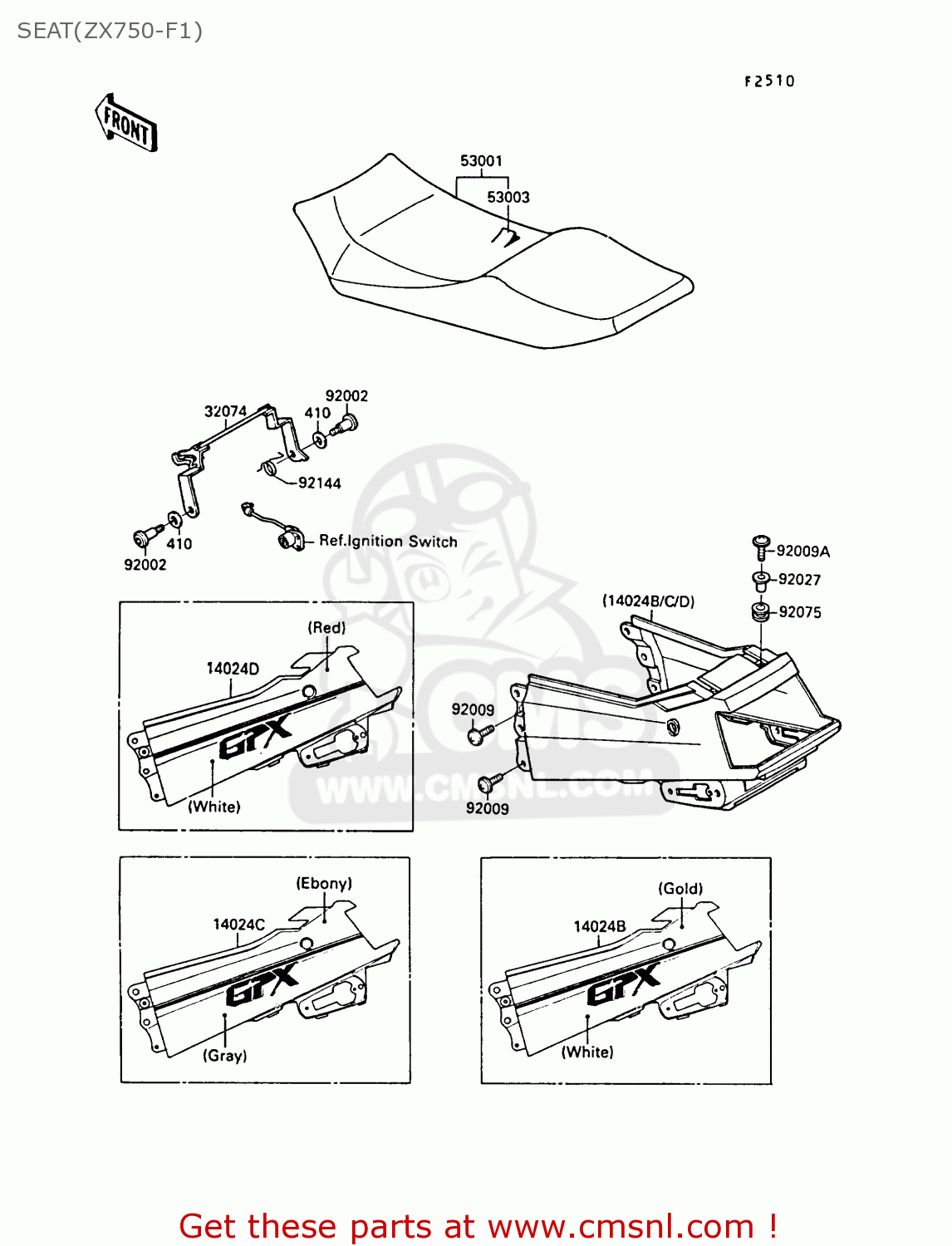

SEAT(ZX750-F1)

ZX750F1 GPX750R 1987 EUROPE FR UK AR FG GR IT NR SD SP ST

Seat(zx750-f1) diagram ZX750F1 GPX750R 1987 EUROPE FR UK AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

410

410F1000
ref: 410

WASHER-PLAIN-SMALL,10

€ 2.50

14024B

140245021W5
ref: 14024B
AREUFGFRGRITNRSPSTUK

COVER,SEAT,P.A.WHITE/

€ 382.50

14024C

140245022T4
ref: 14024C
AREUFGFRGRITNRSDSTUK

COVER,SEAT,EBONY/P.C.

€ 408.50

14024D

140245023W2
ref: 14024D

COVER,SEAT,P.A.WHITE/

€ 471.50

32074

320741130
ref: 32074

BRACKET-LOCK,SEAT

€ 37.50

53001

530011494
ref: 53001

SEAT-ASSY,DUAL

€ 492.50

53003

530031178
ref: 53003

LEATHER,SEAT

€ 140.00

92002

920021616
ref: 92002

BOLT

€ 8.00

92009

920091181
ref: 92009

SCREW,6X18

€ 2.00

92009A

920091251
ref: 92009A

SCREW,6X20,BLACK

€ 3.50

92027

920271920
ref: 92027

COLLAR

€ 4.50

92075

920751913
ref: 92075

DAMPER

€ 2.50

92144

921441086
ref: 92144

SPRING

€ 3.50
