COWLING(ZX750-F1)

ZX750F1 GPX750R 1987 EUROPE FR UK AR FG GR IT NR SD SP ST

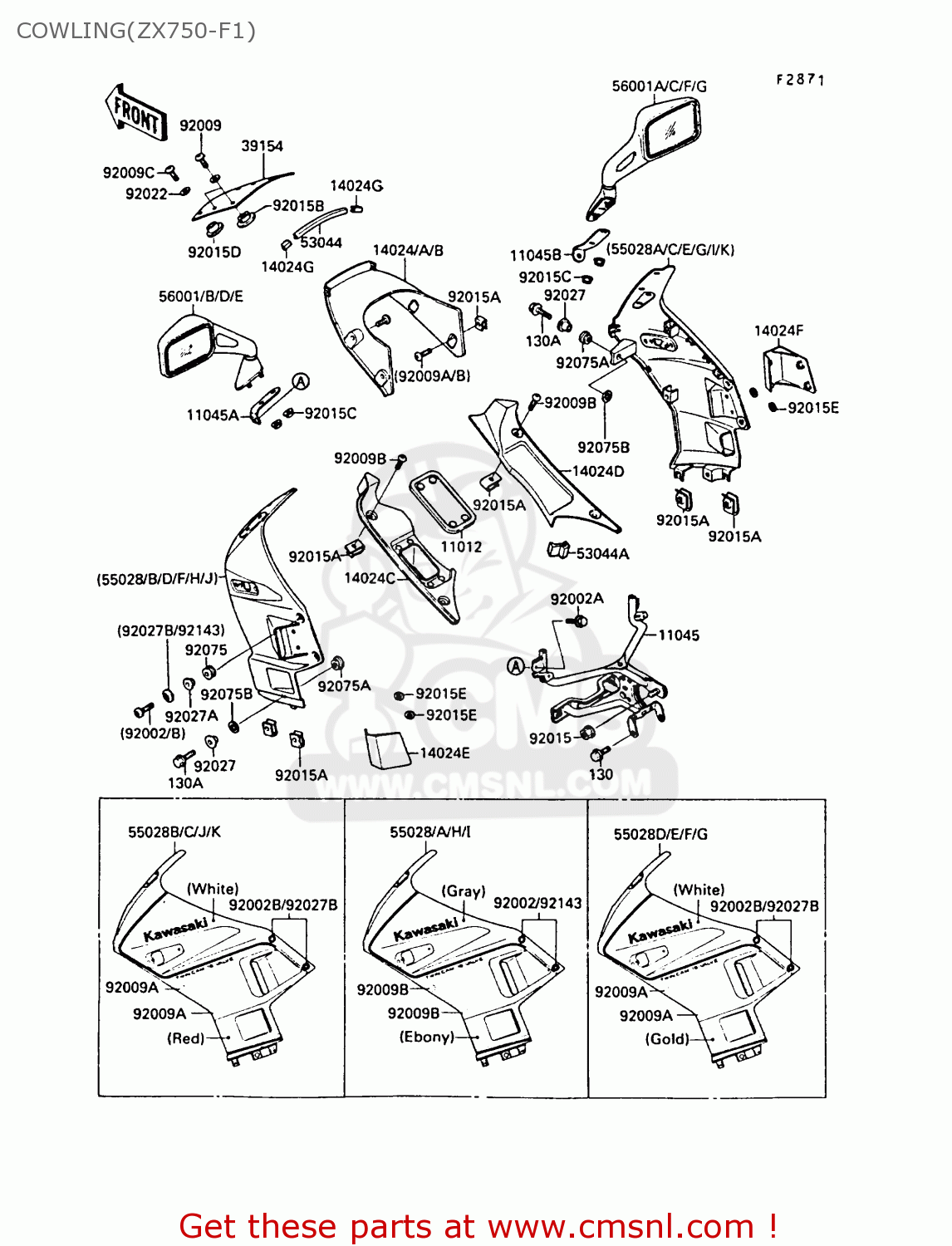

Cowling(zx750-f1) diagram ZX750F1 GPX750R 1987 EUROPE FR UK AR FG GR IT NR SD SP ST

COWLING(ZX750-F1) ZX750F1 GPX750R 1987 EUROPE FR UK AR FG GR IT NR SD SP ST
COWLING(ZX750-F1) ZX750F1 GPX750R 1987 EUROPE FR UK AR FG GR IT NR SD SP ST
COWLING(ZX750-F1) ZX750F1 GPX750R 1987 EUROPE FR UK AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11012
110121570
ref: 11012
CAP,INNER COWLING COV
110121570
€ 13.50
11045
110451270
ref: 11045
BRACKET,COWLING STAY
110451270
€ 189.00
11045A
110451412
ref: 11045A
BRACKET,MIRROR,LH
110451412
€ 4.50
11045B
110451413
ref: 11045B
BRACKET,MIRROR,RH
110451413
€ 4.50
14024
140241337H1
ref: 14024
AREUFGFRGRITNRSDSTUK
COVER,HEAD LAMP,S.RED
€ 157.00
14024A
140241337H8
ref: 14024A
AREUFGFRGRITNRSDSTUK
COVER,HEAD LAMP,EBONY
€ 161.00
14024B
140241337W4
ref: 14024B
AREUFGFRGRITNRSPSTUK
COVER,HEAD LAMP,M.G.G
€ 150.00
14024C
140241380
ref: 14024C
COVER,INNER COWLING,L
140241380
€ 22.50
14024D
140241381
ref: 14024D
COVER,INNER COWLING,R
140241381
€ 17.00
14024E
140241417
ref: 14024E
COVER,HEAT GUARD,LH
140241417
€ 9.00
14024F
140241418
ref: 14024F
COVER,HEAT GUARD,RH
140241418
€ 10.00
14024G
140251756
ref: 14024G
COVER,TRIM END
140251756
€ 4.50
39154
391541064
ref: 39154
WINDSHIELD
€ 251.00
53044
530441177
ref: 53044
TRIM,WINDSHIELD,L=345
530441177
€ 7.00
53044A
530441195
ref: 53044A
TRIM,INNER COWLING CO
530441195
€ 2.00
55028
550285276T4
ref: 55028
AR
COWLING,UPP,LH,EBONY/
€ 478.50
55028A
550285277T4
ref: 55028A
AR
COWLING,UPP,RH,EBONY/
€ 478.50
55028B
550285278W2
ref: 55028B
AR
COWLING,UPP,LH,P.A.WH
€ 504.50
55028C
550285279W2
ref: 55028C
AR
COWLING,UPP,RH,P.A.WH
€ 504.50
55028D
550285280W5
ref: 55028D
EUFGFRGRITNRSPSTUK
COWLING,UPP,LH,WHITE/
€ 478.50
55028E
550285281W5
ref: 55028E
EUFGFRGRITNRSPSTUK
COWLING,UPP,RH,WHITE/
€ 504.50
55028F
550285282W5
ref: 55028F
AR
COWLING,UPP,LH,WHITE/
€ 332.50
55028G
550285283W5
ref: 55028G
AR
COWLING,UPP,RH,WHITE/
€ 329.00
55028H
550285284T4
ref: 55028H
EUFGFRGRITNRSDSTUK
COWLING,UPP,LH,EBONY/
€ 478.50
55028I
550285285T4
ref: 55028I
EUFGFRGRITNRSDSTUK
COWLING,UPP,RH,EBONY/
€ 478.50
55028J
550285286W2
ref: 55028J
EUFGFRGRITNRSDSPSTUK
COWLING,UPP,LH,P.A.WH
550285286W2
€ 478.50
55028K
550285287W2
ref: 55028K
EUFGFRGRITNRSDSPSTUK
COWLING,UPP,RH,P.A.WH
550285287W2
€ 455.50
55028K
550285287W2
ref: 55028K
EUFGFRGRITNRSDSPSTUK
COWLING,UPP,RH,P.A.WH
550285287W2
€ 455.50
56001
560011287
ref: 56001
EU
MIRROR-ASSY,LH,EBONY
€ 101.00
56001A
560011288
ref: 56001A
EU
MIRROR-ASSY,RH
€ 94.50
56001B
560011293
ref: 56001B
FRITUK
MIRROR-ASSY,LH
560011293
€ 98.00
56001C
560011294
ref: 56001C
FRITUK
MIRROR-ASSY,RH
€ 98.00
56001D
560011325
ref: 56001D
ARFGGRNRSDSPST
MIRROR-ASSY,LH
560011325
€ 101.00
56001E
560011325
ref: 56001E
EU
MIRROR-ASSY,LH
560011325
€ 101.00
56001F
560011326
ref: 56001F
ARFGGRNRSDSPST
MIRROR-ASSY,RH
€ 94.50
130
130J0610
ref: 130
BOLT-FLANGED
130J0610
€ 1.50
130A
130J0625
ref: 130A
BOLT-FLANGED,6X25
130J0625
€ 2.00
56001G
560011326
ref: 56001G
EU
MIRROR-ASSY,RH
€ 94.50
92002
920021514
ref: 92002
BOLT,SOCKET,6X18,BLAC
920021514
€ 4.00
92002A
920021884
ref: 92002A
BOLT,6X12
920021884
€ 2.50
92002B
920021889
ref: 92002B
BOLT
920021889
€ 4.00
92009
920091335
ref: 92009
SCREW,5X10
920091335
€ 2.50
92009A
920091366
ref: 92009A
SCREW,5X14
920091366
€ 2.50
92009B
920091383
ref: 92009B
SCREW,5X14
920091383
€ 2.50
92009C
920091453
ref: 92009C
SCREW,5X20
920091453
€ 2.50
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92015A
920151310
ref: 92015A
NUT
920151310
€ 4.00
92015B
920151343
ref: 92015B
NUT,5MM,COWLING
920151343
€ 3.00
92015C
920151367
ref: 92015C
NUT,FLANGED,6MM
920151367
€ 0.50
92015D
920151640
ref: 92015D
NUT
920151640
€ 5.00
92015E
92018004
ref: 92015E
NUT,SPEED,5MM
92018004
€ 2.50
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92027
920271450
ref: 92027
COLLAR,L=13.1,BLACK
920271450
€ 4.00
92027A
920271795
ref: 92027A
COLLAR,L=9.1,WHITE
920271795
€ 4.00
92027B
920271886
ref: 92027B
COLLAR,L=6.5,WHITE
920271886
€ 8.00
92075
920751634
ref: 92075
DAMPER
920751634
€ 3.00
92075A
92075174
ref: 92075A
DAMPER,MALE
92075174
€ 3.00
92075B
92075175
ref: 92075B
DAMPER,FEMALE
92075175
€ 2.50
92143
921431086
ref: 92143
COLLAR,L=6.5,BLACK
921431086
€ 9.00
