FRAME FITTINGS

ZX750F1 GPX750R 1987 EUROPE FR UK AR FG GR IT NR SD SP ST

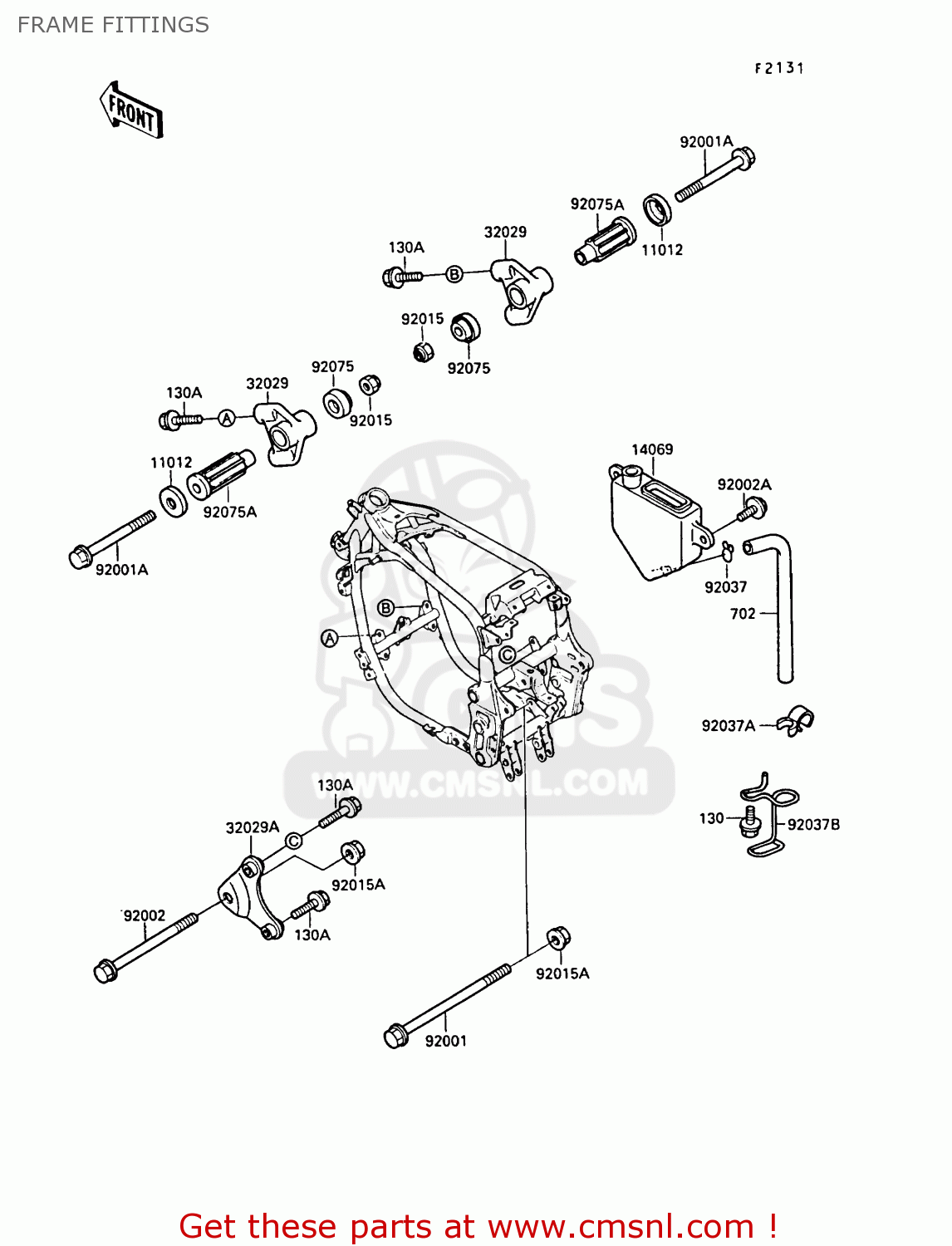

Frame fittings diagram ZX750F1 GPX750R 1987 EUROPE FR UK AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130J0610
ref: 130

BOLT-FLANGED

€ 1.50

130A

130J0820
ref: 130A

BOLT-FLANGED,8X20

€ 0.50

702

702A07480
ref: 702

TUBE-RUBBER

€ 9.50

11012

110121228
ref: 11012

CAP,ENGINE BRACKET

€ 4.50

14069

140691054
ref: 14069

BREATHER

€ 16.50

32029

320291485
ref: 32029

BRACKET-ENGINE,FR

€ 24.50

32029A

320291502
ref: 32029A

BRACKET-ENGINE,RR,UPP

€ 18.50

92001

920011621
ref: 92001

BOLT,FLANGED,10X180

€ 15.00

92001A

920011751
ref: 92001A

BOLT,FLANGED,10X105,B

€ 7.00

92002

920021470
ref: 92002

BOLT,FLANGED,10X170

€ 13.50

92002A

920021884
ref: 92002A

BOLT,6X12

€ 2.50

92015

920151189
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.50

92015A

920151541
ref: 92015A

NUT

€ 8.50

92037

92037147
ref: 92037

CLAMP,CHAIN OILER

€ 4.50

92037A

920371857
ref: 92037A

CLAMP,HOSE

€ 3.00

92037B

920371875
ref: 92037B

CLAMP,HOSE

€ 6.50

92075

920751274
ref: 92075

DAMPER,ENG MOUNT,SIDE

€ 11.00

92075A

920751377
ref: 92075A

DAMPER,ENGINE BRACKET

€ 19.50

FRAME FITTINGS

all assemblies
