ENGINE COVER(S)

ZX750F1 GPX750R 1987 EUROPE FR UK AR FG GR IT NR SD SP ST

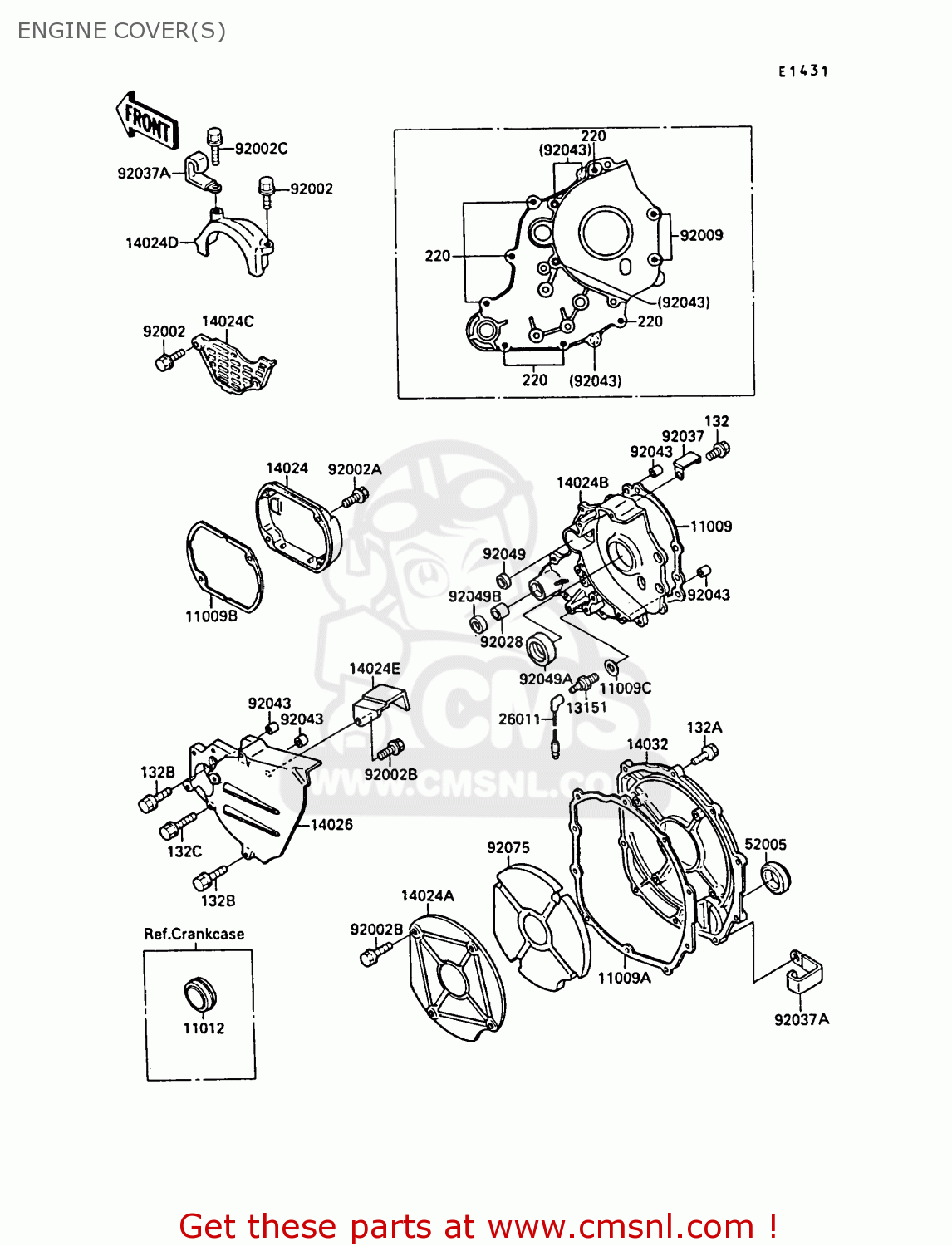

Engine cover(s) diagram ZX750F1 GPX750R 1987 EUROPE FR UK AR FG GR IT NR SD SP ST

ENGINE COVER(S) ZX750F1 GPX750R 1987 EUROPE FR UK AR FG GR IT NR SD SP ST
ENGINE COVER(S) ZX750F1 GPX750R 1987 EUROPE FR UK AR FG GR IT NR SD SP ST
ENGINE COVER(S) ZX750F1 GPX750R 1987 EUROPE FR UK AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
132
132J0610
ref: 132
BOLT-FLANGED-SMALL,6X
132J0610
€ 1.50
132A
132J0620
ref: 132A
BOLT-FLANGED-SMALL
132J0620
€ 2.00
132B
132J0645
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
132C
132J0655
ref: 132C
BOLT-FLANGED-SMALL
132J0655
€ 3.00
220
220B0620
ref: 220
SCREW-PAN HEAD,6X20
220B0620
€ 2.50
11009
110091600
ref: 11009
GASKET,TRANSMISSON CO (MCA)
110091600
€ 12.50
11009A
110091601
ref: 11009A
GASKET,CLUTCH COVER (MCA)
110091601
€ 14.50
11009B
110091603
ref: 11009B
GASKET,COVER,RH (MCA)
110091603
€ 3.00
11009C
92065058
ref: 11009C
GASKET, 10,5X16X1 (NAS)
92065058
€ 2.50
11012
110121540
ref: 11012
CAP,LH,RCA378
110121540
€ 7.00
13151
131511007
ref: 13151
SWITCH,NEUTRAL
131511007
€ 9.00
14024
140241299
ref: 14024
COVER,RH
140241299
€ 13.50
14024A
140241301
ref: 14024A
COVER,SOUND ARRESTER
140241301
€ 7.50
14024B
140241305
ref: 14024B
COVER,TRANSMISSION
140241305
€ 129.50
14024C
140241309
ref: 14024C
COVER,GENERATOR,SIDE
140241309
€ 9.00
14024D
140241310
ref: 14024D
COVER,GENERATOR,UPP
140241310
€ 9.50
14024E
140241376
ref: 14024E
COVER
€ 8.50
14026
140261126
ref: 14026
COVER-CHAIN
€ 94.00
14032
140321224
ref: 14032
COVER-CLUTCH
140321224
€ 98.00
26011
260111384
ref: 26011
WIRE-LEAD
€ 4.50
52005
520051057
ref: 52005
GAUGE,OIL LEVEL
520051057
€ 17.50
92002
920021343
ref: 92002
BOLT,6X20
920021343
€ 4.00
92002A
920021344
ref: 92002A
BOLT,6X25
920021344
€ 1.50
92002B
920021449
ref: 92002B
BOLT,6X10
920021449
€ 2.50
92002C
920021534
ref: 92002C
BOLT,6X30
920021534
€ 4.00
92009
920091447
ref: 92009
SCREW,6X20
920091447
€ 3.00
92028
920281251
ref: 92028
BUSHING,13X15X20
920281251
€ 8.00
92037
920371876
ref: 92037
CLAMP,LEAD WIRE
€ 3.00
92037A
920371877
ref: 92037A
CLAMP
920371877
€ 3.00
92043
92042007
ref: 92043
PIN-DOWEL
92042007
€ 4.00
92049
920491017
ref: 92049
SEAL-OIL,SD-8187
920491017
€ 6.50
92049A
920491033
ref: 92049A
OIL SEAL,SC32487
920491033
€ 12.00
92049B
920491186
ref: 92049B
SEAL-OIL,TB13205
920491186
€ 5.50
92075
920751837
ref: 92075
DAMPER,SOUND ARRESTER
920751837
€ 46.00
