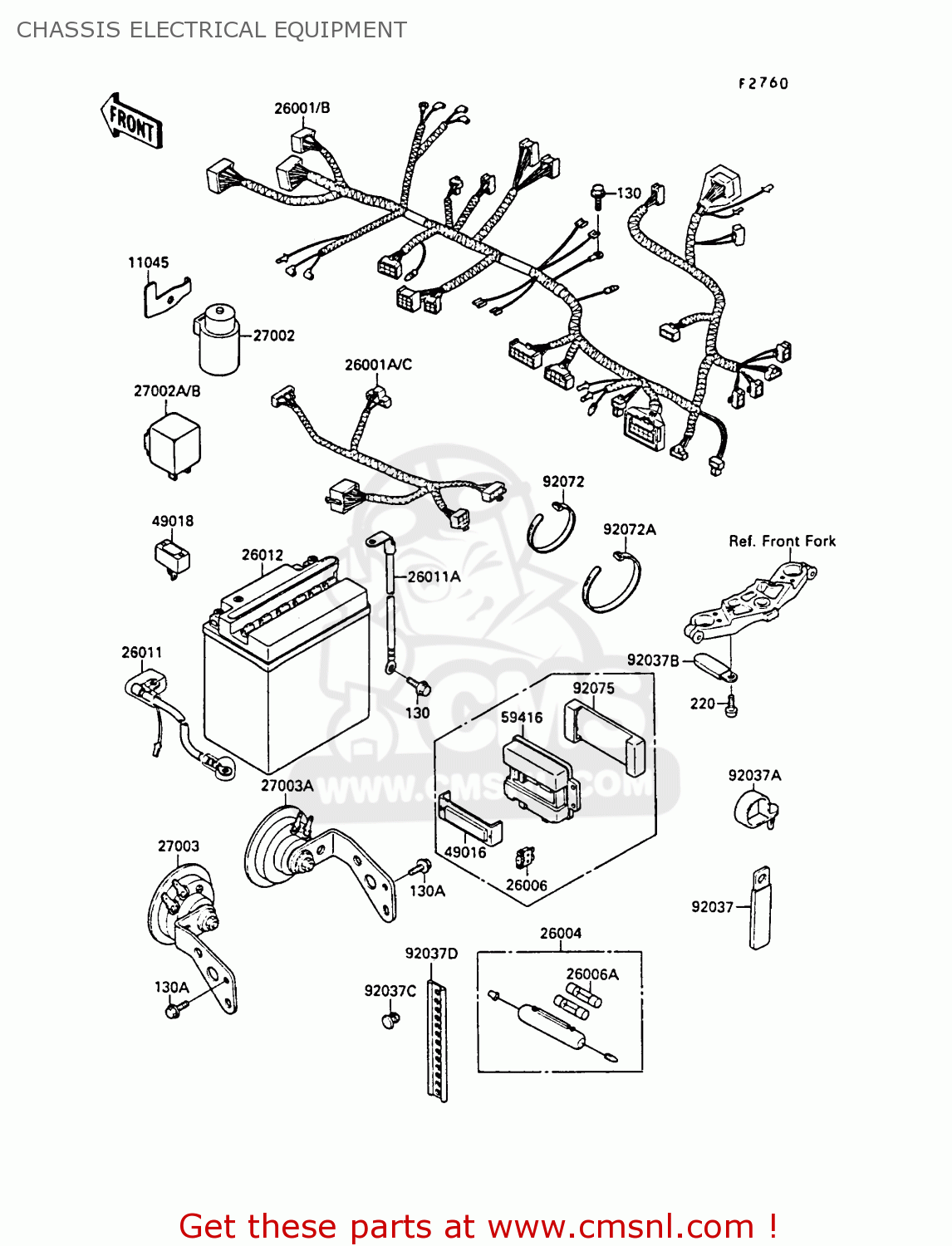

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

130

130B0610
ref: 130

BOLT,FLANGED,6X10

€ 0.50

130A

130J0610
ref: 130A

BOLT-FLANGED

€ 1.50

220

220C0510
ref: 220

SCREW-PAN-CROS

€ 2.50

11045

110451283
ref: 11045

BRACKET,RELAY

€ 4.00

26001

260011820
ref: 26001

HARNESS,MAIN

€ 238.00

26001A

260011842
ref: 26001A

HARNESS

€ 25.50

26004

260041075
ref: 26004

FUSE-ASSY

€ 12.00

26006

260061007
ref: 26006

FUSE, 10A-R

€ 3.00

26006A

260061059
ref: 26006A

FUSE,30A,L=30

€ 3.00

26011

260111377
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 15.50

26011A

260111395
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 14.00

26012

260121177
ref: 26012

BATTERY,12V 14AH,YB14

€ 96.00

27002

270021051
ref: 27002

RELAY-ASSY

€ 32.00

27002A

270021059
ref: 27002A
AREUFRGRITNRSPSTUK

RELAY-ASSY,TURN SIGNA

€ 43.50

27002B

270021061
ref: 27002B
FGSD

RELAY-ASSY,TURN SIGNA

€ 57.00

27003

270031271
ref: 27003

HORN,LH,LOW TONE

€ 50.50

27003A

270031272
ref: 27003A

HORN,RH,HIGH TONE

€ 48.00

49016

490161123
ref: 49016

COVER-SEAL,FUSE

€ 4.50

49018

490181055
ref: 49018

DIODE

€ 13.00

59416

594161057
ref: 59416

CASE-ELECTRIC,JUNCTIO

€ 102.50

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371163
ref: 92037A

CLAMP,HARNESS,REAR

€ 4.50

92037B

920371539
ref: 92037B

CLAMP,L=45

€ 3.00

92037C

920371579
ref: 92037C

CLAMP

€ 2.50

92037D

920371883
ref: 92037D

CLAMP

€ 4.00

92072

92072031
ref: 92072

BAND,MIDDLE

€ 3.00

92072A

920721195
ref: 92072A

BAND,L=185

€ 1.00

92075

920751688
ref: 92075

DAMPER,FUSE & RELAY B

€ 9.50
