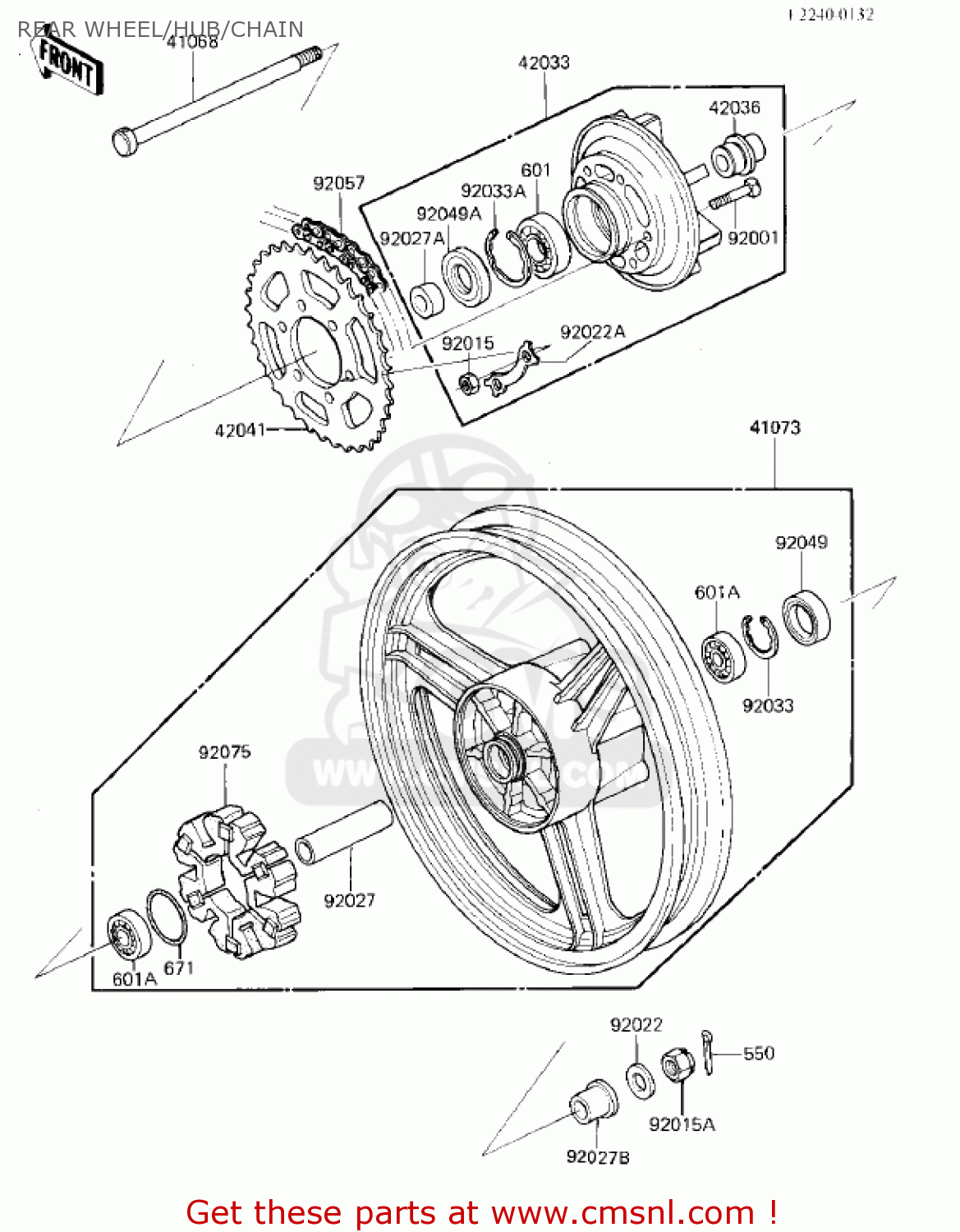

REAR WHEEL/HUB/CHAIN

ref

part #

description

quantity

41068

410681126
ref: 41068

AXLE,RR

€ 67.50

41073

410731216J9
ref: 41073

WHEEL-ASSY,RR,M.GRAY

€ 585.50

42033

420331055
ref: 42033

COUPLING-ASSY,RR HUB,

€ 208.00

42036

420361036
ref: 42036

SLEEVE,RR HUB COUPLIN

€ 20.50

42041

420411131
ref: 42041

SPROCKET-HUB,38T,BLAC

€ 35.50

92001

92001161
ref: 92001

BOLT,10X41

€ 3.00

92015

42045005
ref: 92015

NUT,10MM

€ 5.00

92015A

92015055
ref: 92015A

NUT,16MM

€ 8.00

92022

42046009
ref: 92022

WASHER-SLEEVE

€ 5.00

92022A

920221212
ref: 92022A

WASHER,LOCK

€ 4.00

92027

920271555
ref: 92027

COLLAR,17.2X25X96

€ 13.00

92027A

920271562
ref: 92027A

COLLAR,RR AXLE,LH

€ 16.50

92027B

920271566
ref: 92027B

COLLAR,17X28X33

€ 12.50

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92033A

920331044
ref: 92033A

CIRCLIP 62 M/M

€ 7.50

92049

920491056
ref: 92049

OIL SEAL,BJN28475

€ 8.50

92049A

92050027
ref: 92049A

OIL SEAL

€ 13.50

92057

920571129
ref: 92057

CHAIN,DRIVE,630SVD0X9

€ 150.50

92075

42014004
ref: 92075

DAMPER-REAR HUB SHOCK

€ 14.50

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6206
ref: 601

BEARING-BALL,#6206C3

€ 19.50

601A

601B6303ZZ
ref: 601A

BEARING-BALL,#6303ZZC

€ 32.50

671

671B2565
ref: 671

O RING,65MM

€ 6.00

all assemblies
