CARBURETOR ASSY

ZX750E1 GPZ750 1984 USA CALIFORNIA CANADA

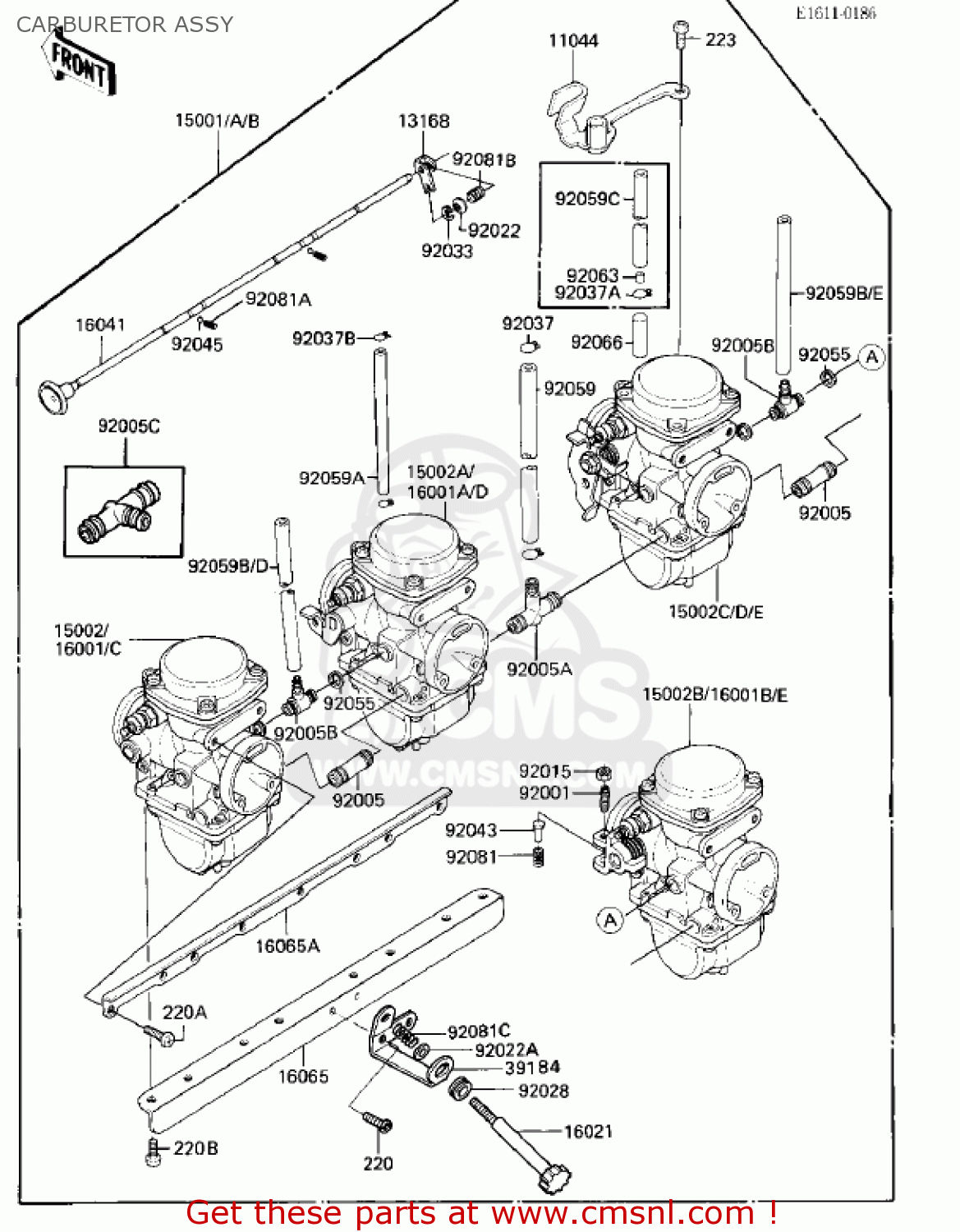

Carburetor assy diagram ZX750E1 GPZ750 1984 USA CALIFORNIA CANADA

CARBURETOR ASSY ZX750E1 GPZ750 1984 USA CALIFORNIA CANADA
CARBURETOR ASSY ZX750E1 GPZ750 1984 USA CALIFORNIA CANADA
CARBURETOR ASSY ZX750E1 GPZ750 1984 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11044
110441156
ref: 11044
BRACKET,THROTTLE CABL
€ 25.50
13168
131681091
ref: 13168
LEVER,CHOKE
131681091
€ 6.00
15001
150011129
ref: 15001
CA
CARBURETOR ASSEMBLY
€ 877.00
15001A
150011130
ref: 15001A
US
CARBURETOR ASSEMBLY
€ 877.00
15001B
150011131
ref: 15001B
CN
CARBURETOR-ASSY
€ 2,044.00
15002
150021066
ref: 15002
CA
CARBURETOR,OUTSIDE,LH
€ 325.50
15002A
150021067
ref: 15002A
CA
CARBURETOR,INSIDE,LH
€ 239.00
15002B
150021069
ref: 15002B
CA
CARBURETOR,OUTSIDE,RH
€ 239.00
15002C
150021151
ref: 15002C
CA
CARBURETOR,INSIDE,RH
€ 239.00
15002D
150021152
ref: 15002D
US
CARBURETOR,INSIDE,RH
€ 239.00
15002E
150021153
ref: 15002E
CN
CARBURETOR,RH,INSIDE
€ 440.50
16001
160011819
ref: 16001
US
CARBURETOR,OUTSIDE,LH
€ 325.50
16001A
160011820
ref: 16001A
US
CARBURETOR,INSIDE,LH
€ 308.00
16001B
160011822
ref: 16001B
US
CARBURETOR,OUTSIDE,RH
€ 308.00
16001C
160011824
ref: 16001C
CN
CARBURETOR,LH,OUTSIDE
€ 525.00
16001D
160011825
ref: 16001D
CN
CARBURETOR,LH,INSIDE
€ 525.00
16001E
160011827
ref: 16001E
CN
CARBURETOR,RH,OUTSIDE
€ 446.00
16021
160211103
ref: 16021
SCREW-THROTTLE STOP
€ 19.50
16041
160411051
ref: 16041
SHAFT-CARBURETOR,CHOK
€ 68.50
16065
160651043
ref: 16065
HOLDER-CARBURETOR,LWR
€ 62.00
16065A
160651044
ref: 16065A
HOLDER-CARBURETOR,UPP
€ 41.00
39184
391841007
ref: 39184
BRACKET-ASSY,IDLING A
€ 20.00
92001
920011447
ref: 92001
BOLT,ADJUSTING
920011447
€ 6.50
92005
920051035
ref: 92005
FITTING,FUEL,I-TYPE
€ 35.00
92005A
920051036
ref: 92005A
FITTING,FUEL,T-TYPE
920051036
€ 48.50
92005B
920051045
ref: 92005B
FITTING,AIR VENT
€ 24.00
92005C
920051135
ref: 92005C
CA
FITTING,T-TYPE
920051135
€ 17.50
92015
920151119
ref: 92015
NUT,THROTTLE VALVE AD
920151119
€ 3.50
92022
920221255
ref: 92022
WASHER,SPRING
920221255
€ 3.50
92022A
920221491
ref: 92022A
WASHER,THROTTLE STOP
920221491
€ 2.50
92028
920281266
ref: 92028
BUSHING,IDLING ADJUST
920281266
€ 7.00
92033
920331066
ref: 92033
RING-SNAP,E-TYPE
920331066
€ 3.50
92037
920371184
ref: 92037
CLAMP,HOSE
€ 1.00
92037A
920371235
ref: 92037A
CN
CLAMP,TUBE
€ 2.50
92037B
92037174
ref: 92037B
CLAMP,BREATHER HOSE
€ 1.50
92043
920431079
ref: 92043
PIN,THROTTLE VALVE AD
920431079
€ 3.50
92045
600A0400
ref: 92045
BALL-STEEL,1/8
600A0400
€ 2.00
92055
92055510
ref: 92055
RING-O
92055510
€ 7.50
92059
920591123
ref: 92059
TUBE,7.5X12.5X225
€ 17.00
92059A
920591188
ref: 92059A
TUBE,5X9X150
920591188
€ 11.00
92059B
920591203
ref: 92059B
CN,US
TUBE,6.5X9.5X350
€ 12.50
92059C
920591204
ref: 92059C
CN
TUBE,4.5X8X200
€ 9.00
92059D
920591446
ref: 92059D
CA
TUBE,6.5X10.5X175
€ 9.50
92059E
920591447
ref: 92059E
CA
TUBE,6.5X10.5X125
€ 6.50
92063
920631097
ref: 92063
CN
JET-MAIN
€ 8.00
92066
92068006
ref: 92066
US,CN
RUBBER PLUG
92068006
€ 2.50
92066
92068006
ref: 92066
US,CN
RUBBER PLUG
92068006
€ 2.50
92081
920811259
ref: 92081
SPRING,THROTTLE VLV
€ 3.00
92081A
920811260
ref: 92081A
SPRING,FAST IDLE SHFT
920811260
€ 3.50
92081B
920811364
ref: 92081B
SPRING,CHOCK SHAFT
920811364
€ 3.50
92081C
920811377
ref: 92081C
SPRING,IDLING ADJUST
920811377
€ 3.00
220
220B0508
ref: 220
SCREW-PAN-CROS,5X8
220B0508
€ 0.50
220A
220C0510
ref: 220A
SCREW-PAN-CROS
220C0510
€ 2.50
220B
220C0614
ref: 220B
SCREW-PAN-CROS,6X14,B
220C0614
€ 1.50
223
223C0518
ref: 223
SCREW-PAN-WS-CROS
€ 2.00
