REAR SUSPENSION

ZX750E1 GPZ750 1984 USA CALIFORNIA CANADA

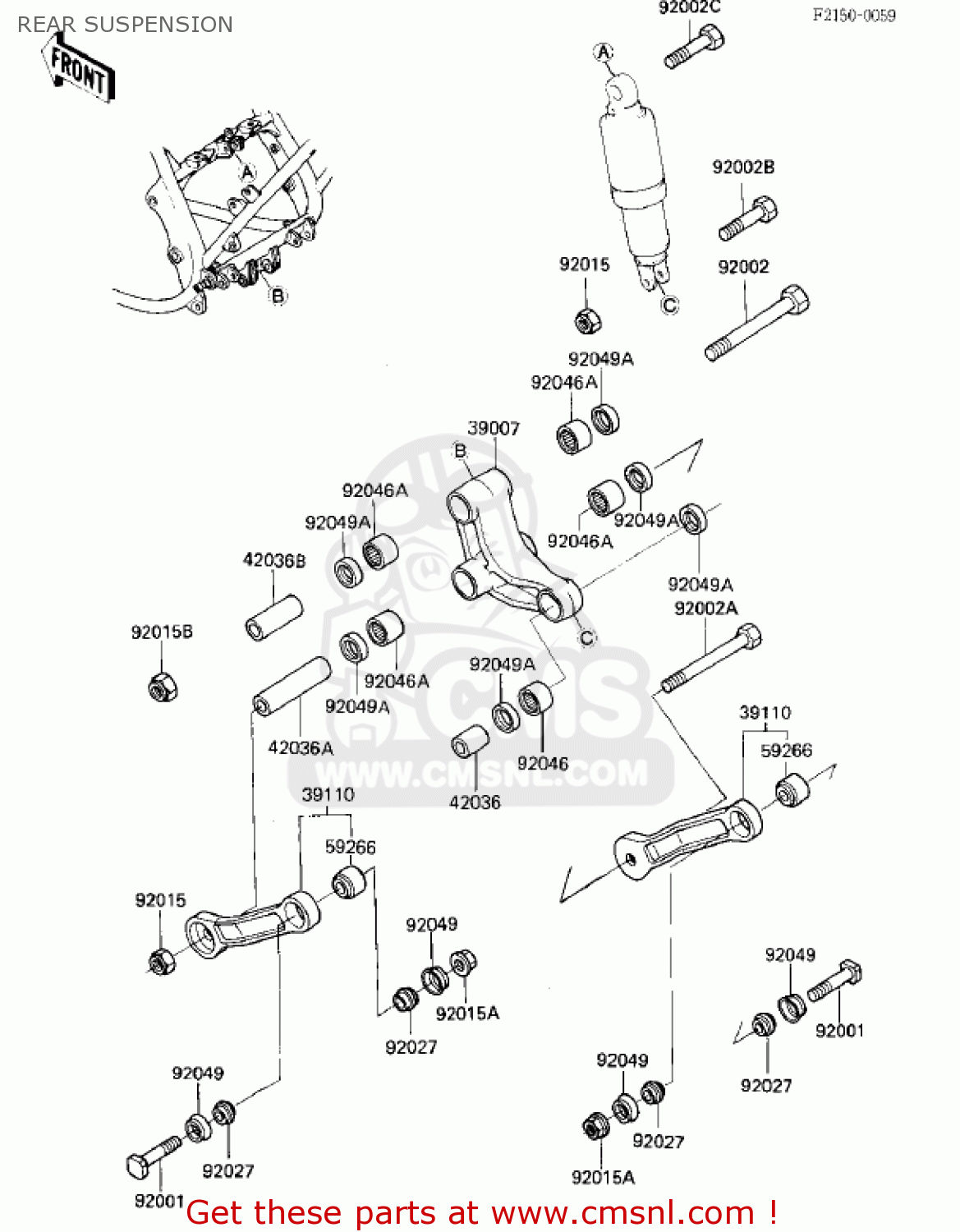

Rear suspension diagram ZX750E1 GPZ750 1984 USA CALIFORNIA CANADA

REAR SUSPENSION ZX750E1 GPZ750 1984 USA CALIFORNIA CANADA
REAR SUSPENSION ZX750E1 GPZ750 1984 USA CALIFORNIA CANADA
REAR SUSPENSION ZX750E1 GPZ750 1984 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
39007
390071026
ref: 39007
ARM-SUSP,UNI TRAK
390071026
€ 76.00
39110
391101017
ref: 39110
ROD-ASSY-TIE
391101017
€ 128.50
42036
420361072
ref: 42036
SLEEVE,12.1X20X26
420361072
€ 9.50
42036A
420361075
ref: 42036A
SLEEVE,12.1X20X84
420361075
€ 17.00
42036B
420361084
ref: 42036B
SLEEVE,14.1X20X55
420361084
€ 15.50
59266
592661051
ref: 59266
JOINT-BALL
592661051
€ 67.50
92001
921501402
ref: 92001
BOLT
921501402
€ 8.50
92002
920021128
ref: 92002
BOLT,14X108
€ 11.50
92002A
920021129
ref: 92002A
BOLT,12X106
€ 7.50
92002B
920021130
ref: 92002B
BOLT,12X55
920021130
€ 7.00
92002C
920021131
ref: 92002C
BOLT,10X50
€ 5.50
92015
920151190
ref: 92015
NUT,LOCK,12MM,BLACK
920151190
€ 4.50
92015A
920151392
ref: 92015A
NUT,10MM
€ 2.50
92015B
92019011
ref: 92015B
NUT,LOCK,14MM
92019011
€ 6.00
92027
920271392
ref: 92027
COLLAR,L=5.5
920271392
€ 3.50
92046
920461054
ref: 92046
BEARING-NEEDLE,HK2016
920461054
€ 20.00
92046A
920461061
ref: 92046A
BEARING-NEEDLE,FJ-202
920461061
€ 22.50
92049
920491083
ref: 92049
SEAL-OIL
920491083
€ 14.00
92049A
920491108
ref: 92049A
SEAL-OIL,GD20X26X4
920491108
€ 7.50
