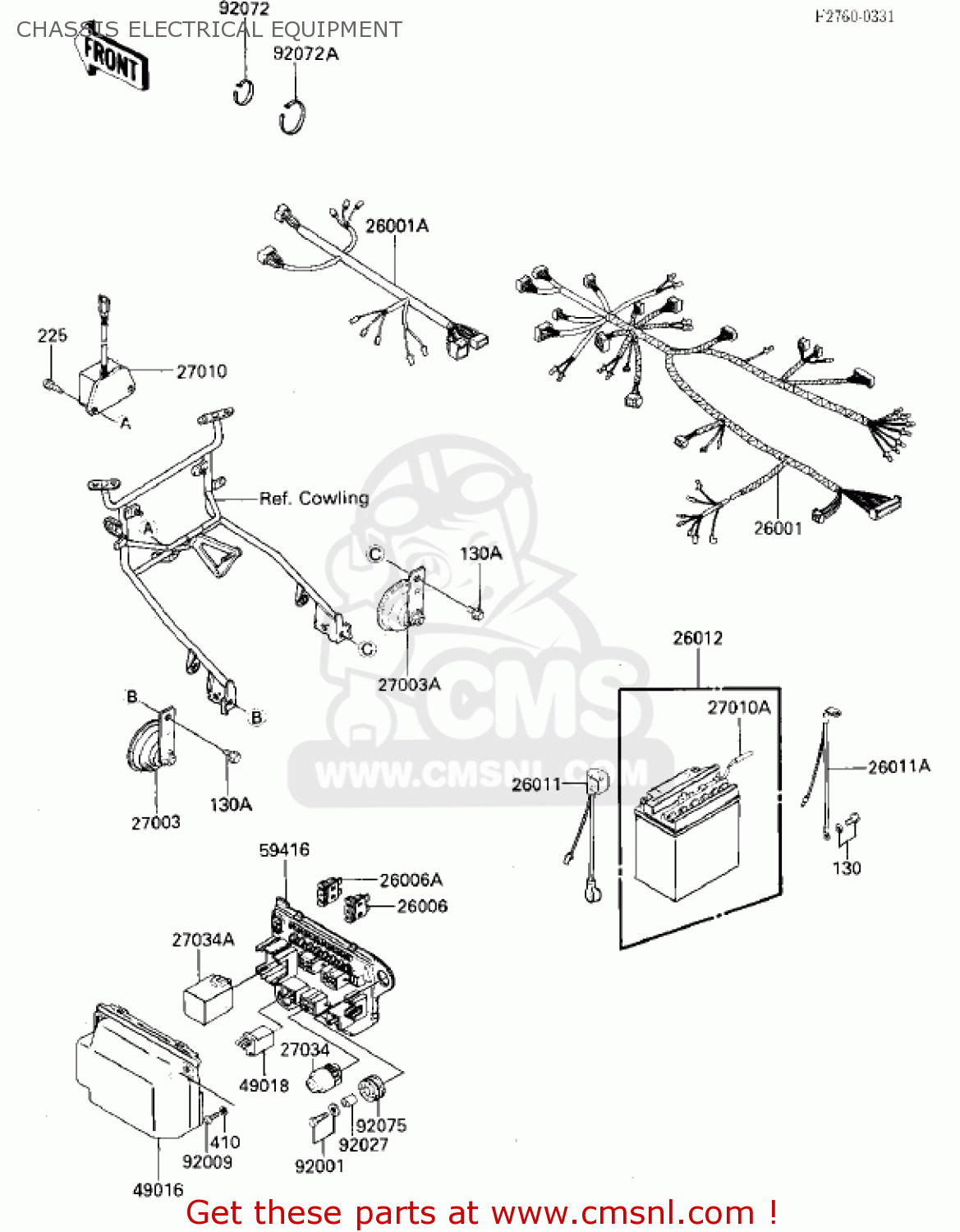

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

26001

260011608
ref: 26001

HARNESS,MAIN

€ 155.00

26001A

260011609
ref: 26001A

HARNESS,FRONT

€ 25.00

26006

260061006
ref: 26006

FUSE,30A-G

€ 3.00

26006A

260061007
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111188
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 24.50

26011A

260111189
ref: 26011A

WIRE-LEAD,BATTERY GRO

€ 21.50

26012

260121059
ref: 26012

BATTERY,12V 14AH,YB14

€ 88.00

27003

270031057
ref: 27003

HORN,LH

€ 62.00

27003A

270031058
ref: 27003A

HORN,RH

€ 32.50

27010

270101069
ref: 27010

SWITCH,RESERVE LIGTIN

€ 149.00

27010A

270101099
ref: 27010A

SWITCH,BATTERY,L=170

€ 24.00

27034

270341006
ref: 27034

STARTER,RELAY

€ 65.50

27034A

270341007
ref: 27034A

RELAY,FLASHER

€ 139.00

49016

490161050
ref: 49016

COVER-SEAL

€ 14.00

49018

490181006
ref: 49018

DIODE

€ 35.00

59416

594161056
ref: 59416

CASE-ELECTRIC

€ 125.50

92001

920021262
ref: 92001

BOLT,6X22

€ 2.00

92009

920091021
ref: 92009

SCREW,TAPPING,4X10

€ 2.50

92027

92027162
ref: 92027

COLLAR-REAR FENDER

€ 4.50

92072

92072031
ref: 92072

BAND,MIDDLE

€ 3.00

92072A

92072032
ref: 92072A

BAND,LONG

€ 3.00

92075

920751562
ref: 92075

DAMPER

€ 3.00

130

130B0608
ref: 130

BOLT,FLANGED,6X8

€ 0.50

130A

130C0812
ref: 130A

BOLT-FLANGED,8X12,BLA

€ 0.50

225

225B0620
ref: 225

SCREW-PAN-WSP-CROS

€ 2.50

410

410B0400
ref: 410

WASHER-PLAIN-SMALL,4M

€ 0.50

all assemblies
