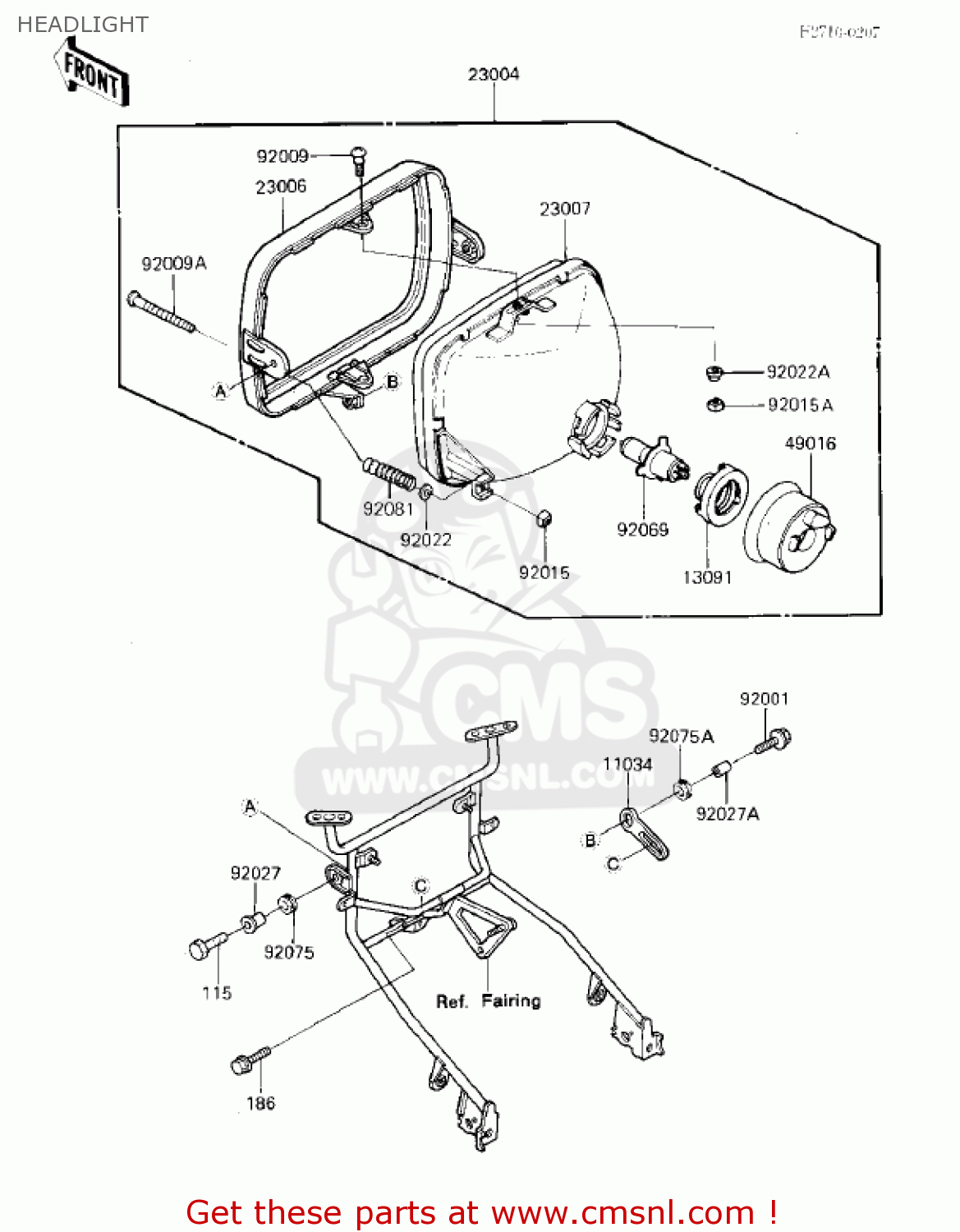

HEADLIGHT

ref

part #

description

quantity

11034

23064022
ref: 11034

BRACKET,HEAD LAMP

€ 4.00

13091

130911036
ref: 13091

HOLDER,HEAD LAMP SOCK

€ 12.50

23002

230041151
ref: 23002

HEADLAMP

€ 302.00

23006

230061051
ref: 23006

RIM-LAMP

€ 56.50

23007

230071041
ref: 23007

LENS-COMP,HEAD LAMP

€ 201.50

49016

490161023
ref: 49016

COVER-SEAL,HEAD LAMP

€ 11.50

92001

920021262
ref: 92001

BOLT,6X22

€ 2.00

92009

23019023
ref: 92009

SCREW-PAN HEAD,5X12

€ 3.50

92009A

920091047
ref: 92009A

SCREW,HEAD LAMP LENS

€ 3.00

92015

23020018
ref: 92015

NUT,4MM,FOCUS ADJUST

€ 3.00

92015A

23020023
ref: 92015A

NUT,5MM

€ 3.00

92022

23021004
ref: 92022

WASHER,4.1X8X0.8

€ 2.00

92022A

23021012
ref: 92022A

WASHER

€ 3.00

92027

920271134
ref: 92027

COLLAR,FUEL TANK FITT

€ 7.00

92027A

92027162
ref: 92027A

COLLAR-REAR FENDER

€ 4.50

92069

920691002
ref: 92069

BULB,12V-60155W

€ 15.00

92075

921601007
ref: 92075

DAMPER

€ 3.50

92075A

92075209
ref: 92075A

DAMPER RUBBER

€ 3.00

92081

920811103
ref: 92081

SPRING,HEAD LAMP LENS

€ 3.00

115

115G0825
ref: 115

BOLT-HEX,HEAD,8X25

€ 3.00

186

186B0614
ref: 186

BOLT-UPSET-WP

€ 0.50
