FAIRING
ZX750E1 GPZ750 1984 USA CALIFORNIA CANADA

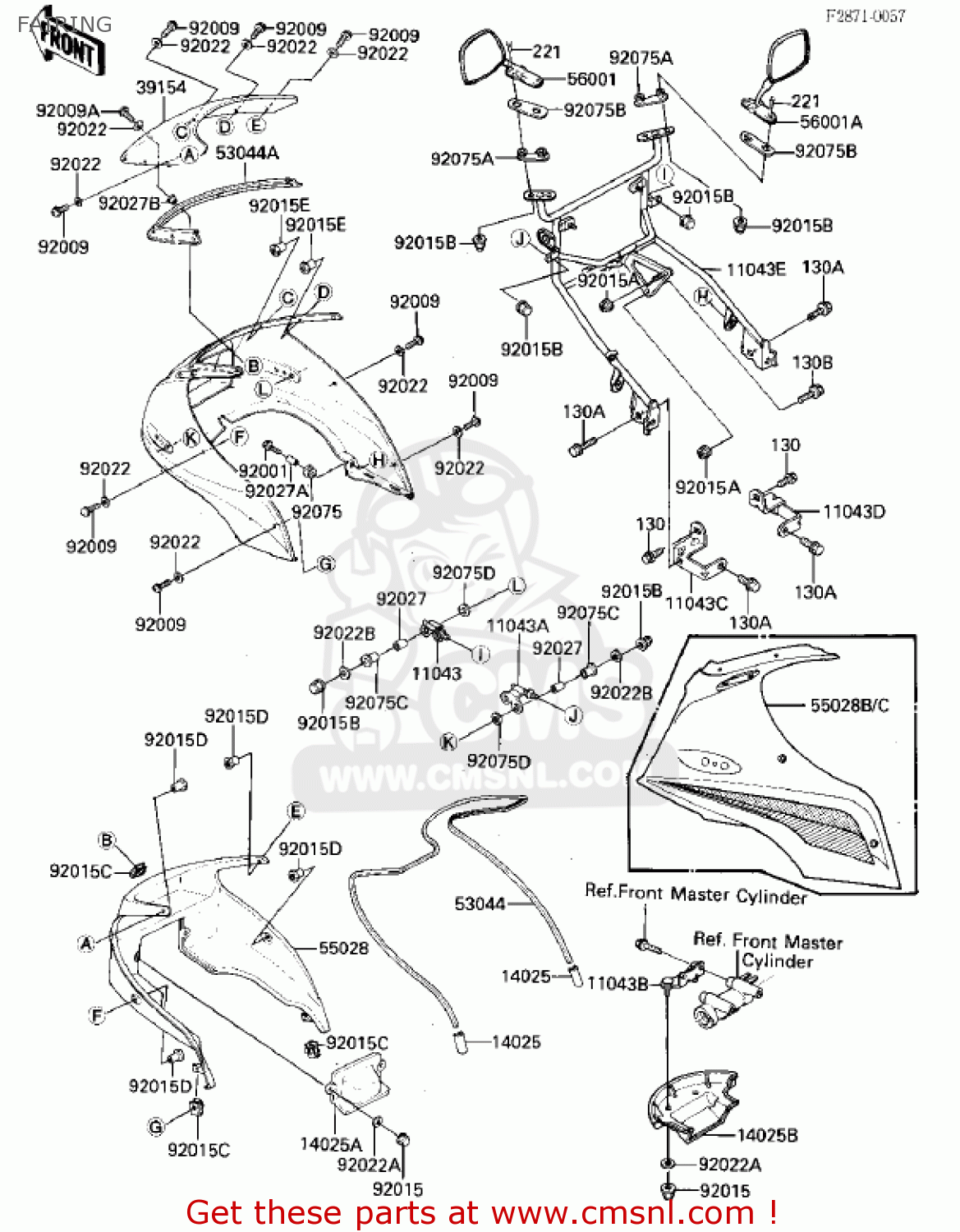

Fairing diagram ZX750E1 GPZ750 1984 USA CALIFORNIA CANADA
FAIRING ZX750E1 GPZ750 1984 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
11043
110431278
ref: 11043
BRACKET-B,SIGNAL LAMP
€ 23.50
11043A
110431279
ref: 11043A
BRACKET-B,SIGNAL LAMP
€ 23.50
11043B
110431426
ref: 11043B
BRACKET-B,FUEL FILTER
€ 7.00
11043C
110431442
ref: 11043C
BRACKET-B,COWLING,LH
€ 9.00
11043D
110431443
ref: 11043D
BRACKET-B,COWLING,RH
€ 10.50
11043E
110431667
ref: 11043E
BRACKET,COWLING BODY
€ 204.00
14025
140251756
ref: 14025
COVER,TRIM END
€ 4.50
14025A
140251769
ref: 14025A
COVER,COWLING INNER
€ 17.50
14025B
140251815
ref: 14025B
COVER
€ 17.00
39154
391541052
ref: 39154
WINDSHIELD
€ 422.00
53044
530441110
ref: 53044
TRIM,COWLING
€ 49.00
53044A
530441121
ref: 53044A
TRIM,WINDSHIELD
€ 28.00
55028
550285063
ref: 55028
COWLING,INNER
€ 88.50
55028B
550285099H8
ref: 55028B
COWLING,UPP,OUTER,EBO
€ 709.50
55028C
550285100B1
ref: 55028C
CN
COWLING,UPP,OUTER,F.R
€ 543.50
56001
560011240
ref: 56001
MIRROR-ASSY,LH
€ 61.00
56001A
560011241
ref: 56001A
MIRROR-ASSY,RH
€ 61.00
92001
920011852
ref: 92001
BOLT,6X25
€ 2.50
92009
920091654
ref: 92009
SCREW
€ 0.50
92009A
920091302
ref: 92009A
SCREW,5X25
€ 2.50
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
€ 0.50
92015A
920151408
ref: 92015A
NUT,FLANGED,8MM
€ 1.00
92015B
920151078
ref: 92015B
NUT,6M/M
€ 1.50
92015C
920151710
ref: 92015C
NUT
€ 4.00
92015D
920151351
ref: 92015D
NUT,COWLING,5MM
€ 2.50
92015E
920151352
ref: 92015E
NUT,COWLING,5MM
€ 3.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
€ 2.50
92022A
920221545
ref: 92022A
WASHER,7X18X1.2
€ 1.00
92022B
92022228
ref: 92022B
WASHER-PLAIN,7MM
€ 2.50
92027
920271400
ref: 92027
COLLAR,6.8X10X21
€ 3.50
92027A
92027162
ref: 92027A
COLLAR-REAR FENDER
€ 4.50
92027B
920271754
ref: 92027B
COLLAR,COWLING,L=5.5
€ 3.00
92075
920751057
ref: 92075
DAMPER
€ 3.00
92075A
920751492
ref: 92075A
DAMPER,MIRROR
€ 5.00
92075B
920751500
ref: 92075B
DAMPER,MIRROR
€ 5.50
92075C
92075174
ref: 92075C
DAMPER,MALE
€ 3.00
92075D
92075175
ref: 92075D
DAMPER,FEMALE
€ 2.50
130
130C0612
ref: 130
BOLT-FLANGED,6X12
€ 1.50
130A
130C0814
ref: 130A
BOLT-FLANGED
€ 2.50
130B
130C0825
ref: 130B
BOLT-FLANGED,8X25
€ 2.00
221
221C0630
ref: 221
SCREW-CSK-CROS,6X30
€ 1.00
