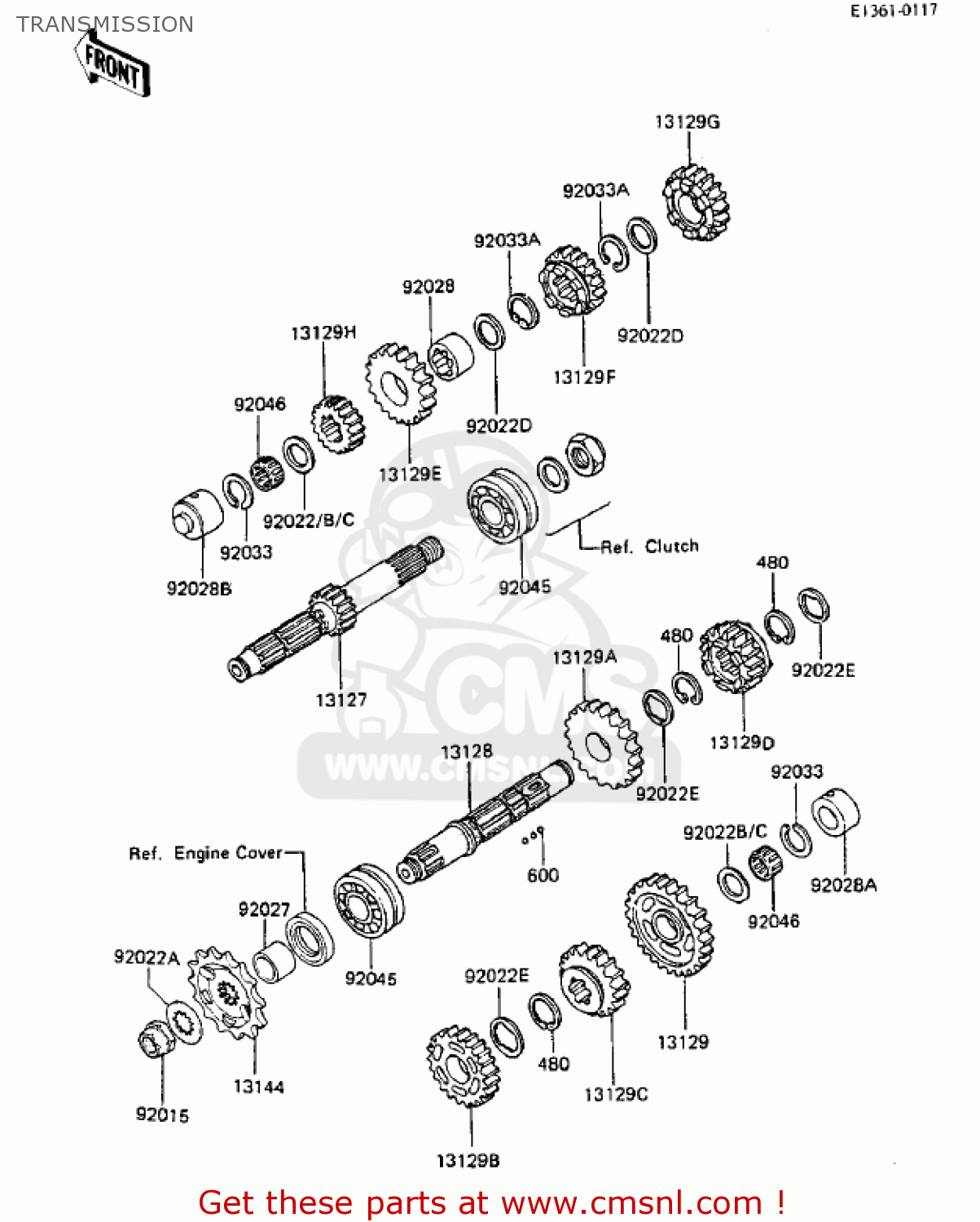

TRANSMISSION

ref

part #

description

quantity

13127

131271018
ref: 13127

SHAFT-TRANSMISSION IN

€ 232.50

13128

131281051
ref: 13128

SHAFT-TRANSMISSION OU

€ 154.50

13129

131291046
ref: 13129

GEAR,OUTPUT LOW,35T

€ 105.00

13129A

131291047
ref: 13129A

2ND GEAR,OUTPUT SHAFT

€ 107.00

13129B

131291048
ref: 13129B

3RD GEAR,OUTPUT SHAFT

€ 100.00

13129C

131291049
ref: 13129C

4TH GEAR,OUTPUT SHAFT

€ 107.00

13129D

131291201
ref: 13129D

GEAR,OUTPUT TOP,21T

€ 142.50

13129E

131291425
ref: 13129E

GEAR,INPUT TOP,24T

€ 151.50

13129F

132601202
ref: 13129F

GEAR,INPUT 3RD&22T

€ 84.50

13129G

131291446
ref: 13129G

GEAR,INPUT 4TH,25T

€ 70.50

13129H

13130041
ref: 13129H

2ND GEAR,DRIVE

€ 69.50

13144

131441084
ref: 13144

SPROCKET-OUTPUT,15T

€ 39.50

92015

920151254
ref: 92015

NUT,20MM

€ 10.50

92022

920221026
ref: 92022

WASHER,20.3X30X0.7,ST

€ 4.00

92022A

922001065
ref: 92022A

WASHER

€ 4.50

92022B

92022112
ref: 92022B

WASHER,20.5X30X1,STEE

€ 6.00

92022C

92022144
ref: 92022C

SHIM-KICK SHAFT

€ 4.50

92022D

92022161
ref: 92022D

WASHER-THRUST,25MM

€ 7.00

92022E

92024069
ref: 92022E

WASHER,TOOTHED,30.5X3

€ 3.50

92027

920271106
ref: 92027

COLLAR,25X32X23.5

€ 8.00

92028

920281007
ref: 92028

BUSHING,INPUT TOP GEA

€ 26.50

92028A

920281151
ref: 92028A

BUSHING,27X34X18.6

€ 19.00

92028B

920281199
ref: 92028B

BUSHING,INPUT SHAFT

€ 52.00

92033

92033015
ref: 92033

CIRCLIP

€ 2.50

92033A

92033026
ref: 92033A

CIRCLIP

€ 6.00

92045

92045035
ref: 92045

BEARING-BALL,83993SH2

€ 66.50

92046

920461045
ref: 92046

BEARING-NEEDLE,20V271

€ 25.00

480

480J3000
ref: 480

CIRCLIP-TYPE-C,30MM

€ 3.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50

all assemblies
