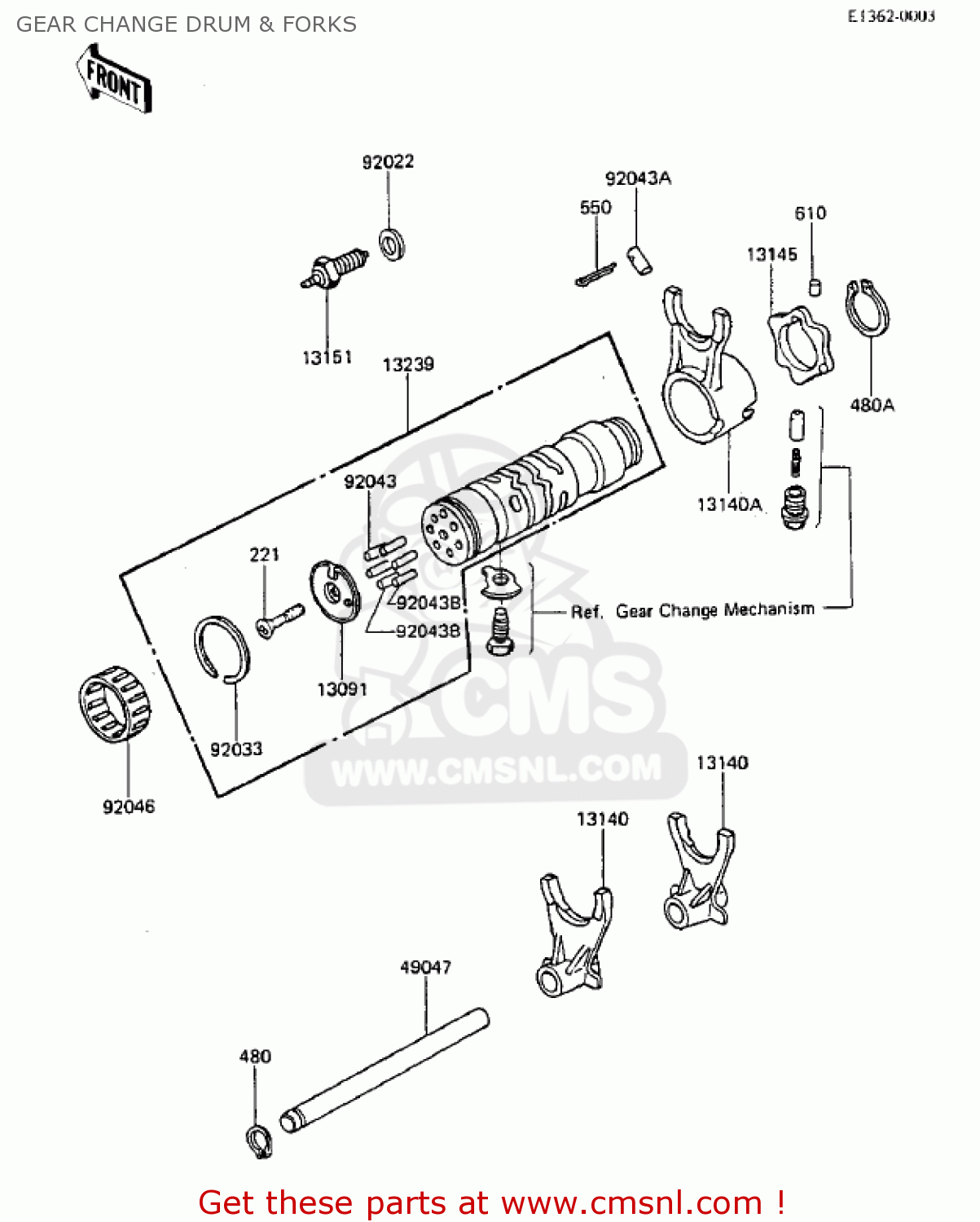

GEAR CHANGE DRUM & FORKS

ref

part #

description

quantity

13091

130911104
ref: 13091

HOLDER,CHANGE DRUM PI

€ 16.50

13140

131401008
ref: 13140

FORK-SHIFT,LOW,2ND&3R

€ 79.00

13140A

131401009
ref: 13140A

FORK-SHIFT,4TH&TOP

€ 79.00

13145

131451058
ref: 13145

CAM-CHANGE DRUM

€ 15.00

13151

131511007
ref: 13151

SWITCH,NEUTRAL

€ 9.00

13239

132391074
ref: 13239

DRUM-ASSY-CHANGE

€ 150.00

49047

490475003
ref: 49047

ROD-SHIFT

€ 21.50

92022

92065058
ref: 92022

GASKET, 10,5X16X1 (NAS)

€ 2.50

92033

92033035
ref: 92033

RING-SNAP,37MM

€ 4.00

92043

92042014
ref: 92043

PIN-GEAR CHANGE DRUM

€ 0.50

92043A

92042021
ref: 92043A

PIN,DOWEL,8X18

€ 7.00

92043B

92042030
ref: 92043B

PIN,GEAR CHNGE DRUM

€ 2.50

92046

92046051
ref: 92046

BEARING-NEEDLE,37BTM4

€ 23.00

221

221B0620
ref: 221

SCREW-CNTSNK HD,6X20

€ 0.50

480

480J1200
ref: 480

CIRCLIP-TYPE-C,12MM

€ 0.50

480A

480J3000
ref: 480A

CIRCLIP-TYPE-C,30MM

€ 3.50

550

550D3020
ref: 550

PIN-COTTER,3.0X20

€ 2.00

610

610A0406
ref: 610

ROLLER,4X6

€ 2.50
