HEADLIGHT (ZX750-A2)

ZX750A2 GPZ750 1984 USA CALIFORNIA CANADA

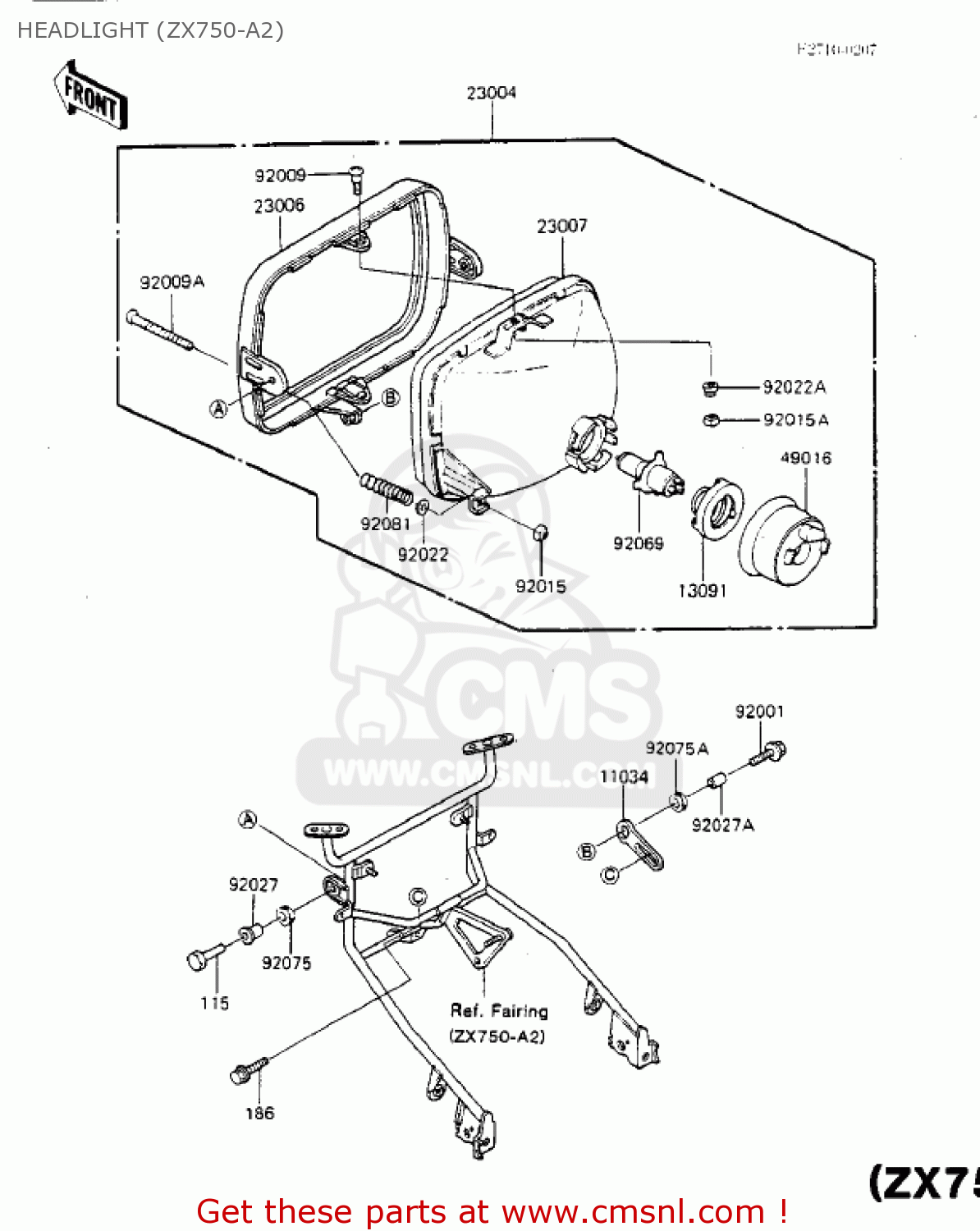

Headlight (zx750-a2) diagram ZX750A2 GPZ750 1984 USA CALIFORNIA CANADA

HEADLIGHT (ZX750-A2) ZX750A2 GPZ750 1984 USA CALIFORNIA CANADA
HEADLIGHT (ZX750-A2) ZX750A2 GPZ750 1984 USA CALIFORNIA CANADA
HEADLIGHT (ZX750-A2) ZX750A2 GPZ750 1984 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11034
23064022
ref: 11034
BRACKET,HEAD LAMP
23064022
€ 4.00
13091
130911036
ref: 13091
HOLDER,HEAD LAMP SOCK
130911036
€ 12.50
23004
230041151
ref: 23004
HEADLAMP
€ 302.00
23006
230061051
ref: 23006
RIM-LAMP
230061051
€ 56.50
23007
230071041
ref: 23007
LENS-COMP,HEAD LAMP
€ 201.50
49016
490161023
ref: 49016
COVER-SEAL,HEAD LAMP
490161023
€ 11.50
92001
920021262
ref: 92001
BOLT,6X22
920021262
€ 2.00
92009
23019023
ref: 92009
SCREW-PAN HEAD,5X12
23019023
€ 3.50
92009A
920091047
ref: 92009A
SCREW,HEAD LAMP LENS
920091047
€ 3.00
92015
23020018
ref: 92015
NUT,4MM,FOCUS ADJUST
23020018
€ 3.00
92015A
23020023
ref: 92015A
NUT,5MM
23020023
€ 3.00
92022
23021004
ref: 92022
WASHER,4.1X8X0.8
23021004
€ 2.00
92022A
23021012
ref: 92022A
WASHER
23021012
€ 3.00
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
920271134
€ 7.00
92027A
92027162
ref: 92027A
COLLAR-REAR FENDER
92027162
€ 4.50
92069
920691002
ref: 92069
BULB,12V-60155W
920691002
€ 15.00
92075
921601007
ref: 92075
DAMPER
921601007
€ 3.50
92075A
92075209
ref: 92075A
DAMPER RUBBER
92075209
€ 3.00
92081
920811103
ref: 92081
SPRING,HEAD LAMP LENS
920811103
€ 3.00
115
115G0825
ref: 115
BOLT-HEX,HEAD,8X25
115G0825
€ 3.00
186
186B0614
ref: 186
BOLT-UPSET-WP
€ 0.50
