FRAME FITTINGS

ZX750A2 GPZ750 1984 USA CALIFORNIA CANADA

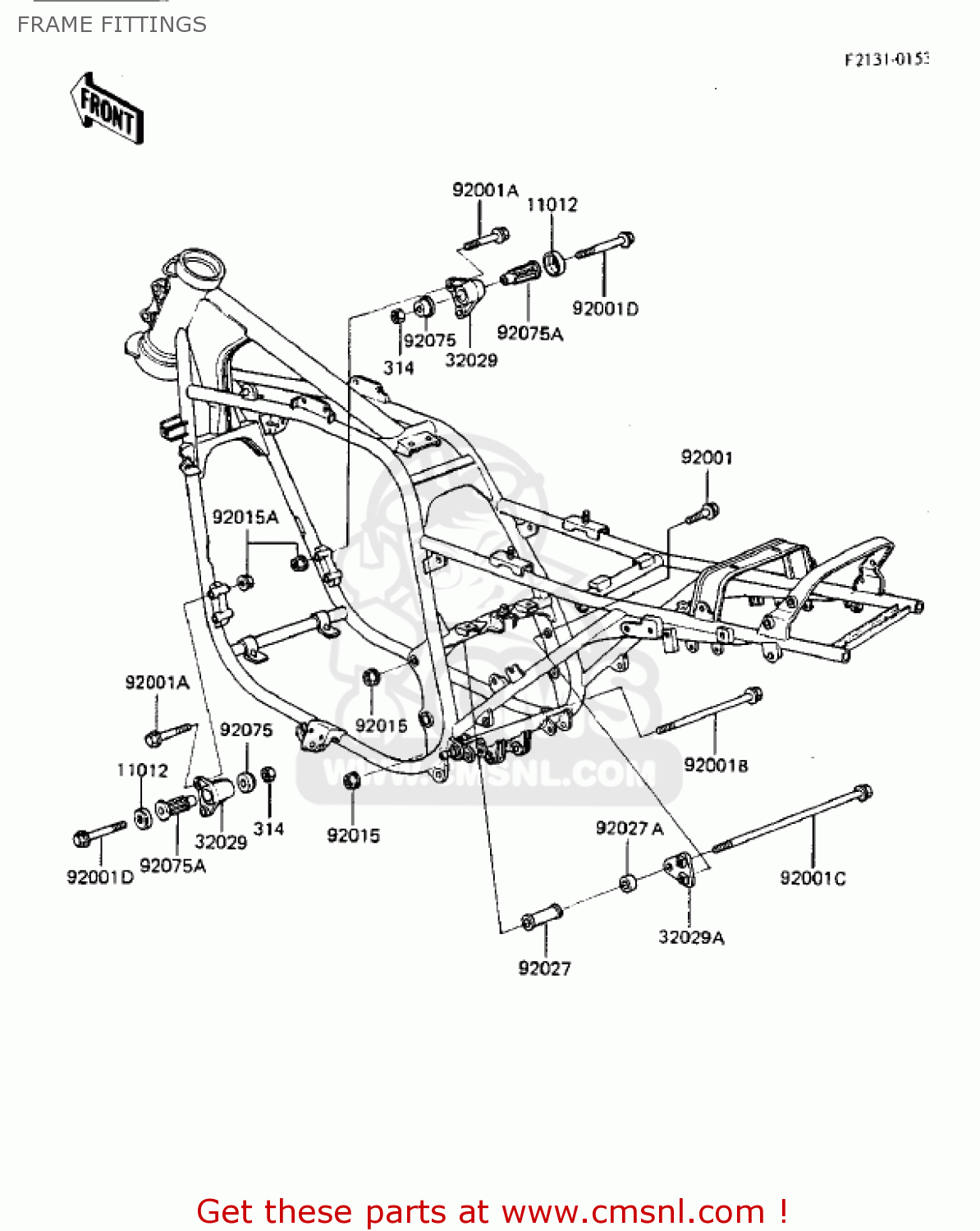

Frame fittings diagram ZX750A2 GPZ750 1984 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11012

110121228
ref: 11012

CAP,ENGINE BRACKET

€ 4.50

32029

320291254
ref: 32029

BRACKET-ENGINE,FR

€ 23.50

32029A

320291345
ref: 32029A

BRACKET-ENGINE,RR

€ 9.50

92001

920011615
ref: 92001

BOLT,FLANGED,8X60

€ 4.00

92001B

920011621
ref: 92001B

BOLT,FLANGED,10X180

€ 15.00

92001C

920011749
ref: 92001C

BOLT,FLANGED,10X125,B

€ 13.50

92001D

920011780
ref: 92001D

BOLT,FLANGED,10X115,B

€ 10.00

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92015A

920151408
ref: 92015A

NUT,FLANGED,8MM

€ 1.00

92027

920271570
ref: 92027

COLLAR,L=56.8

€ 12.50

92027A

920271571
ref: 92027A

COLLAR,11X26X12.3

€ 6.00

92075

920751274
ref: 92075

DAMPER,ENG MOUNT,SIDE

€ 11.00

92075A

920751377
ref: 92075A

DAMPER,ENGINE BRACKET

€ 19.50

314

314C1000
ref: 314

NUT-HEX-FINE,10MM,BLA

€ 2.50
