REAR SUSPENSION

ZX750A2 GPZ750 1984 USA CALIFORNIA CANADA

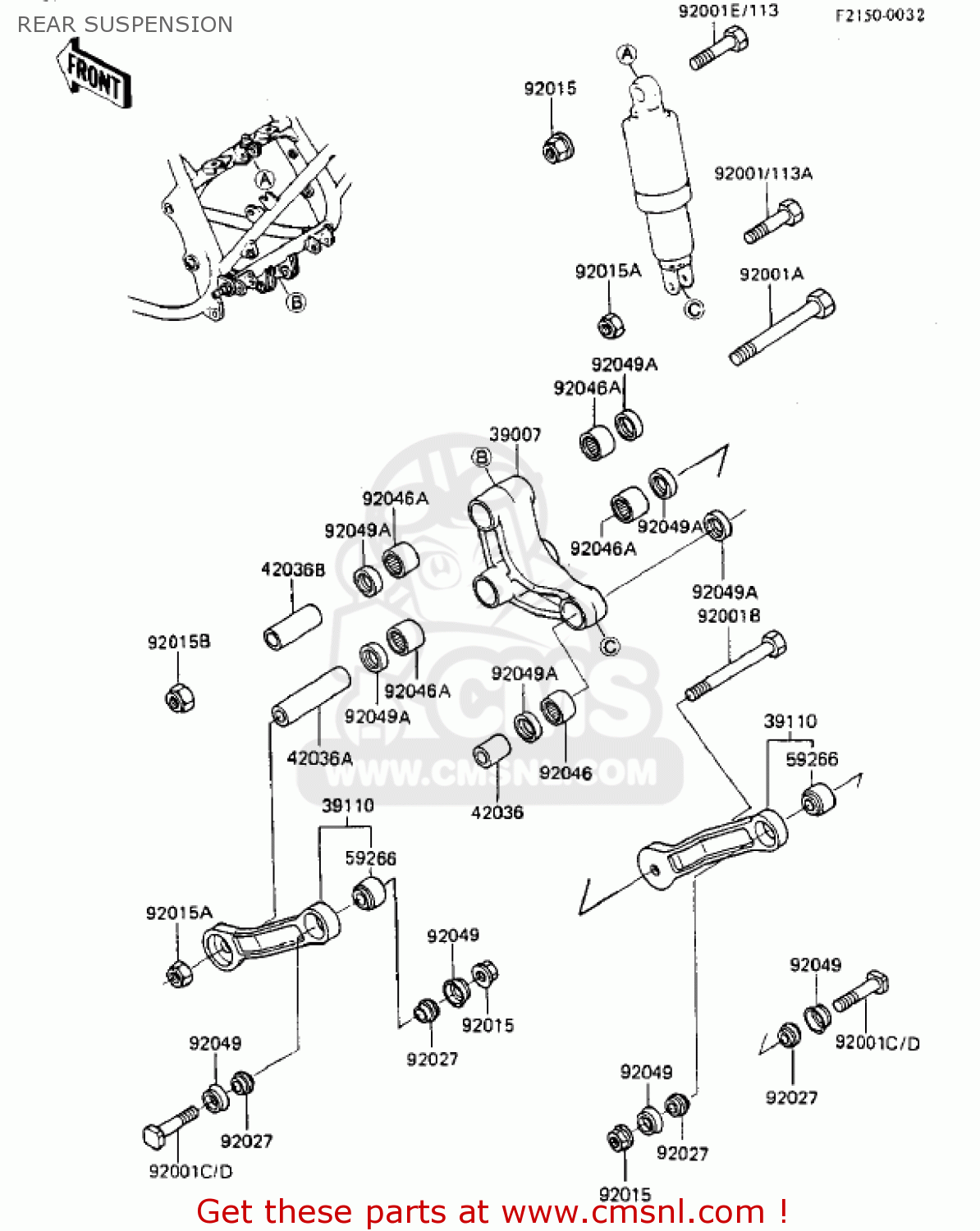

Rear suspension diagram ZX750A2 GPZ750 1984 USA CALIFORNIA CANADA

REAR SUSPENSION ZX750A2 GPZ750 1984 USA CALIFORNIA CANADA
REAR SUSPENSION ZX750A2 GPZ750 1984 USA CALIFORNIA CANADA
REAR SUSPENSION ZX750A2 GPZ750 1984 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
39007
390071026
ref: 39007
ARM-SUSP,UNI TRAK
390071026
€ 76.00
39110
391101017
ref: 39110
ROD-ASSY-TIE
391101017
€ 128.50
42036
420361072
ref: 42036
SLEEVE,12.1X20X26
420361072
€ 9.50
42036A
420361075
ref: 42036A
SLEEVE,12.1X20X84
420361075
€ 17.00
42036B
420361084
ref: 42036B
SLEEVE,14.1X20X55
420361084
€ 15.50
59266
592661051
ref: 59266
JOINT-BALL
592661051
€ 67.50
92001
920011497
ref: 92001
BOLT,12X55
920011497
€ 6.50
92001A
920011808
ref: 92001A
BOLT,14X108
920011808
€ 10.00
92001B
920011809
ref: 92001B
BOLT,12X106
920011809
€ 9.00
92001C
920011811
ref: 92001C
BOLT,10X45
920011811
€ 6.00
92001D
921501402
ref: 92001D
BOLT
921501402
€ 8.50
92001E
92003090
ref: 92001E
BOLT-HEX HEAD,10X50
€ 5.50
92015
920151415
ref: 92015
NUT,10MM
920151415
€ 3.00
92015
920151415
ref: 92015
NUT,10MM
920151415
€ 3.00
92015A
92019009
ref: 92015A
NUT,LOCK,12MM
92019009
€ 5.00
92015B
92019011
ref: 92015B
NUT,LOCK,14MM
92019011
€ 6.00
92027
920271392
ref: 92027
COLLAR,L=5.5
920271392
€ 3.50
92046
920461054
ref: 92046
BEARING-NEEDLE,HK2016
920461054
€ 20.00
92046A
920461061
ref: 92046A
BEARING-NEEDLE,FJ-202
920461061
€ 22.50
92049
920491083
ref: 92049
SEAL-OIL
920491083
€ 14.00
92049A
920491108
ref: 92049A
SEAL-OIL,GD20X26X4
920491108
€ 7.50
113
113P1045
ref: 113
BOLT-SMALL-FINE,10X45
€ 3.00
113A
113P1250
ref: 113A
BOLT-SMALL-FINE,12X50
113P1250
€ 4.00
