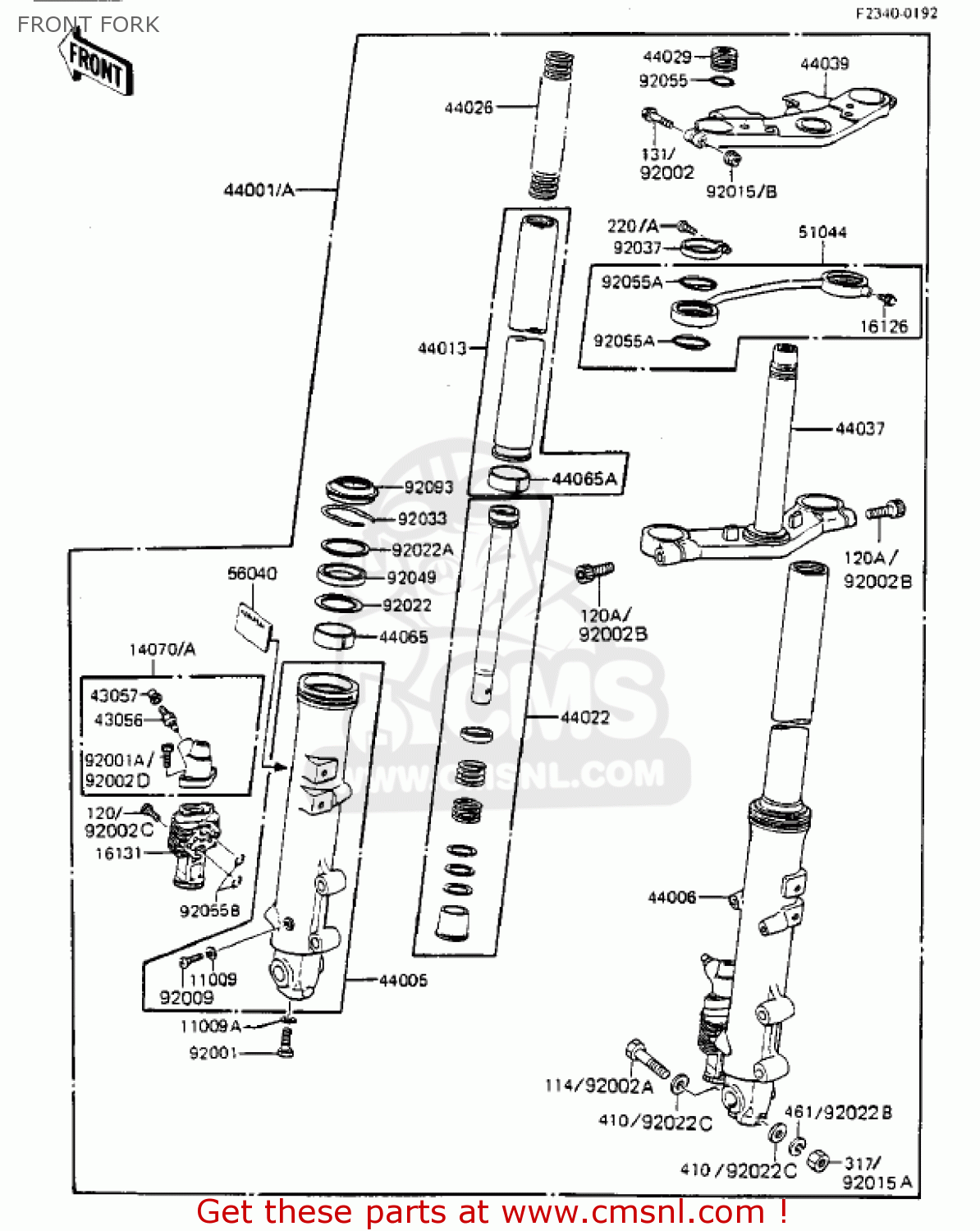

FRONT FORK

ref

part #

description

quantity

11009

44045002
ref: 11009

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

11009A

44045057
ref: 11009A

GASKET (NAS)

€ 3.00

14070

140701055
ref: 14070

BODY-BREATHER,FORK,AN

€ 157.00

14070A

140701055
ref: 14070A

BODY-BREATHER,FORK,AN

€ 157.00

16126

161261052
ref: 16126

VALVE,AIR

€ 22.00

16131

161311051
ref: 16131

BODY-VALVE,FORK,ANTI-

€ 161.00

43056

43056003
ref: 43056

BREATHER-BRAKE

€ 16.50

43057

43057003
ref: 43057

CAP-BREATHER

€ 3.00

44001

440011541
ref: 44001

FORK-FRONT

€ 1,702.50

44001A

440011541
ref: 44001A

FORK-FRONT

€ 1,702.50

44005

440051131
ref: 44005

PIPE-LEFT FORK OUTER

€ 285.00

44006

440061131
ref: 44006

PIPE-RIGHT FORK OUTER

€ 230.00

44013

440131202
ref: 44013

PIPE-FORK INNER

€ 178.50

44022

440221153
ref: 44022

CYLINDER-FORK

€ 62.50

44026

440261253
ref: 44026

SPRING-FRONT FORK

€ 51.00

44029

440291035
ref: 44029

SEAT-FORK SPRING

€ 16.50

44037

440371111
ref: 44037

HOLDER-FORK UNDER

€ 175.50

44039

440391073
ref: 44039

HOLDER-FORK UPPER

€ 197.50

44065

440651051
ref: 44065

BUSHING-FRONT FORK

€ 15.00

44065A

440651058
ref: 44065A

BUSHING-FRONT FORK,IN

€ 20.00

51044

510441027
ref: 51044

TUBE-ASSY

€ 94.00

56040

560401030
ref: 56040

LABEL-WARNING,FRONT F

€ 2.50

92001

44041040
ref: 92001

BOLT-FORK CYLINDER

€ 4.50

92001A

920011957
ref: 92001A

BOLT,SOCKET,5X12,BLAC

€ 2.00

92002

920021158
ref: 92002

BOLT,FLANGED,8X55

€ 6.00

92002A

920021163
ref: 92002A

BOLT,8X60

€ 5.50

92002B

920021164
ref: 92002B

BOLT,SOCKET,12X30

€ 8.50

92002C

920021166
ref: 92002C

BOLT,SOCKET,6X16

€ 4.50

92002D

920021289
ref: 92002D

BOLT,SOCKET,5X12

€ 2.50

92009

920091324
ref: 92009

SCREW,4X8

€ 2.50

92015

920151408
ref: 92015

NUT,FLANGED,8MM

€ 1.00

92015A

920151400
ref: 92015A

NUT,8MM

€ 3.00

92015B

920151408
ref: 92015B

NUT,FLANGED,8MM

€ 1.00

92022

920221455
ref: 92022

WASHER,FORK OUTER PIP

€ 4.50

92022A

920221456
ref: 92022A

WASHER,FORK OUTER PIP

€ 3.50

92022B

920221552
ref: 92022B

WASHER,SPRING,8MM

€ 2.50

92022C

920221554
ref: 92022C

WASHER,PLAIN,8MM

€ 3.00

92033

920331047
ref: 92033

SNAP RING,FORK OUTER

€ 4.00

92037

920371454
ref: 92037

CLAMP,FRONT FORK

€ 8.50

92049

920491372
ref: 92049

SEAL-OIL,FORK OUTER T

€ 15.00

92055

920551132
ref: 92055

RING-O,FORK SPRING SE

€ 4.00

92055A

920551164
ref: 92055A

RING-O,TUBE ASSY

€ 5.50

92055B

920551201
ref: 92055B

RING-O,AND

€ 1.00

92093

920931151
ref: 92093

SEAL,FORK

€ 16.50

114

115J0860
ref: 114

BOLT-SMALL-UPSET,8X60

€ 2.50

120

120S0616
ref: 120

BOLT-SOCKET,6X16

€ 1.00

120A

120S1230
ref: 120A

BOLT-SOCKET,12X30

€ 3.50

131

131J0855
ref: 131

BOLT-FLANGED,8X55,BLA

€ 2.50

220

220B0414
ref: 220

SCREW-PAN-CROS

€ 2.00

220A

220C0412
ref: 220A

SCREW-PAN-CROS

€ 1.50

317

317J0800
ref: 317

NUT-HEX-SMALL,8MM,BLA

€ 2.50

410

920221554
ref: 410

WASHER,PLAIN,8MM

€ 3.00

461

461K0800
ref: 461

WASHER-SPRING,8MM,BLA

€ 1.50
