SWINGARM

ZX636D6F ZX6R 2006 USA CALIFORNIA CANADA

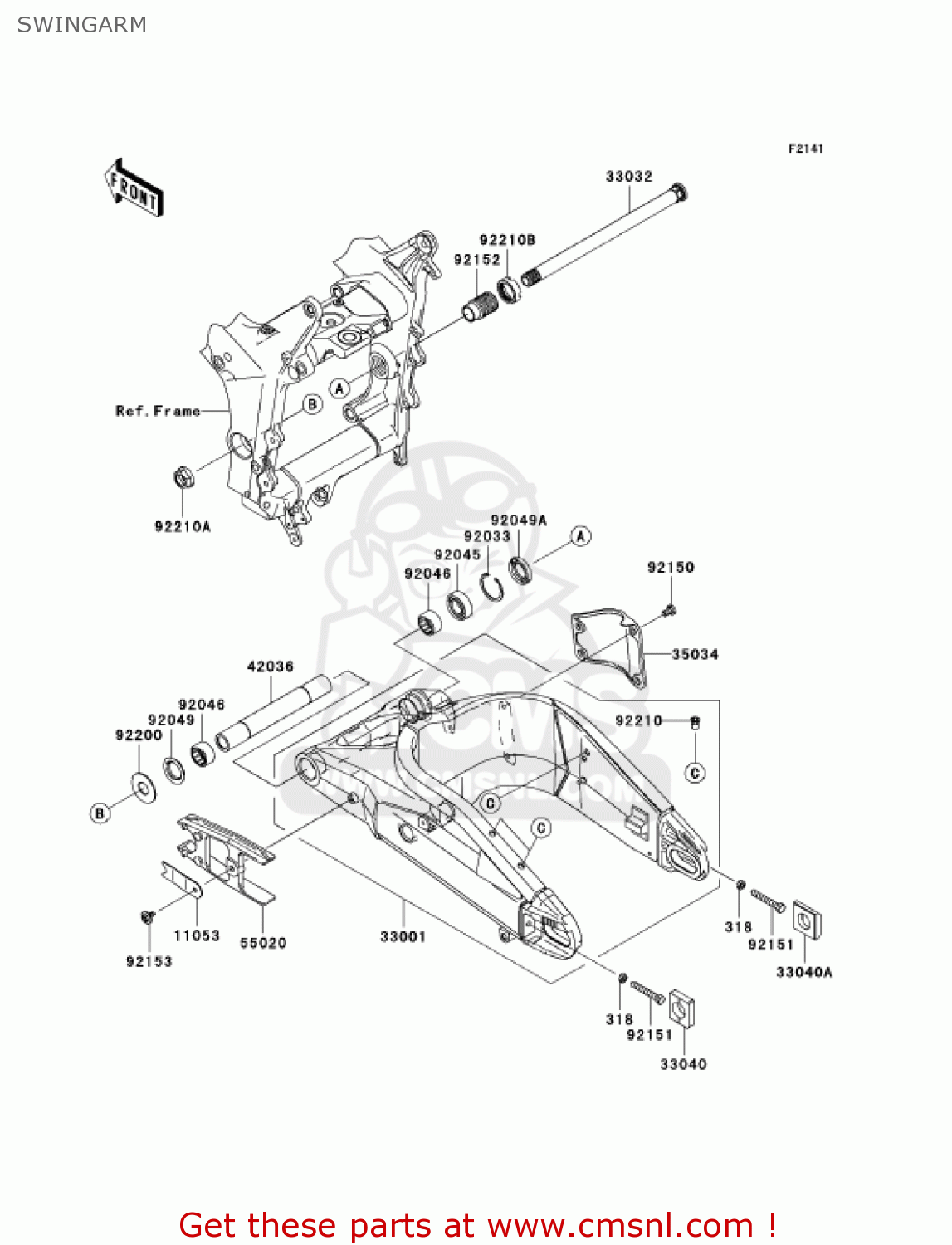

Swingarm diagram ZX636D6F ZX6R 2006 USA CALIFORNIA CANADA

SWINGARM ZX636D6F ZX6R 2006 USA CALIFORNIA CANADA
SWINGARM ZX636D6F ZX6R 2006 USA CALIFORNIA CANADA
SWINGARM ZX636D6F ZX6R 2006 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
318
318G0800
ref: 318
NUT-HEX-SMALL,8MM
318G0800
€ 1.00
11053
110531691
ref: 11053
BRACKET,CHAIN GUARD
€ 4.00
33001
3300100438F
ref: 33001
ARM-COMP-SWING,F.S.BL
€ 981.00
33032
330320010
ref: 33032
SHAFT-SWING ARM
€ 73.00
33040
330401114
ref: 33040
ADJUSTER-CHAIN
330401114
€ 13.50
33040A
330401180
ref: 33040A
ADJUSTER-CHAIN,RH
330401180
€ 16.50
35034
3503400538F
ref: 35034
REINFORCE,MUFFLER GUA
3503400538F
€ 31.50
42036
420361283
ref: 42036
SLEEVE,SWING ARM,L=21
420361283
€ 62.00
55020
550200111
ref: 55020
GUARD,CHAIN
550200111
€ 48.00
92033
920331041
ref: 92033
CIRCLIP,42MM
920331041
€ 4.00
92045
920450017
ref: 92045
BEARING-BALL,6004UL11
920450017
€ 14.00
92046
920460008
ref: 92046
BEARING-NEEDLE,7E-HVS
920460008
€ 21.00
92049
920491181
ref: 92049
SEAL-OIL
920491181
€ 7.50
92049A
920491314
ref: 92049A
SEAL-OIL,MHSA25 42 6
920491314
€ 9.00
92150
921501852
ref: 92150
BOLT,DISC PLATE,8X15
921501852
€ 3.00
92151
921511578
ref: 92151
BOLT,8X55
€ 1.50
92152
921520154
ref: 92152
COLLAR,SWING ARM,L=12
921520154
€ 29.50
92153
921531003
ref: 92153
BOLT,6X16
921531003
€ 1.50
92200
922001167
ref: 92200
WASHER,20.3X48X2.3
922001167
€ 8.00
92210
922100099
ref: 92210
NUT,6MM
922100099
€ 3.50
92210A
922100106
ref: 92210A
NUT,FLANGED,20MM
€ 9.00
92210B
922100134
ref: 92210B
NUT,30MM
922100134
€ 20.50
