FUEL TANK
ZX636D6F ZX6R 2006 USA CALIFORNIA CANADA

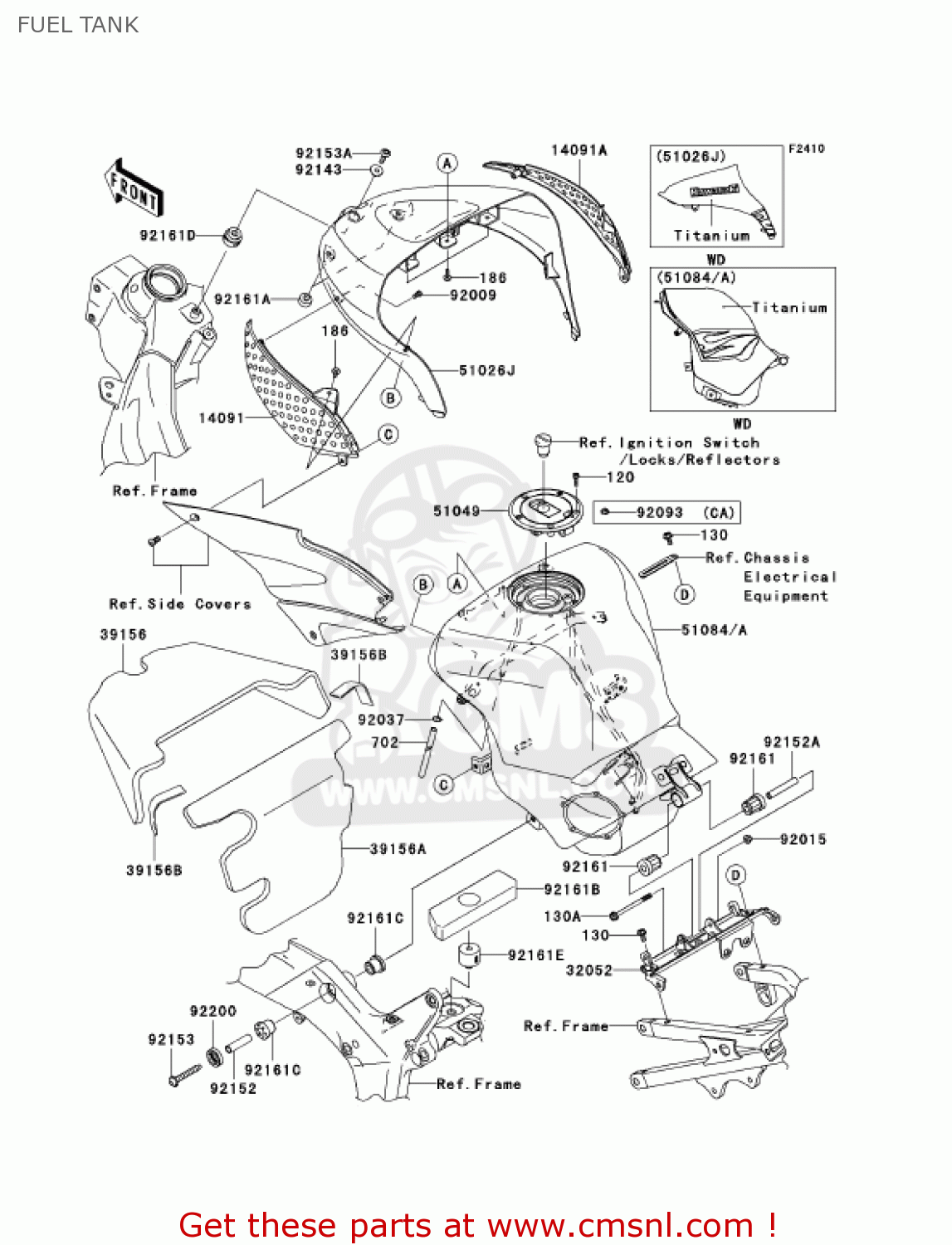

Fuel tank diagram ZX636D6F ZX6R 2006 USA CALIFORNIA CANADA
FUEL TANK ZX636D6F ZX6R 2006 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
14091
140910324
ref: 14091
COVER,KNEE GRIP,LH
€ 16.00
14091A
140910325
ref: 14091A
COVER,KNEE GRIP,RH
€ 19.00
32052
320520033
ref: 32052
BRACKET-TANK
€ 46.00
39156
391560079
ref: 39156
PAD,FUEL TANK COVER
€ 22.50
39156A
391560080
ref: 39156A
PAD,FUEL TANK
€ 17.00
39156B
391560096
ref: 39156B
PAD,FUEL TANK COVER
€ 2.00
51026J
510265040740
ref: 51026J
COVER TANK,M.TITANIUM
€ 301.50
51049
510490010
ref: 51049
CAP-TANK,FUEL
€ 87.00
51084
510845091740
ref: 51084
[CN,US
TANK-COMP-FUEL,M.TITA
€ 529.00
51084A
510845092740
ref: 51084A
[CA]
TANK-COMP-FUEL,M.TITA
€ 529.00
92009
920091319
ref: 92009
SCREW,TAPPING,5X12
€ 1.00
92015
920151675
ref: 92015
NUT
€ 2.50
92037
92037010
ref: 92037
CLAMP-FUEL PIPE
€ 2.50
92093
920931030
ref: 92093
[CA]
OIL SEAL,FUEL TANK CA
€ 5.00
92143
921431016
ref: 92143
COLLAR,L=9.6
€ 4.00
92152
921520271
ref: 92152
COLLAR,8.8X12X46.5
€ 3.00
92152A
921521182
ref: 92152A
COLLAR,6.8X10X60
€ 3.50
92153
921530879
ref: 92153
BOLT,SOCKET,8X65
€ 7.00
92153A
921531267
ref: 92153A
BOLT,SOCKET,6X23
€ 2.00
92161
921610207
ref: 92161
DAMPER,FUEL TANK,RR
€ 2.50
92161A
921610223
ref: 92161A
DAMPER
€ 3.00
92161B
921610262
ref: 92161B
DAMPER
€ 13.00
120
120S0516
ref: 120
BOLT-SOCKET
€ 0.50
130
130H0614
ref: 130
BOLT-FLANGED,6X14
€ 0.50
130A
130H0680
ref: 130A
BOLT-FLANGED
€ 1.00
186
186H0514
ref: 186
BOLT-UPSET-WP
€ 1.50
702
702A06850
ref: 702
TUBE-RUBBER,6X850
€ 12.50
92161C
921610274
ref: 92161C
DAMPER,FUEL TANK,SIDE
€ 3.00
92161D
921610287
ref: 92161D
DAMPER
€ 3.00
92161E
921611116
ref: 92161E
DAMPER
€ 6.50
92200
922000197
ref: 92200
WASHER,FUEL TANK,SIDE
€ 12.00
