FRONT FORK
ZX636D6F ZX6R 2006 USA CALIFORNIA CANADA

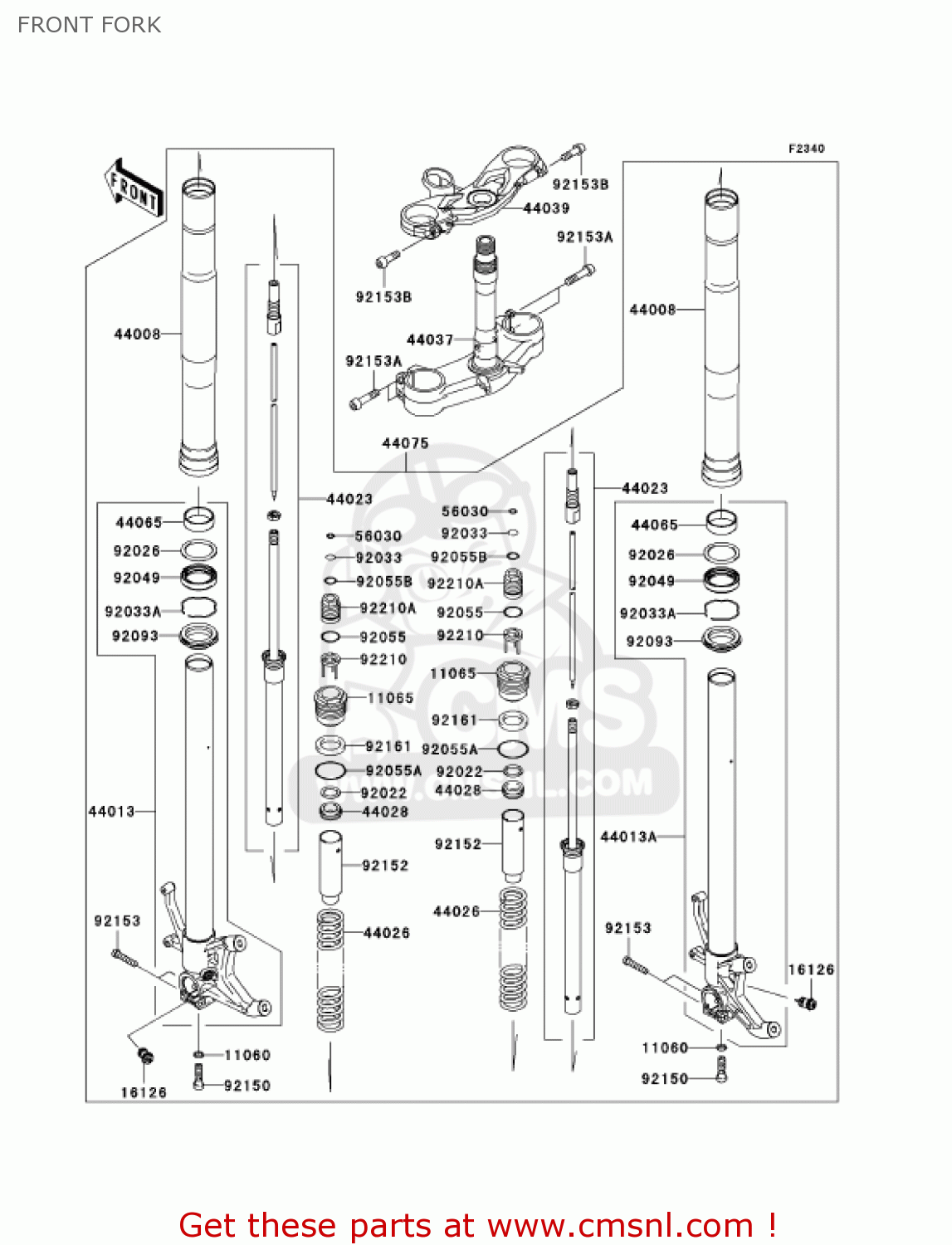

Front fork diagram ZX636D6F ZX6R 2006 USA CALIFORNIA CANADA
FRONT FORK ZX636D6F ZX6R 2006 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
11060
110601180
ref: 11060
GASKET,FORK CYLINDER (NAS)
€ 2.50
11065
110650137
ref: 11065
CAP,FORK BOLT
€ 32.50
16126
161260021
ref: 16126
VALVE,PLUG BOLT
€ 106.00
44008
440080019
ref: 44008
PIPE-FORK OUTER
€ 577.00
44013
440130045
ref: 44013
PIPE-FORK INNER,LH
€ 359.50
44013A
440130046
ref: 44013A
PIPE-FORK INNER,RH
€ 359.50
44023
440230020
ref: 44023
CYLINDER-SET-FORK
€ 403.50
44026
440260051
ref: 44026
SPRING-FRONT FORK
€ 56.00
44028
440281083
ref: 44028
GUIDE-FORK SPRING
€ 7.00
44037
440370020
ref: 44037
HOLDER-FORK UNDER
€ 636.50
44039
440390018
ref: 44039
HOLDER-FORK UPPER
€ 283.00
44065
440650001
ref: 44065
BUSHING-FRONT FORK
€ 14.00
44075
440750098
ref: 44075
DAMPER-SET-FORK
€ 1,396.50
56030
560300006
ref: 56030
LABEL
€ 4.50
92022
920221713
ref: 92022
WASHER,SPRING SEAT
€ 8.00
92026
920260070
ref: 92026
SPACER
€ 8.00
92033
920330002
ref: 92033
RING-SNAP
€ 3.50
92033A
920331222
ref: 92033A
RING-SNAP,FORK OUTER
€ 4.00
92049
920490058
ref: 92049
SEAL-OIL
€ 17.50
92055
920550003
ref: 92055
RING-O
€ 3.50
92055A
920551497
ref: 92055A
RING-O,FORK CAP
€ 4.00
92055B
920551498
ref: 92055B
RING-O,FORK VALVE
€ 1.00
92093
920931268
ref: 92093
SEAL,FORK
€ 16.50
92150
921501514
ref: 92150
BOLT,FORK CYLINDER
€ 4.50
92152
921520263
ref: 92152
COLLAR
€ 11.50
92153
921530853
ref: 92153
BOLT
€ 5.00
92153A
921530854
ref: 92153A
BOLT
€ 5.00
92153B
921530855
ref: 92153B
BOLT
€ 4.00
92161
921610006
ref: 92161
DAMPER
€ 4.00
92210
922100019
ref: 92210
SPRING ADJUST PLATE
€ 14.50
92210A
922100254
ref: 92210A
NUT,SPRING ADJUSTER
€ 13.50
