CLUTCH
ZX636D6F ZX6R 2006 USA CALIFORNIA CANADA

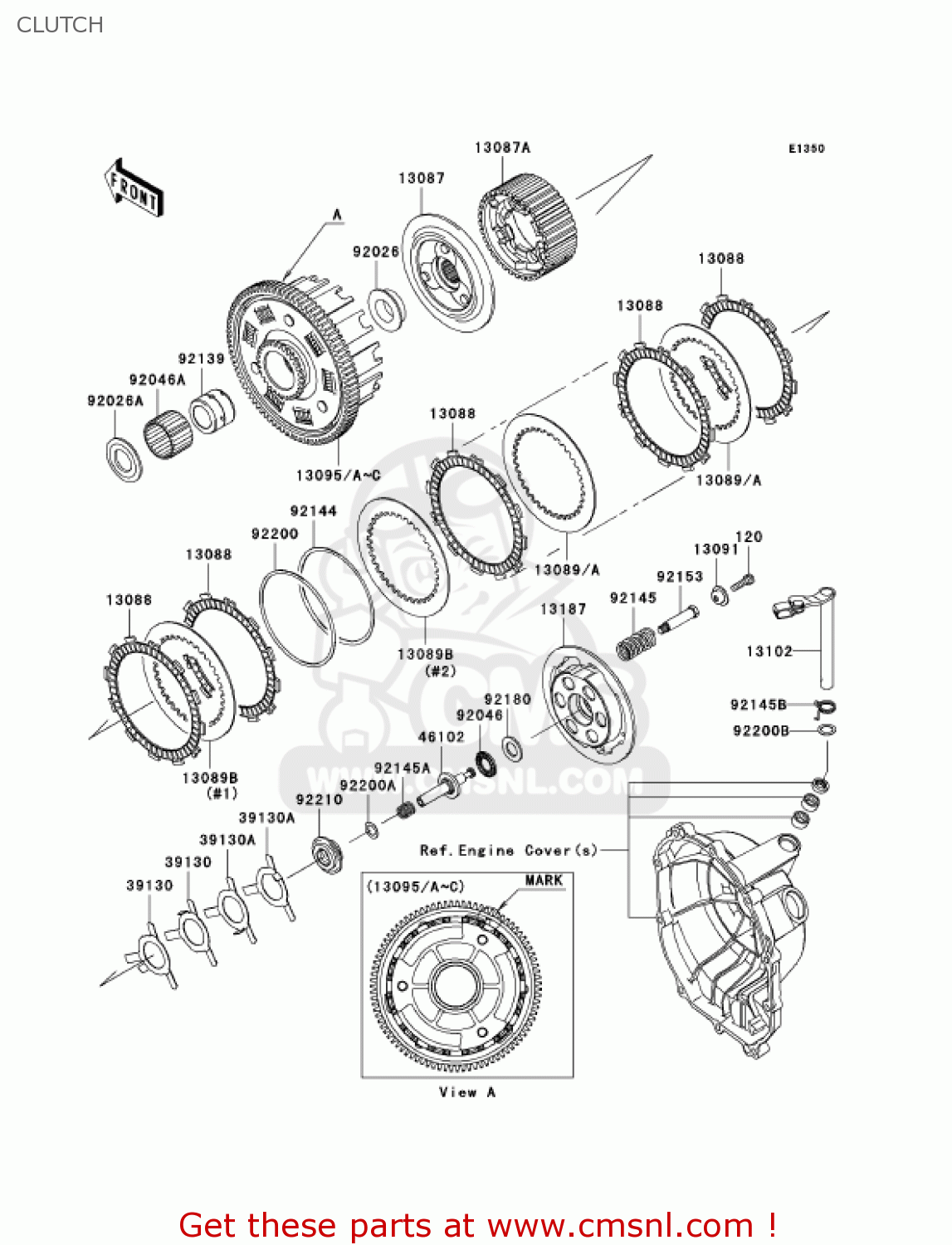

Clutch diagram ZX636D6F ZX6R 2006 USA CALIFORNIA CANADA
CLUTCH ZX636D6F ZX6R 2006 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
120
120Q0620
ref: 120
BOLT,SOCKET,6X20
€ 1.00
13087
130870019
ref: 13087
HUB-CLUTCH
€ 120.50
13087A
130870020
ref: 13087A
HUB-CLUTCH
€ 180.50
13088
130881124
ref: 13088
PLATE-FRICTION (NAS)
€ 17.00
13089
130890007
ref: 13089
PLATE-CLUTCH,T=2.0 (NAS)
€ 8.50
13089A
130890008
ref: 13089A
PLATE-CLUTCH,T=2.3 (NAS)
€ 8.50
13089B
130890009
ref: 13089B
PLATE-CLUTCH,T=2.6 (NAS)
€ 8.50
13091
130911041
ref: 13091
HOLDER CLUTCH SPRING
€ 8.50
13095
130950042
ref: 13095
HOUSING-COMP-CLUTCH,N
€ 446.50
13095A
130950044
ref: 13095A
HOUSING-COMP-CLUTCH,"
€ 446.50
13095B
130950045
ref: 13095B
HOUSING-COMP-CLUTCH,"
€ 446.50
13095C
130950046
ref: 13095C
HOUSING-COMP-CLUTCH,"
€ 446.50
13102
131020015
ref: 13102
RELEASE-COMP-CLUTCH
€ 49.00
13187
131870008
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 65.50
39130
391301078
ref: 39130
SPRING-LEAF
€ 7.00
39130A
391301079
ref: 39130A
SPRING-LEAF
€ 7.00
46102
461020051
ref: 46102
ROD
€ 24.50
92026
920260022
ref: 92026
SPACER
€ 14.00
92026A
920261356
ref: 92026A
SPACER
€ 8.50
92046
920461052
ref: 92046
BEARING-NEEDLE,AXK110
€ 14.00
92046A
920461263
ref: 92046A
BEARING-NEEDLE,K38X43
€ 27.00
92139
921390067
ref: 92139
BUSHING
€ 29.00
92144
921441854
ref: 92144
SPRING,FRICTION PLATE
€ 7.00
92145
921450293
ref: 92145
SPRING
€ 2.50
92145A
921451159
ref: 92145A
SPRING,ROD
€ 1.50
92145B
921451339
ref: 92145B
SPRING
€ 3.00
92153
921530797
ref: 92153
BOLT
€ 7.50
92180
921800149
ref: 92180
SHIM,15.3X27.5X2.0
€ 2.50
92200
922001260
ref: 92200
WASHER,FRICTION PLATE
€ 7.00
92200A
922001423
ref: 92200A
WASHER,11.2X18X0.5
€ 1.50
92200B
922001487
ref: 92200B
WASHER,12X18.5X0.5
€ 1.50
92210
922100152
ref: 92210
NUT
€ 7.50
