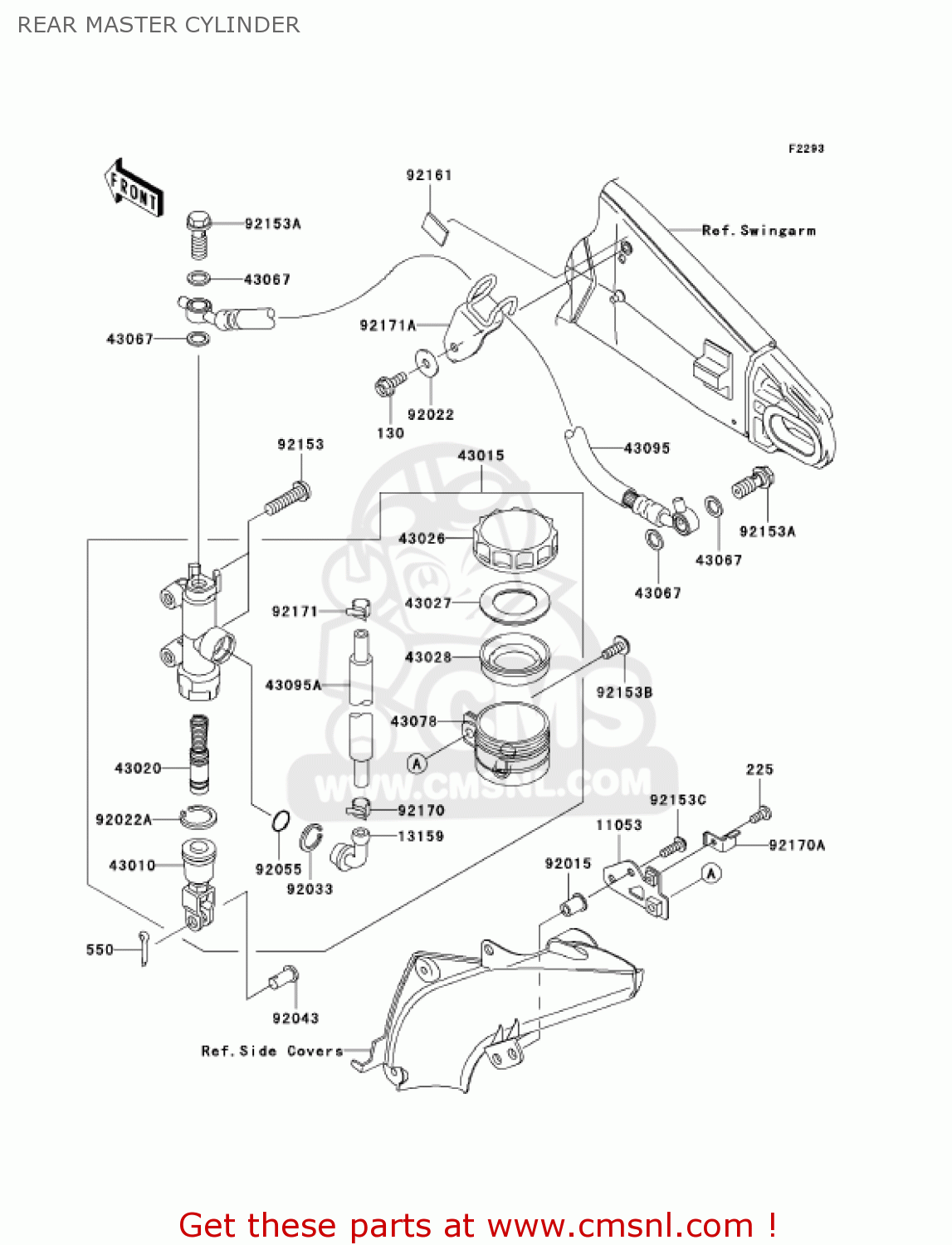

REAR MASTER CYLINDER

ref

part #

description

quantity

130

130L0616
ref: 130

BOLT-FLANGED

€ 1.50

225

225F0412
ref: 225

SCREW-PAN-WSP-CROS

€ 2.00

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

11053

110531398
ref: 11053

BRACKET,RESERVOIR TAN

€ 6.50

13159

131591056
ref: 13159

CONNECTOR

€ 9.50

43010

430101062
ref: 43010

ROD-ASSY-BRAKE

€ 38.50

43015

430150033
ref: 43015

CYLINDER-ASSY-MASTER,

€ 334.00

43020

430201094
ref: 43020

PISTON-COMP, BRAKE

€ 47.50

43026

430261051
ref: 43026

CAP-BRAKE, RR

€ 25.00

43027

430271051
ref: 43027

PLATE-DIAPHRAGM

€ 4.00

43028

430281057
ref: 43028

DIAPHRAGM

€ 13.00

43067

43067001
ref: 43067

WASHER,10.5X15X1.5

€ 1.50

43078

430781165
ref: 43078

RESERVOIR,RR MASTER C

€ 20.00

43095

430950070
ref: 43095

HOSE-BRAKE,RR

€ 72.50

43095A

430950170
ref: 43095A

HOSE-BRAKE,RR MASTER

€ 36.00

92015

920151757A
ref: 92015

NUT,5MM

€ 5.00

92022

920221346
ref: 92022

WASHER,6.5X20X1.6,BLA

€ 0.50

92022A

920221601
ref: 92022A

WASHER,CIRCRIP

€ 5.00

92033

920331186
ref: 92033

RING-SNAP,20.5MM

€ 3.00

92043

920431303
ref: 92043

PIN,8MM

€ 2.50

92055

920551251
ref: 92055

RING-O,MASTER CYLINDE

€ 2.50

92153

921530393
ref: 92153

BOLT,SOCKET,8X30

€ 2.50

92153A

921530627
ref: 92153A

BOLT,OIL,L=23

€ 3.50

92153B

921530817
ref: 92153B

BOLT,6X16

€ 1.50

92153C

921531244
ref: 92153C

BOLT,SOCKET,5X16

€ 1.50

92161

921610273
ref: 92161

DAMPER

€ 1.00

92170

921701091
ref: 92170

CLAMP,HOSE

€ 3.00

92170A

921701879
ref: 92170A

CLAMP,RESERVOIR TANK

€ 2.50

92171

921710463
ref: 92171

CLAMP,HOSE

€ 4.00

92171A

921710480
ref: 92171A

CLAMP,BRAKE HOSE

€ 13.00
