Genuine ZX Kawasaki Parts delivered quickly!


STARTER MOTOR

ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST

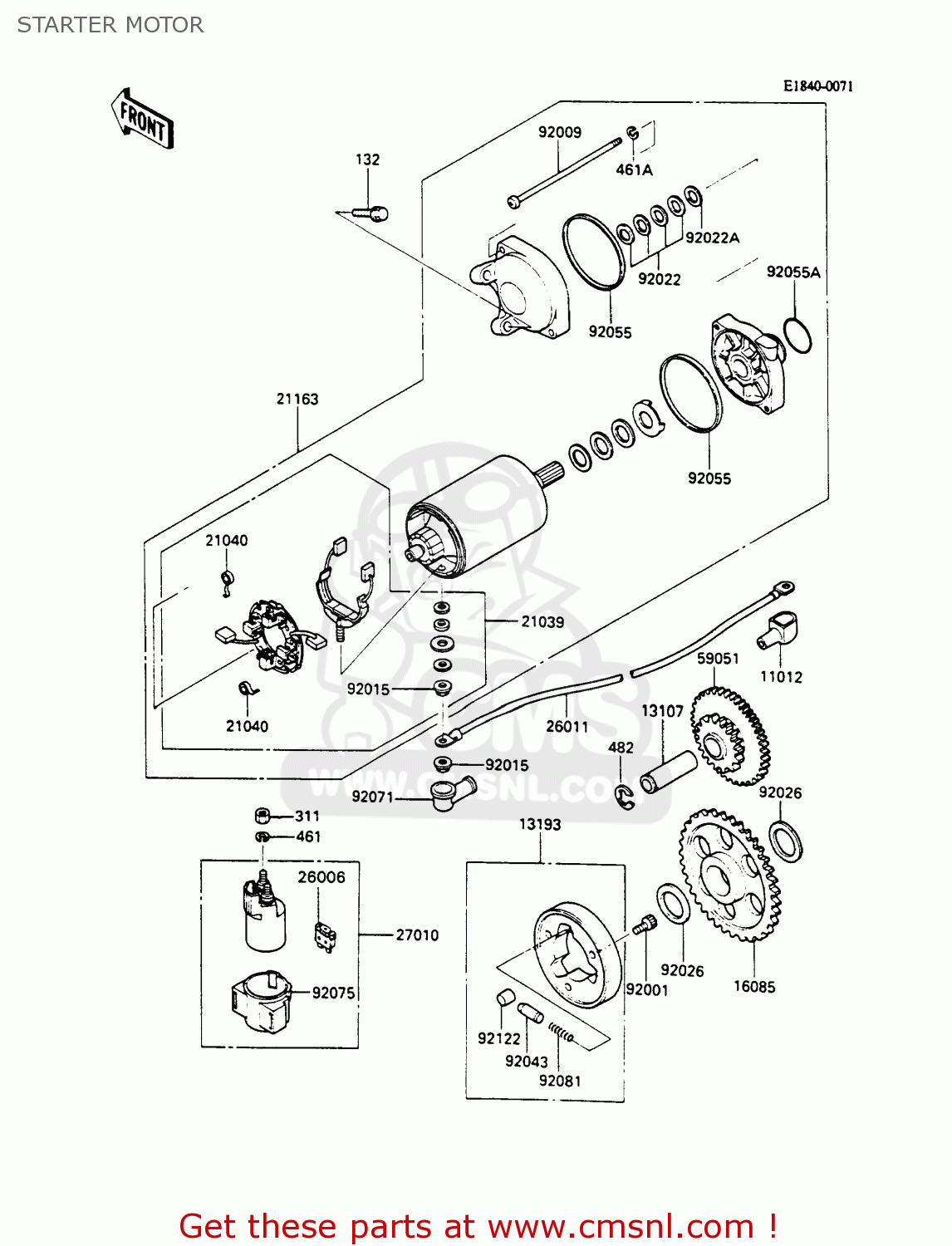

Starter motor diagram ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST

STARTER MOTOR ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST
STARTER MOTOR ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST
STARTER MOTOR ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
132
132J0625
ref: 132
BOLT-FLANGED-SMALL
132J0625
€ 2.50
311
311B0600
ref: 311
NUT,6MM
311B0600
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
461F0600
€ 0.50
461A
461K0500
ref: 461A
WASHER-SPRING,5MM,BLA
461K0500
€ 0.50
482
482J0300
ref: 482
CIRCLIP-TYPE-E
€ 2.00
11012
110121354
ref: 11012
CAP,TERMINAL
110121354
€ 7.00
13107
131071144
ref: 13107
SHAFT,IDLE GEAR
€ 10.00
13193
131931002
ref: 13193
CLUTCH-ASSY-ONEWAY
131931002
€ 96.00
16085
160851030
ref: 16085
GEAR,ONEWAY CLUTCH
160851030
€ 97.50
21039
210391053
ref: 21039
BRUSH,CARBON
210391053
€ 89.50
21040
210401003
ref: 21040
SPRING-BRUSH
210401003
€ 6.00
21163
211631072
ref: 21163
STARTER-ELECTRIC
€ 199.00
26006
260061006
ref: 26006
FUSE,30A-G
260061006
€ 3.00
26011
260111251
ref: 26011
WIRE-LEAD,STARTER MOT
€ 55.50
27010
270101213
ref: 27010
SWITCH,MAGNETIC
270101213
€ 111.00
59051
590511138
ref: 59051
GEAR-SPUR,IDLE
€ 99.50
92001
920011424
ref: 92001
BOLT,SOCKET,8X10
920011424
€ 3.00
92009
920091397
ref: 92009
SCREW
€ 4.50
92015
920151476
ref: 92015
NUT,6MM
920151476
€ 2.50
92022
21025011
ref: 92022
WASHER, THRUST, 0.2T
21025011
€ 4.00
92022A
920221132
ref: 92022A
WASHER,9.1X18X0.8
920221132
€ 4.00
92026
920261025
ref: 92026
SPACER,25X36X3.2
920261025
€ 3.50
92043
92043132
ref: 92043
PIN
92043132
€ 4.00
92055
920551086
ref: 92055
O RING,64MM
920551086
€ 6.50
92055A
920551276
ref: 92055A
RING-O
920551276
€ 6.50
92071
21017017
ref: 92071
GROMMET-CORD
21017017
€ 6.50
92075
920751863
ref: 92075
DAMPER,MAGNETIC SWITC
920751863
€ 14.00
92081
92081159
ref: 92081
SPRING, COIL
92081159
€ 2.50
92122
92122006
ref: 92122
ROLLER
92122006
€ 4.00
