Genuine ZX Kawasaki Parts delivered quickly!


CYLINDER/PISTON(S)

ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST

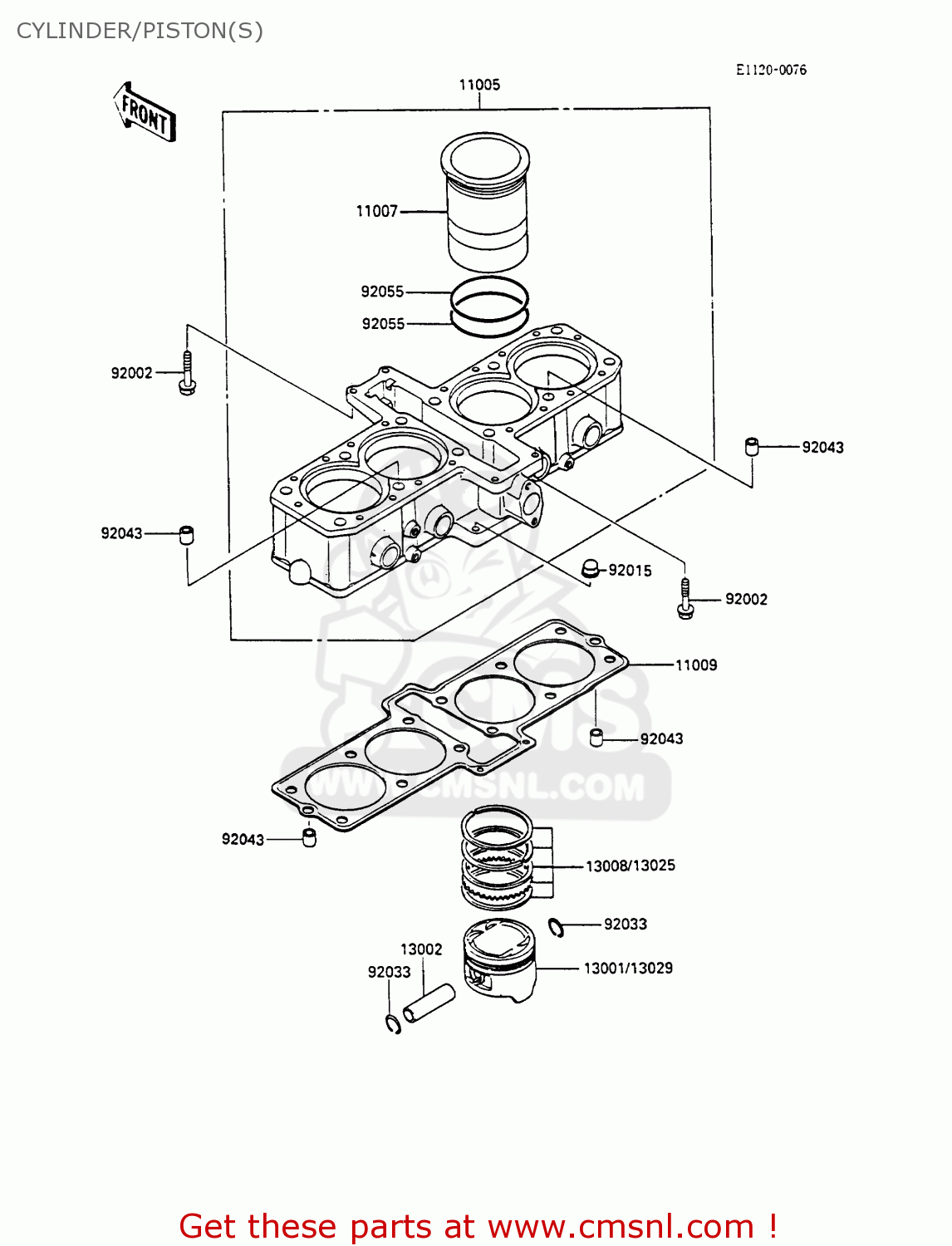

Cylinder/piston(s) diagram ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST

CYLINDER/PISTON(S) ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST
CYLINDER/PISTON(S) ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST
CYLINDER/PISTON(S) ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11005
110051493
ref: 11005
CYLINDER-ENGINE
€ 972.50
11007
110071086
ref: 11007
LINER-CYLINDER
110071086
€ 92.50
11009
110091578
ref: 11009
GASKET,CYLINDER BASE (NAS)
110091578
€ 22.00
13001
130011254
ref: 13001
PISTON-ENGINE,STD
130011254
€ 58.00
13002
130021003
ref: 13002
PIN-PISTON
130021003
€ 16.50
13008
130081088
ref: 13008
RING-SET-PISTON,STD
130081088
€ 49.00
13025
130251086
ref: 13025
RING-SET-PISTON L,O/S
130251086
€ 47.50
13029
130291164
ref: 13029
PISTON-ENGINE L,O/S 0
130291164
€ 45.50
92002
920021104
ref: 92002
BOLT,6X28
920021104
€ 3.50
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
920151170
€ 0.50
92033
920331161
ref: 92033
RING-SNAP,PISTON PIN
920331161
€ 2.50
92043
920431264
ref: 92043
PIN,DOWEL,8.2X10X14
920431264
€ 0.50
92055
920551287
ref: 92055
RING-O,66.5MM
920551287
€ 4.00
